Department of Information Engineering, Università Politecnica delle Marche, 60131 Ancona, Italy.
Transport for NSW Alexandria, Haymarket, NSW 2008, Australia.
Sensors (Basel). 2024 Sep 8;24(17):5828. doi: 10.3390/s24175828.

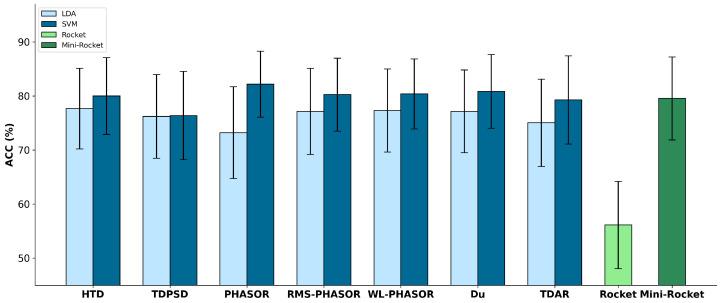

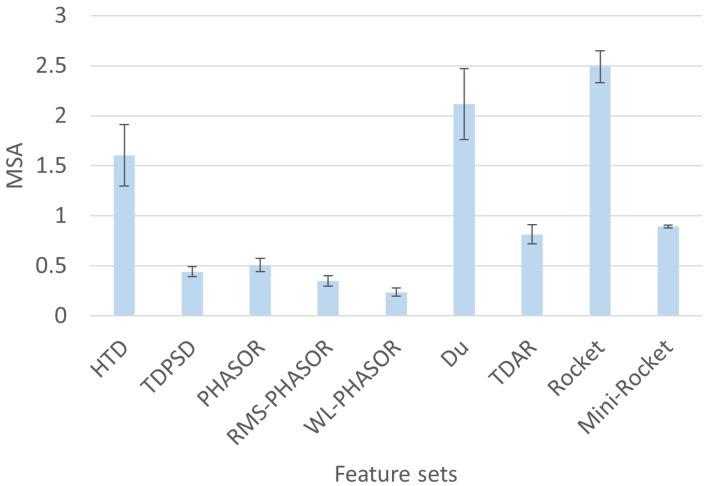

Gait phase recognition systems based on surface electromyographic signals (EMGs) are crucial for developing advanced myoelectric control schemes that enhance the interaction between humans and lower limb assistive devices. However, machine learning models used in this context, such as Linear Discriminant Analysis (LDA) and Support Vector Machine (SVM), typically experience performance degradation when modeling the gait cycle with more than just stance and swing phases. This study introduces a generalized phasor-based feature extraction approach (PHASOR) that captures spatial myoelectric features to improve the performance of LDA and SVM in gait phase recognition. A publicly available dataset of 40 subjects was used to evaluate PHASOR against state-of-the-art feature sets in a five-phase gait recognition problem. Additionally, fully data-driven deep learning architectures, such as Rocket and Mini-Rocket, were included for comparison. The separability index (SI) and mean semi-principal axis (MSA) analyses showed mean SI and MSA metrics of 7.7 and 0.5, respectively, indicating the proposed approach's ability to effectively decode gait phases through EMG activity. The SVM classifier demonstrated the highest accuracy of 82% using a five-fold leave-one-trial-out testing approach, outperforming Rocket and Mini-Rocket. This study confirms that in gait phase recognition based on EMG signals, novel and efficient muscle synergy information feature extraction schemes, such as PHASOR, can compete with deep learning approaches that require greater processing time for feature extraction and classification.
基于表面肌电信号(EMG)的步态阶段识别系统对于开发先进的肌电控制方案至关重要,这些方案可以增强人与下肢辅助设备之间的交互。然而,在这种情况下使用的机器学习模型,例如线性判别分析(LDA)和支持向量机(SVM),在对除了站立和摆动阶段之外的步态周期进行建模时,通常会出现性能下降。本研究提出了一种基于广义相量的特征提取方法(PHASOR),该方法可以捕获空间肌电特征,以提高 LDA 和 SVM 在步态阶段识别中的性能。使用一个公开的 40 名受试者数据集来评估 PHASOR 在五阶段步态识别问题中针对最先进的特征集的性能。此外,还包括了全数据驱动的深度学习架构,如 Rocket 和 Mini-Rocket,进行比较。分离指数(SI)和平均半主轴(MSA)分析显示,平均 SI 和 MSA 指标分别为 7.7 和 0.5,这表明所提出的方法能够通过肌电活动有效地解码步态阶段。SVM 分类器使用五折留一试验测试方法表现出最高的准确率 82%,优于 Rocket 和 Mini-Rocket。这项研究证实,在基于 EMG 信号的步态阶段识别中,新颖且高效的肌肉协同信息特征提取方案,如 PHASOR,可以与需要更多处理时间进行特征提取和分类的深度学习方法竞争。
