Programmable Optical Synaptic Linking of Neuromorphic Photonic-Electronic RTD Spiking Circuits.

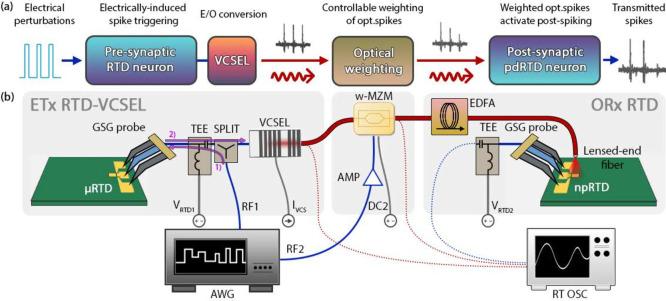

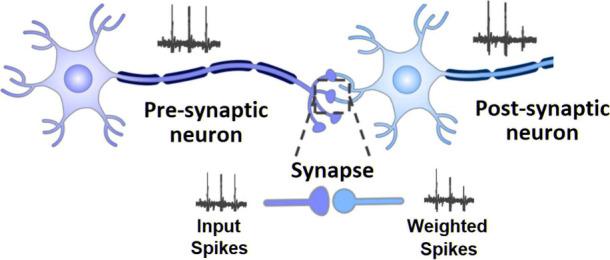

Interconnectivity between functional building blocks (such as neurons and synapses) represents a fundamental functionality for realizing neuromorphic systems. However, in the domain of neuromorphic photonics, synaptic interlinking and cascadability of spiking optical artificial neurons remains challenging and mostly unexplored in experiments. In this work, we report an optical synaptic link between optoelectronic spiking artificial neurons based upon resonant tunneling diodes (RTDs) that allows for cascadable spike propagation. First, deterministic spiking is triggered using multimodal (electrical and optical) inputs in RTD-based spiking artificial neurons, which are optoelectronic (OE) circuits incorporating either micron-scale RTDs or photosensitive nanopillar-based RTDs. Second, feedforward linking with dynamical weighting of optical spiking signals between pre- and postsynaptic RTD artificial neurons is demonstrated, including cascaded spike activation. By dynamically weighting the amplitude of optical spikes, it is shown how the cascaded spike activation probability in the postsynaptic RTD node directly follows the amplitude of the weighted optical spikes. This work therefore provides the first experimental demonstration of programmable synaptic optical link and spike cascading between multiple fast and efficient RTD OE spiking artificial neurons, therefore providing a key functionality for photonic-electronic spiking neural networks and light-enabled neuromorphic hardware.
