A Lightweight CNN for Multiclass Retinal Disease Screening with Explainable AI.

作者信息

Arnob Arjun Kumar Bose, Chayon Muhammad Hasibur Rashid, Al Farid Fahmid, Husen Mohd Nizam, Ahmed Firoz

机构信息

Department of Computer Science, American International University-Bangladesh, Dhaka 1229, Bangladesh.

Faculty of Computer Science and Informatics, Berlin School of Business and Innovation, 12043 Berlin, Germany.

出版信息

J Imaging. 2025 Aug 15;11(8):275. doi: 10.3390/jimaging11080275.


DOI:10.3390/jimaging11080275
PMID:40863485
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC12387214/
Abstract

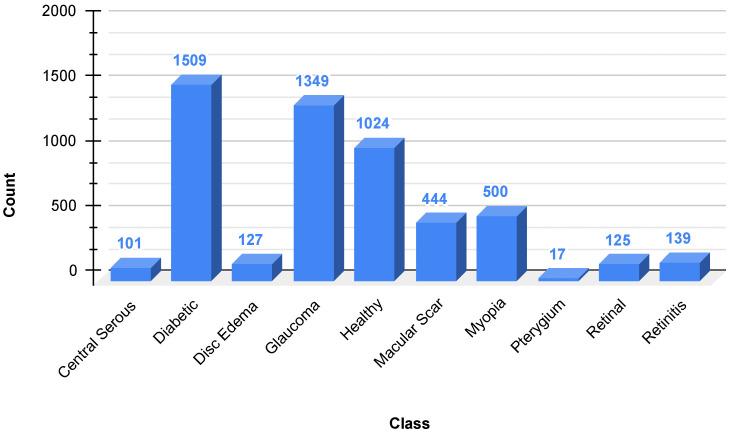

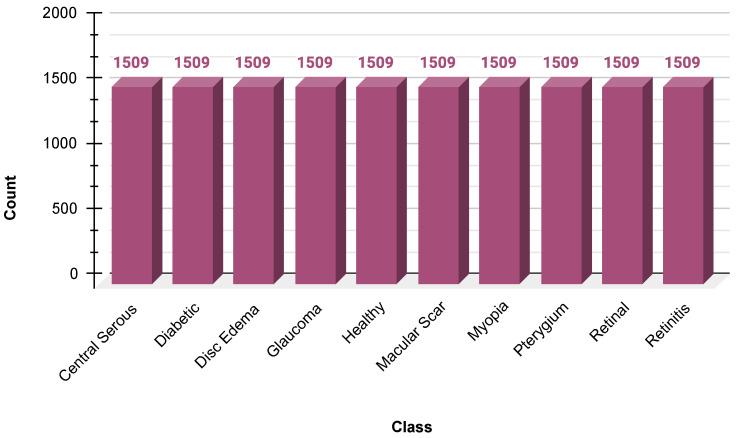

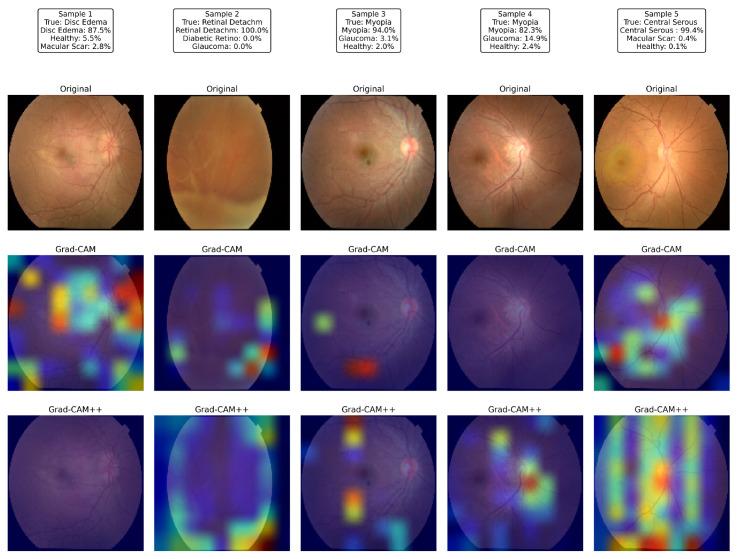

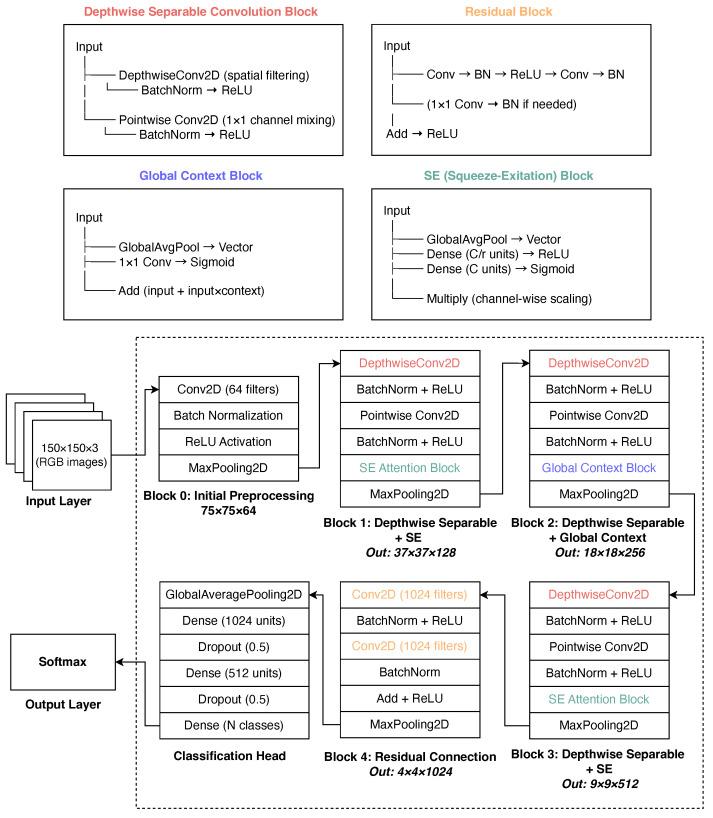

Timely, balanced, and transparent detection of retinal diseases is essential to avert irreversible vision loss; however, current deep learning screeners are hampered by class imbalance, large models, and opaque reasoning. This paper presents a lightweight attention-augmented convolutional neural network (CNN) that addresses all three barriers. The network combines depthwise separable convolutions, squeeze-and-excitation, and global-context attention, and it incorporates gradient-based class activation mapping (Grad-CAM) and Grad-CAM++ to ensure that every decision is accompanied by pixel-level evidence. A 5335-image ten-class color-fundus dataset from Bangladeshi clinics, which was severely skewed (17-1509 images per class), was equalized using a synthetic minority oversampling technique (SMOTE) and task-specific augmentations. Images were resized to 150×150 px and split 70:15:15. The training used the adaptive moment estimation (Adam) optimizer (initial learning rate of 1×10-4, reduce-on-plateau, early stopping), ℓ2 regularization, and dual dropout. The 16.6 M parameter network converged in fewer than 50 epochs on a mid-range graphics processing unit (GPU) and reached 87.9% test accuracy, a macro-precision of 0.882, a macro-recall of 0.879, and a macro-F1-score of 0.880, reducing the error by 58% relative to the best ImageNet backbone (Inception-V3, 40.4% accuracy). Eight disorders recorded true-positive rates above 95%; macular scar and central serous chorioretinopathy attained F1-scores of 0.77 and 0.89, respectively. Saliency maps consistently highlighted optic disc margins, subretinal fluid, and other hallmarks. Targeted class re-balancing, lightweight attention, and integrated explainability, therefore, deliver accurate, transparent, and deployable retinal screening suitable for point-of-care ophthalmic triage on resource-limited hardware.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/e78bf40874aa/jimaging-11-00275-g019.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/4c14c1240276/jimaging-11-00275-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/78ca82187efa/jimaging-11-00275-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/257c12d33f9a/jimaging-11-00275-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/f3d2cdbc2ce9/jimaging-11-00275-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/838973714011/jimaging-11-00275-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/38f64df538e4/jimaging-11-00275-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/9c58da4e2fa2/jimaging-11-00275-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/ec010f56e218/jimaging-11-00275-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/73468284754a/jimaging-11-00275-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/b2879cc7b3b1/jimaging-11-00275-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/bd4a2efc5541/jimaging-11-00275-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/0fe6182f676e/jimaging-11-00275-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/caeed5e55744/jimaging-11-00275-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/41372c013edd/jimaging-11-00275-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/a535e5acfaaa/jimaging-11-00275-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/5a1003cfa100/jimaging-11-00275-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/b9fa47bac0b5/jimaging-11-00275-g017.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/a6c31023748c/jimaging-11-00275-g018.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/e78bf40874aa/jimaging-11-00275-g019.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/4c14c1240276/jimaging-11-00275-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/78ca82187efa/jimaging-11-00275-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/257c12d33f9a/jimaging-11-00275-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/f3d2cdbc2ce9/jimaging-11-00275-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/838973714011/jimaging-11-00275-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/38f64df538e4/jimaging-11-00275-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/9c58da4e2fa2/jimaging-11-00275-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/ec010f56e218/jimaging-11-00275-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/73468284754a/jimaging-11-00275-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/b2879cc7b3b1/jimaging-11-00275-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/bd4a2efc5541/jimaging-11-00275-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/0fe6182f676e/jimaging-11-00275-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/caeed5e55744/jimaging-11-00275-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/41372c013edd/jimaging-11-00275-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/a535e5acfaaa/jimaging-11-00275-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/5a1003cfa100/jimaging-11-00275-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/b9fa47bac0b5/jimaging-11-00275-g017.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/a6c31023748c/jimaging-11-00275-g018.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6295/12387214/e78bf40874aa/jimaging-11-00275-g019.jpg
