Molecular Imaging Program at Stanford (MIPS), Department of Radiology, Stanford University, Stanford, California 94305-5484, USA.
Nat Commun. 2012;3:1193. doi: 10.1038/ncomms2197.

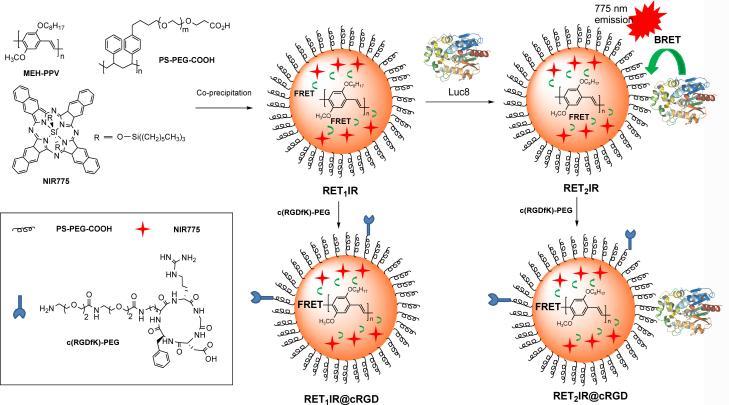

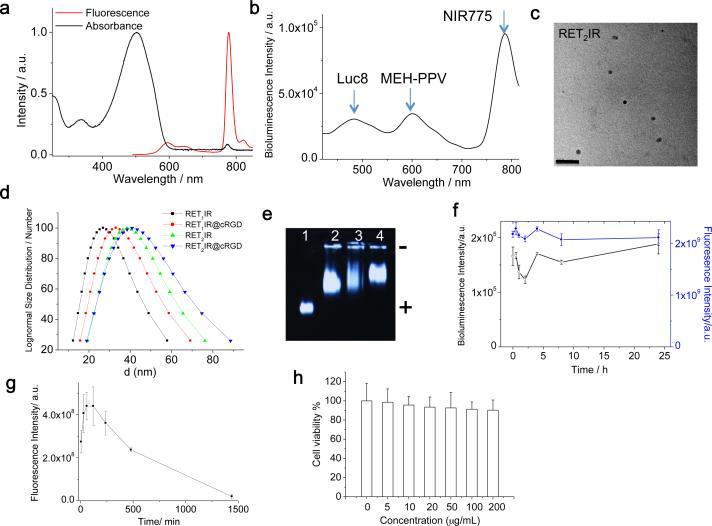

Strong autofluorescence from living tissues, and the scattering and absorption of short-wavelength light in living tissues, significantly reduce sensitivity of in vivo fluorescence imaging. These issues can be tackled by using imaging probes that emit in the near-infrared wavelength range. Here we describe self-luminescing near-infrared-emitting nanoparticles employing an energy transfer relay that integrates bioluminescence resonance energy transfer and fluorescence resonance energy transfer, enabling in vivo near-infrared imaging without external light excitation. Nanoparticles were 30-40 nm in diameter, contained no toxic metals, exhibited long circulation time and high serum stability, and produced strong near-infrared emission. Using these nanoparticles, we successfully imaged lymphatic networks and vasculature of xenografted tumours in living mice. The self-luminescing feature provided excellent tumour-to-background ratio (>100) for imaging very small tumours (2-3 mm in diameter). Our results demonstrate that these new nanoparticles are well suited to in vivo imaging applications such as lymph-node mapping and cancer imaging.
活组织的强荧光和短波长光在活组织中的散射和吸收,显著降低了活体荧光成像的灵敏度。这些问题可以通过使用发射近红外波长的成像探针来解决。在这里,我们描述了自发光近红外发射纳米粒子,该纳米粒子采用了能量转移中继,集成了生物发光共振能量转移和荧光共振能量转移,使得无需外部光激发即可进行体内近红外成像。纳米粒子的直径为 30-40nm,不含有毒金属,具有较长的循环时间和高血清稳定性,并产生强的近红外发射。使用这些纳米粒子,我们成功地对活小鼠中的异种移植肿瘤的淋巴管网络和脉管系统进行了成像。自发光特性为成像非常小的肿瘤(直径 2-3mm)提供了出色的肿瘤与背景比(>100)。我们的结果表明,这些新的纳米粒子非常适合于淋巴结成像和癌症成像等体内成像应用。
