Gao Zhi-Da, Qu Yongfang, Li Tongtong, Shrestha Nabeen K, Song Yan-Yan
1] College of Sciences, Northeastern University, Shenyang 110004, China [2] National Laboratory of Solid State Microstructures, Nanjing University, Nanjing 210093, China.
College of Sciences, Northeastern University, Shenyang 110004, China.
Sci Rep. 2014 Nov 4;4:6891. doi: 10.1038/srep06891.

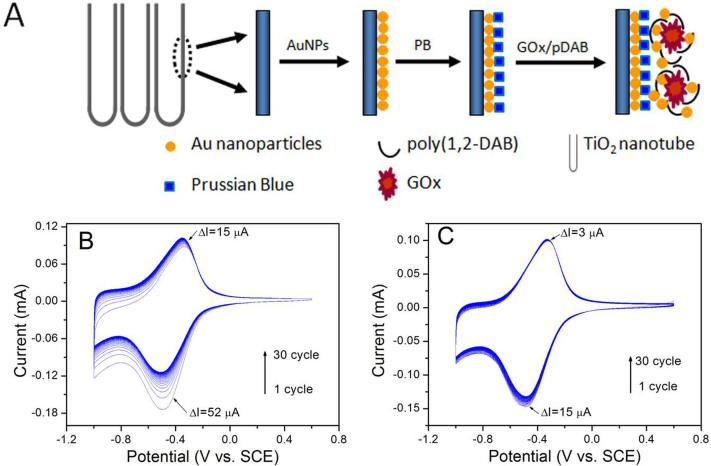

Amperometric biosensors consisting of oxidase and peroxidase have attracted great attention because of their wide application. The current work demonstrates a novel approach to construct an enzymatic biosensor based on TiO2 nanotube arrays (TiNTs) as a supporting electrode on which Prussian Blue (PB)-an "artificial enzyme peroxidase" and enzyme glucose oxidase (GOx) have been immobilized. For this, PB nanocrystals are deposited onto the nanotube wall photocatalytically using the intrinsic photocatalytical property of TiO2, and the GOx/AuNPs nanobiocomposites are subsequently immobilized into the nanotubes via the electrodeposition of polymer. The resulting electrode exhibits a fast response, wide linear range, and good stability for glucose sensing. The sensitivity of the sensor is as high as 248 mA M(-1) cm(-2), and the detection limit is about 3.2 μM. These findings demonstrate a promising strategy to integrate enzymes and TiNTs, which could provide an analytical access to a large group of enzymes for bioelectrochemical applications including biosensors and biofuel cells.
由氧化酶和过氧化物酶组成的电流型生物传感器因其广泛的应用而备受关注。当前的工作展示了一种构建酶生物传感器的新方法,该传感器基于二氧化钛纳米管阵列(TiNTs)作为支撑电极,在其上固定了普鲁士蓝(PB)——一种“人工酶过氧化物酶”和酶葡萄糖氧化酶(GOx)。为此,利用TiO2的固有光催化特性将PB纳米晶体光催化沉积到纳米管壁上,随后通过聚合物的电沉积将GOx/AuNPs纳米生物复合材料固定到纳米管中。所得电极在葡萄糖传感方面表现出快速响应、宽线性范围和良好的稳定性。该传感器的灵敏度高达248 mA M(-1) cm(-2),检测限约为3.2 μM。这些发现证明了一种将酶与TiNTs整合的有前景的策略,这可为包括生物传感器和生物燃料电池在内的生物电化学应用中的一大类酶提供分析途径。
