Tong Jijun, Lin Qinguang, Xiao Ran, Ding Lei
School of Information Science and Technology, Zhejiang Sci-Tech University, Hangzhou, 310018, China.
School of Electrical and Computer Engineering, University of Oklahoma, Norman, OK, 73019, USA.
Biomed Eng Online. 2016 Feb 4;15:17. doi: 10.1186/s12938-016-0134-9.
Brain-computer interface (BCI) is an assistive technology that conveys users' intentions by decoding various brain activities and translating them into control commands, without the need of verbal instructions and/or physical interactions. However, errors existing in BCI systems affect their performance greatly, which in turn confines the development and application of BCI technology. It has been demonstrated viable to extract error potential from electroencephalography recordings.
This study proposed a new approach of fusing multiple-channel features from temporal, spectral, and spatial domains through two times of dimensionality reduction based on neural network. 26 participants (13 males, mean age = 28.8 ± 5.4, range 20-37) took part in the study, who engaged in a P300 speller task spelling cued words from a 36-character matrix. In order to evaluate the generalization ability across subjects, the data from 16 participants were used for training and the rest for testing.

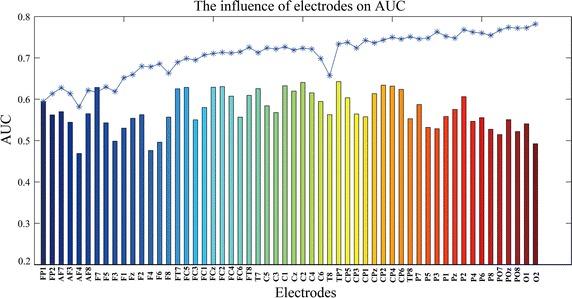

The total classification accuracy with combination of features is 76.7 %. The receiver operating characteristic (ROC) curve and area under ROC curve (AUC) further indicate the superior performance of the combination of features over any single features in error detection. The average AUC reaches 0.7818 with combined features, while 0.7270, 0.6376, 0.7330 with single temporal, spectral, and spatial features respectively.
The proposed method combining multiple-channel features from temporal, spectral, and spatial domain has better classification performance than any individual feature alone. It has good generalization ability across subject and provides a way of improving error detection, which could serve as promising feedbacks to promote the performance of BCI systems.
脑机接口(BCI)是一种辅助技术,它通过解码各种大脑活动并将其转化为控制命令来传达用户意图,无需言语指令和/或身体互动。然而,BCI系统中存在的错误极大地影响了其性能,进而限制了BCI技术的发展和应用。从脑电图记录中提取错误电位已被证明是可行的。
本研究提出了一种基于神经网络通过两次降维融合来自时间、频谱和空间域的多通道特征的新方法。26名参与者(13名男性,平均年龄 = 28.8 ± 5.4,范围20 - 37岁)参与了该研究,他们进行了一个P300拼写任务,从一个36字符矩阵中拼出提示的单词。为了评估跨受试者的泛化能力,使用了16名参与者的数据进行训练,其余数据用于测试。
特征组合的总分类准确率为76.7%。接收器操作特性(ROC)曲线和ROC曲线下面积(AUC)进一步表明,在错误检测方面,特征组合的性能优于任何单个特征。组合特征的平均AUC达到0.7818,而单个时间、频谱和空间特征的AUC分别为0.7270、0.6376和0.7330。
所提出的融合来自时间、频谱和空间域多通道特征的方法比任何单个特征具有更好的分类性能。它具有良好的跨受试者泛化能力,并提供了一种改进错误检测的方法,可为提升BCI系统性能提供有前景的反馈。
