Cope Alex J, Sabo Chelsea, Gurney Kevin, Vasilaki Eleni, Marshall James A R
Department of Computer Science, University of Sheffield, Sheffield, South Yorkshire, United Kingdom.
Sheffield Robotics, Sheffield, South Yorkshire, United Kingdom.
PLoS Comput Biol. 2016 May 5;12(5):e1004887. doi: 10.1371/journal.pcbi.1004887. eCollection 2016 May.

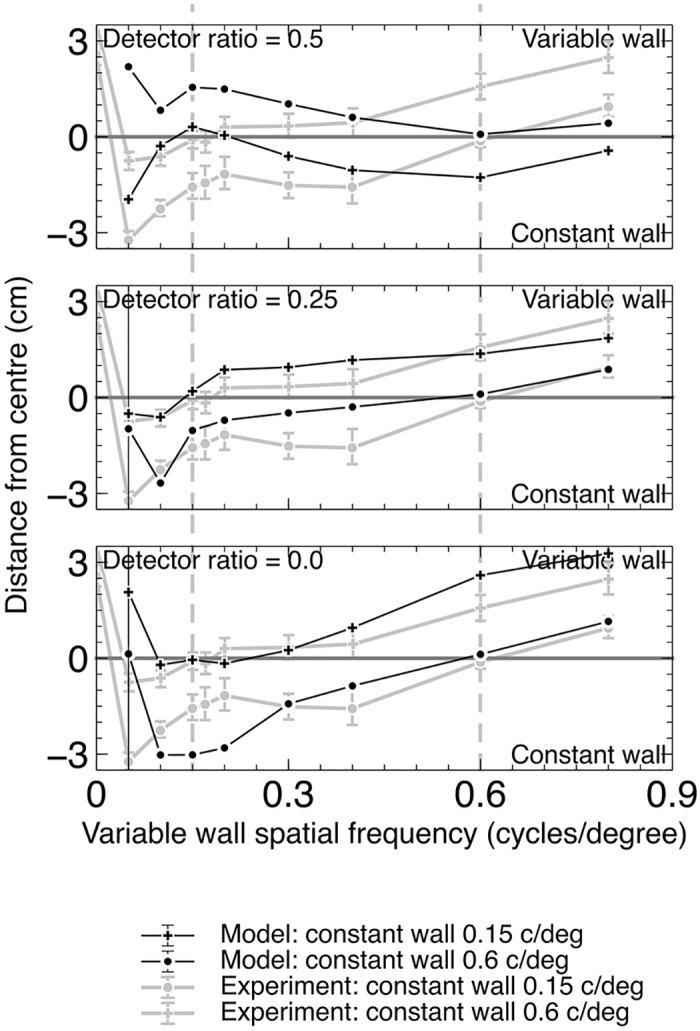

We present a novel neurally based model for estimating angular velocity (AV) in the bee brain, capable of quantitatively reproducing experimental observations of visual odometry and corridor-centering in free-flying honeybees, including previously unaccounted for manipulations of behaviour. The model is fitted using electrophysiological data, and tested using behavioural data. Based on our model we suggest that the AV response can be considered as an evolutionary extension to the optomotor response. The detector is tested behaviourally in silico with the corridor-centering paradigm, where bees navigate down a corridor with gratings (square wave or sinusoidal) on the walls. When combined with an existing flight control algorithm the detector reproduces the invariance of the average flight path to the spatial frequency and contrast of the gratings, including deviations from perfect centering behaviour as found in the real bee's behaviour. In addition, the summed response of the detector to a unit distance movement along the corridor is constant for a large range of grating spatial frequencies, demonstrating that the detector can be used as a visual odometer.
我们提出了一种基于神经的新型模型,用于估计蜜蜂大脑中的角速度(AV),该模型能够定量再现自由飞行蜜蜂视觉里程计和走廊居中的实验观察结果,包括之前未考虑的行为操纵。该模型使用电生理数据进行拟合,并使用行为数据进行测试。基于我们的模型,我们认为AV反应可被视为视动反应的进化扩展。该探测器在计算机模拟中通过走廊居中范式进行行为测试,即蜜蜂在墙壁上带有光栅(方波或正弦波)的走廊中导航。当与现有的飞行控制算法相结合时,该探测器再现了平均飞行路径对光栅空间频率和对比度的不变性,包括与真实蜜蜂行为中发现的完美居中行为的偏差。此外,对于大范围的光栅空间频率,探测器对沿走廊单位距离移动的总和响应是恒定的,这表明该探测器可用作视觉里程计。
