体内成像的红移切伦科夫辐射:将切伦科夫辐射能量转移与多个Förster 共振能量转移相耦合。

Redshifted Cherenkov Radiation for in vivo Imaging: Coupling Cherenkov Radiation Energy Transfer to multiple Förster Resonance Energy Transfers.

机构信息

Institut de Chimie Moléculaire, ICMUB CNRS UMR6302, University of Burgundy Franche-Comté, 9 avenue Alain Savary, 21078, Dijon, France.

Centre George-François Leclerc (CGFL), 1 rue du Professeur Marion, 21079, Dijon, France.

出版信息

Sci Rep. 2017 Mar 24;7:45063. doi: 10.1038/srep45063.

DOI:10.1038/srep45063
PMID:28338043
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC5364485/
Abstract

Cherenkov Radiation (CR), this blue glow seen in nuclear reactors, is an optical light originating from energetic β-emitter radionuclides. CR emitter Y triggers a cascade of energy transfers in the presence of a mixed population of fluorophores (which each other match their respective absorption and emission maxima): Cherenkov Radiation Energy Transfer (CRET) first, followed by multiple Förster Resonance Energy transfers (FRET): CRET ratios were calculated to give a rough estimate of the transfer efficiency. While CR is blue-weighted (300-500 nm), such cascades of Energy Transfers allowed to get a) fluorescence emission up to 710 nm, which is beyond the main CR window and within the near-infrared (NIR) window where biological tissues are most transparent, b) to amplify this emission and boost the radiance on that window: EMT6-tumor bearing mice injected with both a radionuclide and a mixture of fluorophores having a good spectral overlap, were shown to have nearly a two-fold radiance boost (measured on a NIR window centered on the emission wavelength of the last fluorophore in the Energy Transfer cascade) compared to a tumor injected with the radionuclide only. Some CR embarked light source could be converted into a near-infrared radiation, where biological tissues are most transparent.

摘要

切伦科夫辐射(CR),这种在核反应堆中看到的蓝色辉光,是源自高能β发射放射性核素的光学光。CR 发射器 Y 在混合荧光团(彼此匹配其各自的吸收和发射最大值)存在的情况下引发能量转移级联:首先是切伦科夫辐射能量转移(CRET),然后是多个Förster 共振能量转移(FRET):CRET 比被计算以粗略估计转移效率。虽然 CR 是蓝色加权的(300-500nm),但这种能量转移级联允许 a)荧光发射高达 710nm,这超出了主要的 CR 窗口,并且在近红外(NIR)窗口中,生物组织最透明,b)放大这种发射并增强该窗口上的辐射:已经证明,用放射性核素和具有良好光谱重叠的荧光团混合物注射 EMT6 肿瘤-bearing 小鼠,与仅用放射性核素注射的肿瘤相比,近红外窗口(以能量转移级联中最后一个荧光团的发射波长为中心)的辐射增强了近两倍。一些携带切伦科夫辐射的光源可以转化为近红外辐射,在该区域生物组织最透明。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/5e136f24ea3a/srep45063-f4.jpg

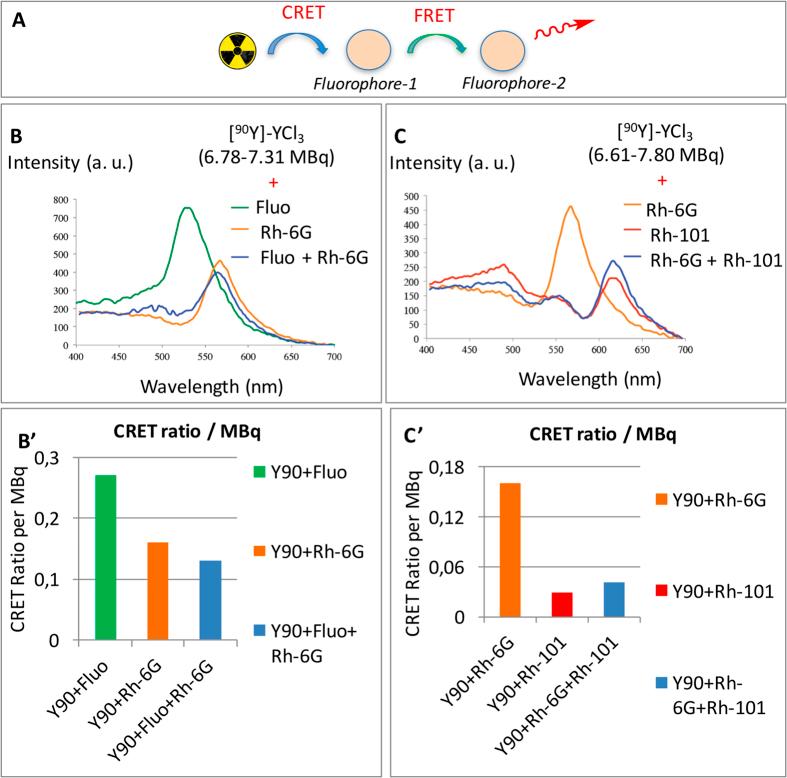

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/df3a0de15695/srep45063-f2.jpg

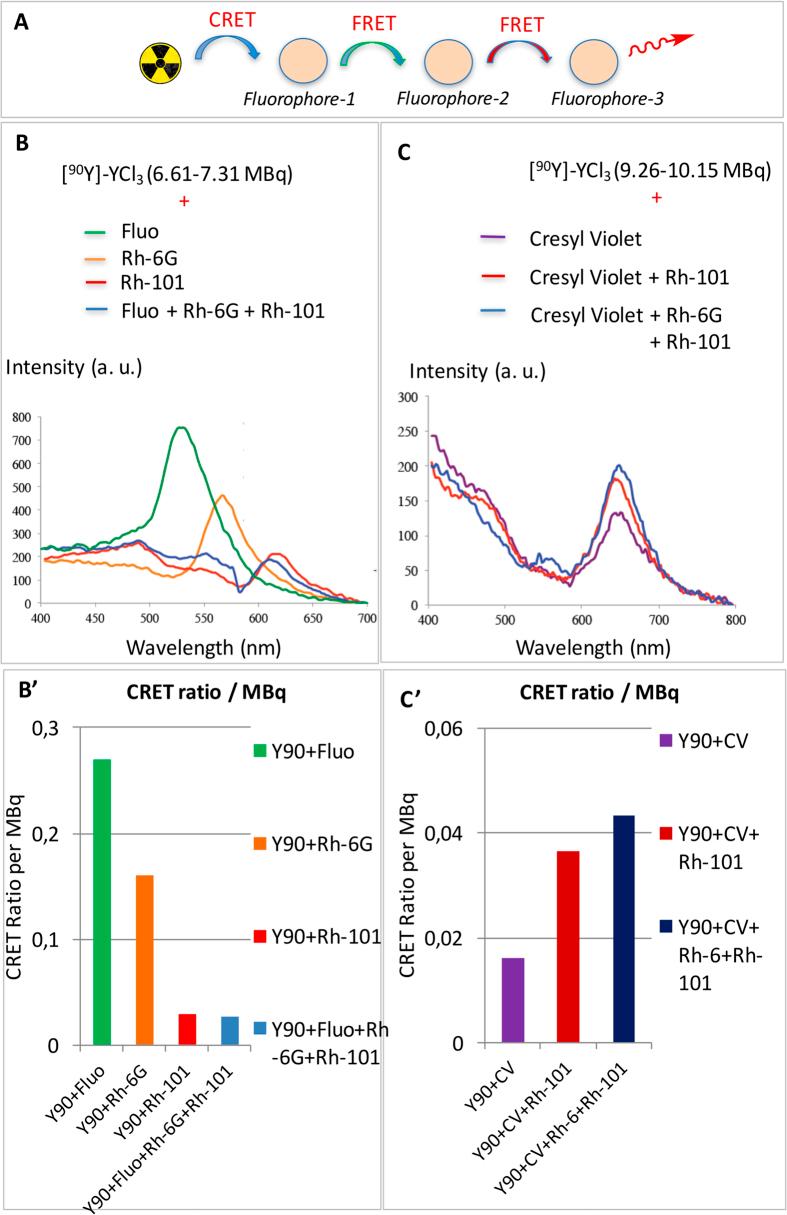

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/697670ee1845/srep45063-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/5e136f24ea3a/srep45063-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/df3a0de15695/srep45063-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/697670ee1845/srep45063-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a0a5/5364485/5e136f24ea3a/srep45063-f4.jpg
