Norcia Anthony M, Yakovleva Alexandra, Hung Bethany, Goldberg Jeffrey L
Department of Psychology, Stanford University, Stanford, CA, USA.
Department of Ophthalmology, Stanford University, Stanford, CA, USA.
Transl Vis Sci Technol. 2020 Sep 4;9(10):6. doi: 10.1167/tvst.9.10.6. eCollection 2020 Sep.
The goal of the present experiments was to determine whether electrophysiologic response properties of the ON and OFF visual pathways observed in animal experimental models can be observed in humans.

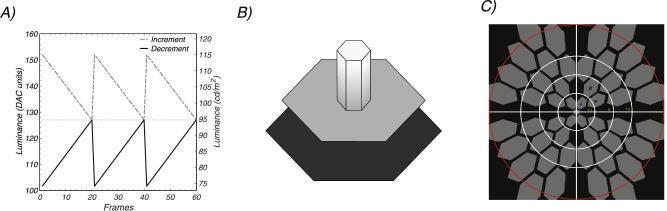

Steady-state visual evoked potentials (SSVEPs) were recorded in response to equivalent magnitude contrast increments and decrements presented within a probe-on-pedestal Westheimer sensitization paradigm. The probes were modulated with sawtooth temporal waveforms at a temporal frequency of 3 or 2.73 Hz. SSVEP response waveforms and response spectra for incremental and decremental stimuli were analyzed as a function of stimulus size and visual field location in 67 healthy adult participants.

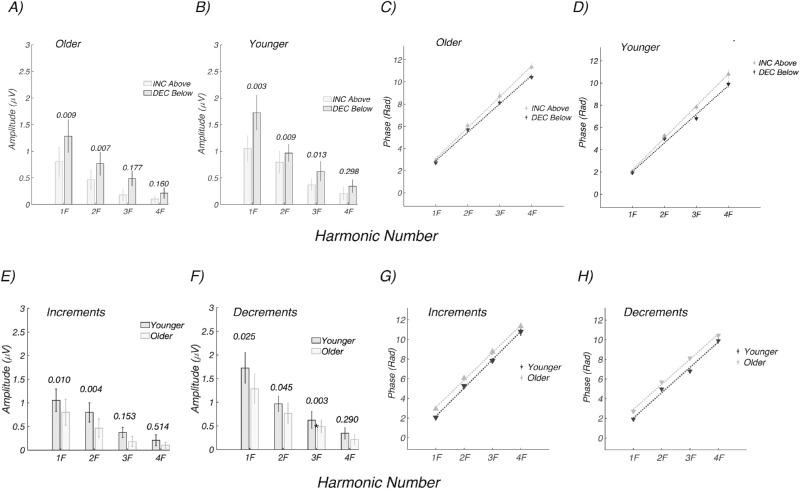

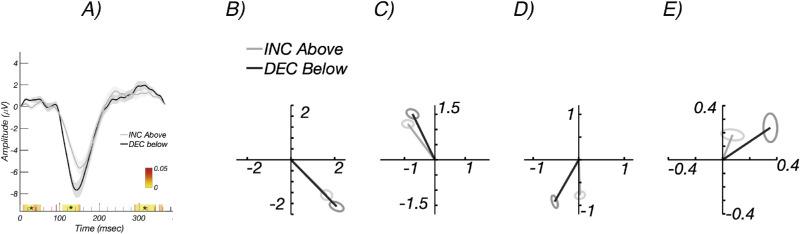

SSVEPs recorded at the scalp differ between contrast decrements and increments of equal Weber contrast: SSVEP responses were larger in amplitude and shorter in latency for contrast decrements than for contrast increments. Both increment and decrement responses were larger for displays that were scaled for cortical magnification.
In a fashion that parallels results from the early visual system of cats and monkeys, two key properties of ON versus OFF pathways found in single-unit recordings are recapitulated at the population level of activity that can be observed with scalp electrodes, allowing differential assessment of ON and OFF pathway activity in human.
As data from preclinical models of visual pathway dysfunction point to differential damage to subtypes of retinal ganglion cells, this approach may be useful in future work on disease detection and treatment monitoring.
本实验的目的是确定在动物实验模型中观察到的视锥细胞和视杆细胞视觉通路的电生理反应特性是否也能在人类中观察到。
在一个基于基座探针的韦斯特海默敏化范式中,记录稳态视觉诱发电位(SSVEP)对等效对比度增量和减量的反应。探针以3或2.73赫兹的时间频率用锯齿形时间波形进行调制。在67名健康成年参与者中,分析了增量和减量刺激的SSVEP反应波形和反应频谱,作为刺激大小和视野位置的函数。
头皮记录的SSVEP在相等韦伯对比度的对比度减量和增量之间存在差异:对比度减量的SSVEP反应幅度更大,潜伏期更短。对于按皮质放大比例缩放的显示,增量和减量反应都更大。
在猫和猴子早期视觉系统的结果相似的方式下,在单单位记录中发现的视锥细胞与视杆细胞通路的两个关键特性在头皮电极可观察到的群体活动水平上得到了概括,从而可以对人类视锥细胞和视杆细胞通路活动进行差异评估。
由于视觉通路功能障碍临床前模型的数据表明视网膜神经节细胞亚型受到不同程度的损伤,这种方法可能在未来疾病检测和治疗监测工作中有用。
