IMHOTEP:头戴式显示器中用于交互式手术规划、肿瘤委员会讨论和复杂肝脏手术沉浸式培训的三维虚拟现实系统的跨专业评估。

IMHOTEP: cross-professional evaluation of a three-dimensional virtual reality system for interactive surgical operation planning, tumor board discussion and immersive training for complex liver surgery in a head-mounted display.

机构信息

Department of General, Visceral and Transplantation Surgery, Heidelberg University Hospital, Im Neuenheimer Feld 110, 69120, Heidelberg, Germany.

Institute for Anthropomatics and Robotics, Karlsruhe Institute of Technology, Karlsruhe, Germany.

出版信息

Surg Endosc. 2022 Jan;36(1):126-134. doi: 10.1007/s00464-020-08246-4. Epub 2021 Jan 21.


DOI:10.1007/s00464-020-08246-4
PMID:33475848
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8741674/
Abstract

BACKGROUND: Virtual reality (VR) with head-mounted displays (HMD) may improve medical training and patient care by improving display and integration of different types of information. The aim of this study was to evaluate among different healthcare professions the potential of an interactive and immersive VR environment for liver surgery that integrates all relevant patient data from different sources needed for planning and training of procedures. METHODS: 3D-models of the liver, other abdominal organs, vessels, and tumors of a sample patient with multiple hepatic masses were created. 3D-models, clinical patient data, and other imaging data were visualized in a dedicated VR environment with an HMD (IMHOTEP). Users could interact with the data using head movements and a computer mouse. Structures of interest could be selected and viewed individually or grouped. IMHOTEP was evaluated in the context of preoperative planning and training of liver surgery and for the potential of broader surgical application. A standardized questionnaire was voluntarily answered by four groups (students, nurses, resident and attending surgeons). RESULTS: In the evaluation by 158 participants (57 medical students, 35 resident surgeons, 13 attending surgeons and 53 nurses), 89.9% found the VR system agreeable to work with. Participants generally agreed that complex cases in particular could be assessed better (94.3%) and faster (84.8%) with VR than with traditional 2D display methods. The highest potential was seen in student training (87.3%), resident training (84.6%), and clinical routine use (80.3%). Least potential was seen in nursing training (54.8%). CONCLUSIONS: The present study demonstrates that using VR with HMD to integrate all available patient data for the preoperative planning of hepatic resections is a viable concept. VR with HMD promises great potential to improve medical training and operation planning and thereby to achieve improvement in patient care.

摘要

背景:头戴式显示器 (HMD) 的虚拟现实 (VR) 可以通过改进不同类型信息的显示和集成来改善医学培训和患者护理。本研究的目的是评估不同医疗保健专业人员使用一种交互式和沉浸式 VR 环境的潜力,该环境可整合来自不同来源的所有与规划和手术培训相关的患者数据,以用于肝切除术。

方法:创建了一位有多个肝肿块的样本患者的肝脏、其他腹部器官、血管和肿瘤的 3D 模型。3D 模型、临床患者数据和其他成像数据在具有 HMD (IMHOTEP) 的专用 VR 环境中可视化。用户可以使用头部运动和计算机鼠标与数据进行交互。可以选择并单独或分组查看感兴趣的结构。在术前规划和肝切除术培训的背景下评估了 IMHOTEP,并评估了其在更广泛手术应用中的潜力。四个小组(学生、护士、住院医师和主治医生)自愿回答了标准化问卷。

结果:在 158 名参与者(57 名医学生、35 名住院医师、13 名主治医生和 53 名护士)的评估中,89.9%的人认为 VR 系统易于使用。参与者普遍认为,与传统的 2D 显示方法相比,VR 可以更好(94.3%)和更快(84.8%)地评估复杂病例。在学生培训(87.3%)、住院医师培训(84.6%)和临床常规使用(80.3%)中潜力最大。在护理培训中潜力最小(54.8%)。

结论:本研究表明,使用 HMD 的 VR 来整合所有可用的患者数据,以进行肝切除术的术前规划,是一种可行的概念。HMD 的 VR 具有很大的潜力,可以改善医学培训和手术规划,从而改善患者护理。

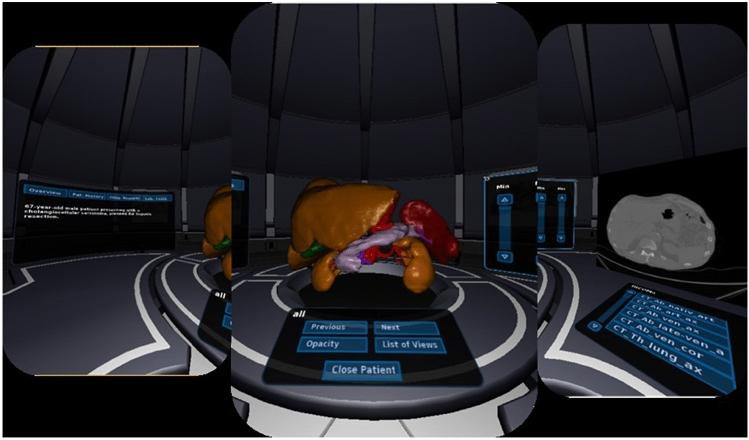

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8089/8741674/5e26d1b9bf5f/464_2020_8246_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8089/8741674/5e26d1b9bf5f/464_2020_8246_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8089/8741674/5e26d1b9bf5f/464_2020_8246_Fig1_HTML.jpg
