一种联合微流控深度学习方法,用于高通量筛选肺癌细胞,以实现自动癌症筛查应用。

A combined microfluidic deep learning approach for lung cancer cell high throughput screening toward automatic cancer screening applications.

机构信息

Nanobiotechnology Department, Faculty of Biosciences, Tarbiat Modares University, Tehran, Iran.

Biomedical Engineering Group, Department of Electrical Engineering and Information Technology, Iranian Research Organization for Science and Technology (IROST), P.O. Box 33535111, Tehran, Iran.

出版信息

Sci Rep. 2021 May 7;11(1):9804. doi: 10.1038/s41598-021-89352-8.


DOI:10.1038/s41598-021-89352-8
PMID:33963232
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8105370/
Abstract

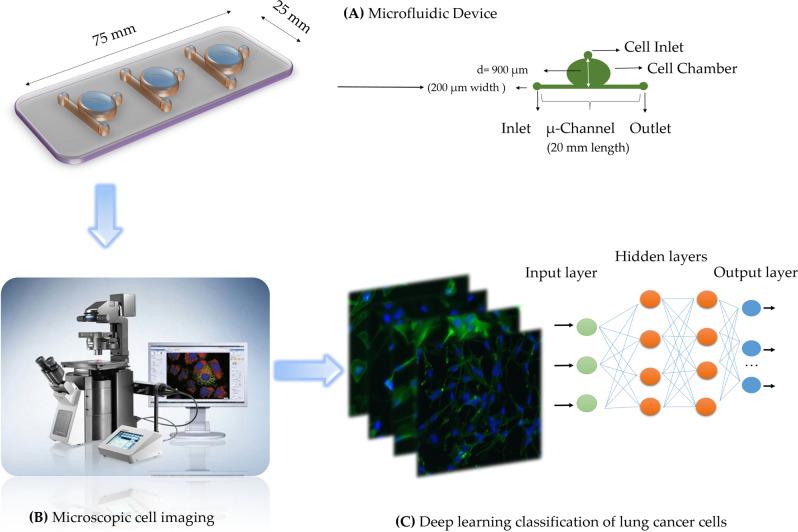

Lung cancer is a leading cause of cancer death in both men and women worldwide. The high mortality rate in lung cancer is in part due to late-stage diagnostics as well as spread of cancer-cells to organs and tissues by metastasis. Automated lung cancer detection and its sub-types classification from cell's images play a crucial role toward an early-stage cancer prognosis and more individualized therapy. The rapid development of machine learning techniques, especially deep learning algorithms, has attracted much interest in its application to medical image problems. In this study, to develop a reliable Computer-Aided Diagnosis (CAD) system for accurately distinguishing between cancer and healthy cells, we grew popular Non-Small Lung Cancer lines in a microfluidic chip followed by staining with Phalloidin and images were obtained by using an IX-81 inverted Olympus fluorescence microscope. We designed and tested a deep learning image analysis workflow for classification of lung cancer cell-line images into six classes, including five different cancer cell-lines (P-C9, SK-LU-1, H-1975, A-427, and A-549) and normal cell-line (16-HBE). Our results demonstrate that ResNet18, a residual learning convolutional neural network, is an efficient and promising method for lung cancer cell-lines categorization with a classification accuracy of 98.37% and F1-score of 97.29%. Our proposed workflow is also able to successfully distinguish normal versus cancerous cell-lines with a remarkable average accuracy of 99.77% and F1-score of 99.87%. The proposed CAD system completely eliminates the need for extensive user intervention, enabling the processing of large amounts of image data with robust and highly accurate results.

摘要

肺癌是全世界男性和女性癌症死亡的主要原因。肺癌的高死亡率部分归因于晚期诊断,以及癌细胞通过转移扩散到器官和组织。从细胞图像中自动检测肺癌及其亚型分类对早期癌症预后和更个体化的治疗至关重要。机器学习技术的快速发展,特别是深度学习算法,引起了人们对其在医学图像问题中的应用的极大兴趣。在这项研究中,为了开发一种可靠的计算机辅助诊断 (CAD) 系统,以准确区分癌症和健康细胞,我们在微流控芯片中培养了流行的非小细胞肺癌系,然后用鬼笔环肽染色,并使用 IX-81 倒置 Olympus 荧光显微镜获取图像。我们设计并测试了一种深度学习图像分析工作流程,用于将肺癌细胞系图像分类为六个类别,包括五种不同的肺癌细胞系 (P-C9、SK-LU-1、H-1975、A-427 和 A-549) 和正常细胞系 (16-HBE)。我们的结果表明,ResNet18,一种残差学习卷积神经网络,是一种高效且有前途的肺癌细胞系分类方法,分类准确率为 98.37%,F1 得分为 97.29%。我们提出的工作流程还能够成功地区分正常细胞系和癌细胞系,平均准确率达到 99.77%,F1 得分为 99.87%。所提出的 CAD 系统完全消除了对大量用户干预的需求,能够处理大量图像数据,并获得稳健且高度准确的结果。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/9eefce2787db/41598_2021_89352_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/13f85d036a77/41598_2021_89352_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/03223ca7202f/41598_2021_89352_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/a37ffa138d37/41598_2021_89352_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/9eefce2787db/41598_2021_89352_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/13f85d036a77/41598_2021_89352_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/03223ca7202f/41598_2021_89352_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/a37ffa138d37/41598_2021_89352_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5957/8105370/9eefce2787db/41598_2021_89352_Fig4_HTML.jpg
