用于生物医学成像的胶体稳定氧化铁纳米颗粒的无螯合剂/螯合剂介导的放射性标记

Chelator-Free/Chelator-Mediated Radiolabeling of Colloidally Stabilized Iron Oxide Nanoparticles for Biomedical Imaging.

作者信息

Papadopoulou Sofia, Kolokithas-Ntoukas Argiris, Salvanou Evangelia-Alexandra, Gaitanis Anastasios, Xanthopoulos Stavros, Avgoustakis Konstantinos, Gazouli Maria, Paravatou-Petsotas Maria, Tsoukalas Charalampos, Bakandritsos Aristides, Bouziotis Penelope

机构信息

Institute of Nuclear & Radiological Sciences & Technology, Energy & Safety, National Center for Scientific Research "Demokritos", 15341 Athens, Greece.

Radioanalytics-Environmental Radioactivity, Radiochemistry & Radiobiology Research Laboratories SMPC, 20131 Corinth, Greece.

出版信息

Nanomaterials (Basel). 2021 Jun 25;11(7):1677. doi: 10.3390/nano11071677.


DOI:10.3390/nano11071677
PMID:34202370
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8307582/
Abstract

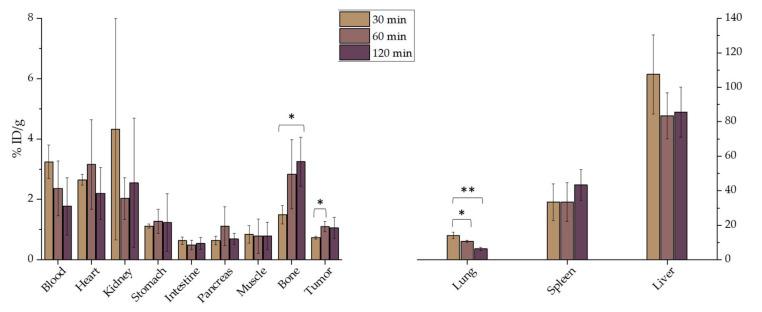

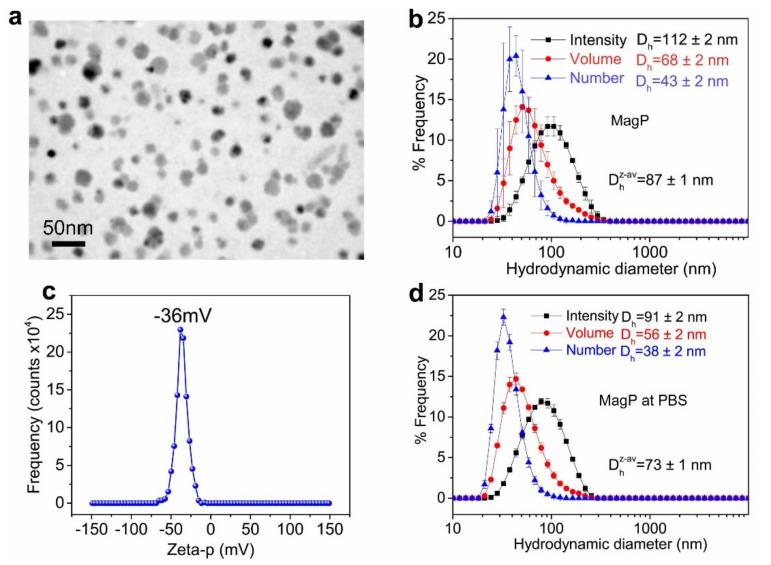

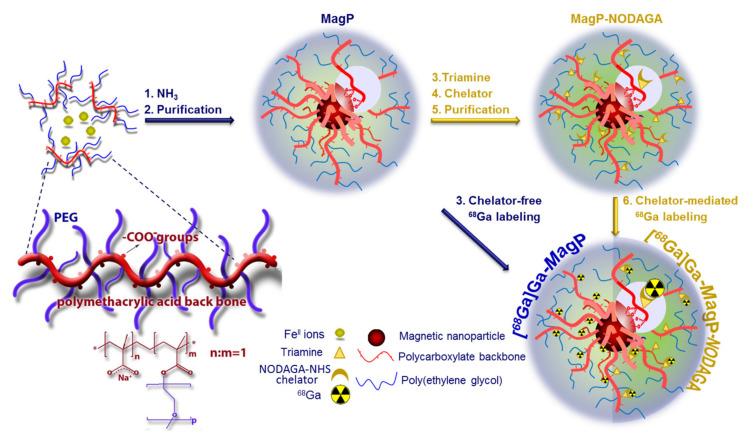

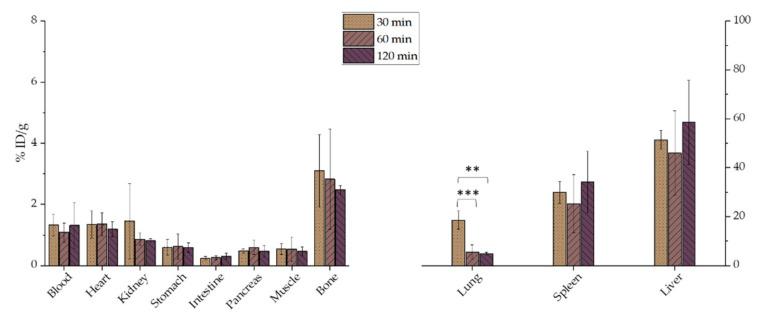

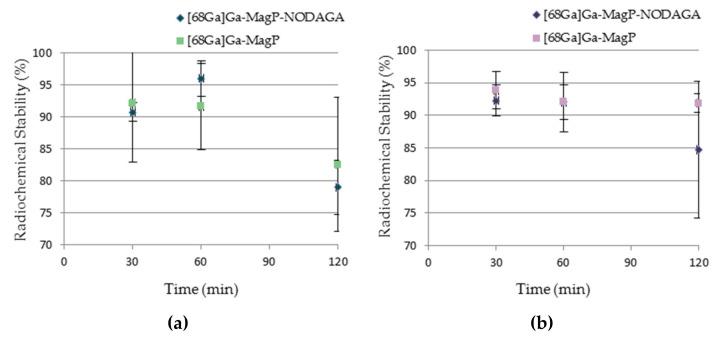

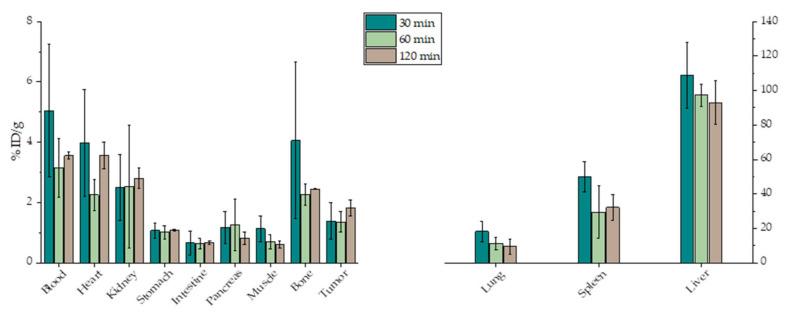

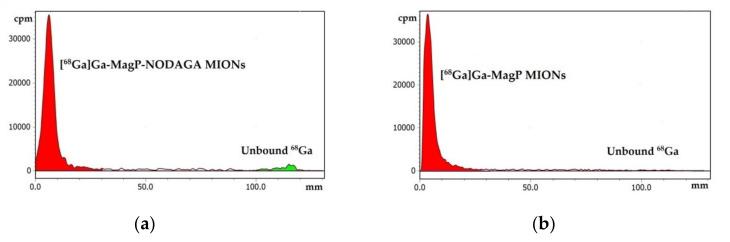

The aim of this study was to develop a bioimaging probe based on magnetic iron oxide nanoparticles (MIONs) surface functionalized with the copolymer (p(MAA-g-EGMA)), which were radiolabeled with the positron emitter Gallium-68. The synthesis of the hybrid MIONs was realized by hydrolytic condensation of a single ferrous precursor in the presence of the copolymer. The synthesized MagP MIONs displayed an average D of 87 nm, suitable for passive targeting of cancerous tissues through the enhanced permeation and retention (EPR) effect after intravenous administration, while their particularly high magnetic content ascribes strong magnetic properties to the colloids. Two different approaches were explored to develop MIONs radiolabeled with Ga: the chelator-mediated approach, where the chelating agent NODAGA-NHS was conjugated onto the MIONs (MagP-NODAGA) to form a chelate complex with Ga, and the chelator-free approach, where Ga was directly incorporated onto the MIONs (MagP). Both groups of NPs showed highly efficient radiolabeling with Ga, forming constructs which were stable with time, and in the presence of PBS and human serum. Ex vivo biodistribution studies of [Ga]Ga- MIONs showed high accumulation in the mononuclear phagocyte system (MPS) organs and satisfactory blood retention with time. In vivo PET imaging with [Ga]Ga-MagP MIONs was in accordance with the ex vivo biodistribution results. Finally, the MIONs showed low toxicity against 4T1 breast cancer cells. These detailed studies established that [Ga]Ga- MIONs exhibit potential for application as tracers for early cancer detection.

摘要

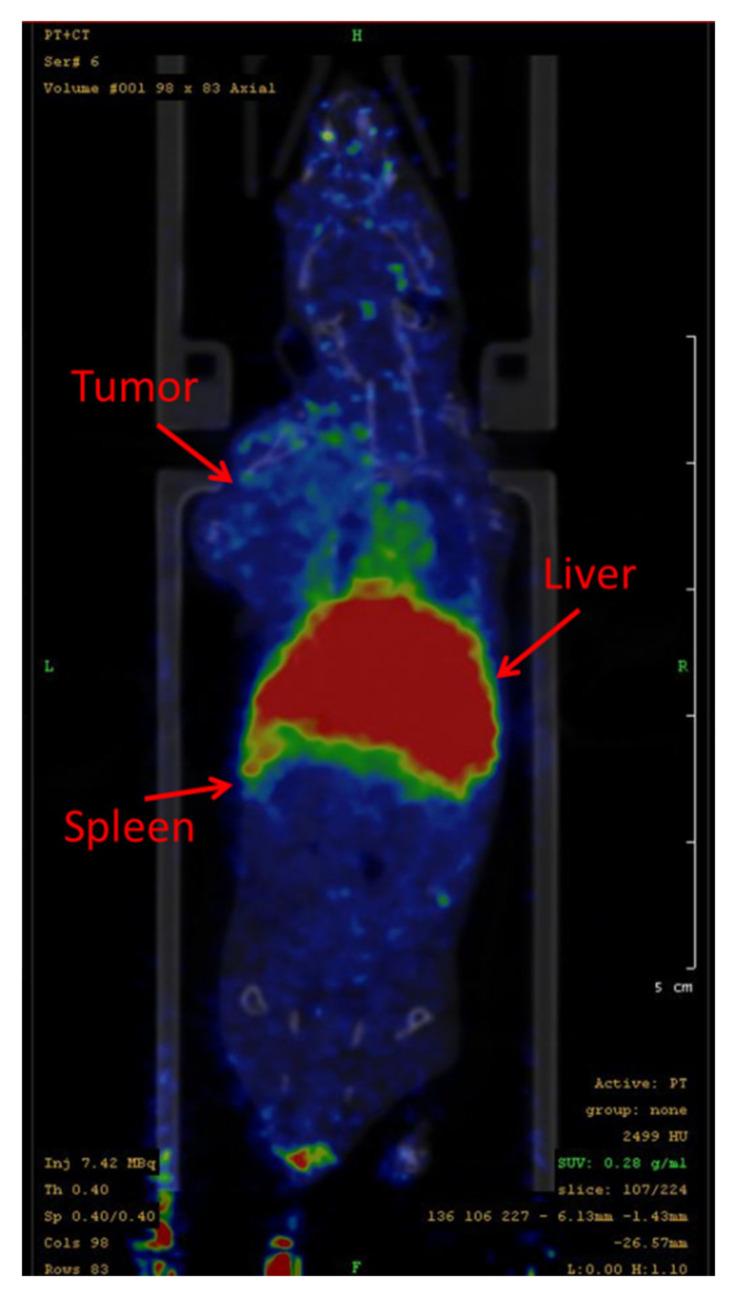

本研究的目的是开发一种基于用共聚物(p(MAA-g-EGMA))表面功能化的磁性氧化铁纳米颗粒(MIONs)的生物成像探针,这些纳米颗粒用正电子发射体镓-68进行放射性标记。通过在共聚物存在下单一亚铁前体的水解缩合来实现杂化MIONs的合成。合成的MagP MIONs的平均直径为87 nm,适合通过静脉注射后增强的渗透和滞留(EPR)效应被动靶向癌组织,而其特别高的磁性含量赋予胶体很强的磁性。探索了两种不同的方法来开发用Ga放射性标记的MIONs:螯合剂介导法,其中螯合剂NODAGA-NHS与MIONs(MagP-NODAGA)共轭以形成与Ga的螯合物;以及无螯合剂法,其中Ga直接掺入MIONs(MagP)。两组纳米颗粒均显示出与Ga的高效放射性标记,形成随时间以及在PBS和人血清存在下稳定的构建体。[Ga]Ga-MIONs的离体生物分布研究表明在单核吞噬细胞系统(MPS)器官中有高积累,并且随时间有令人满意的血液滞留。用[Ga]Ga-MagP MIONs进行的体内PET成像与离体生物分布结果一致。最后,MIONs对4T1乳腺癌细胞显示出低毒性。这些详细研究表明[Ga]Ga-MIONs具有作为早期癌症检测示踪剂应用的潜力。
