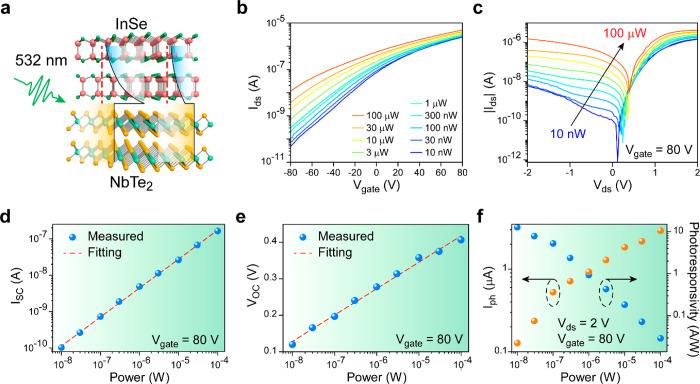

van der Waals (vdW) heterostructures based on two-dimensional (2D) semiconducting materials have been extensively studied for functional applications, and most of the reported devices work with sole mechanism. The emerging metallic 2D materials provide us new options for building functional vdW heterostructures via rational band engineering design. Here, we investigate the vdW semiconductor/metal heterostructure built with 2D semiconducting InSe and metallic 1T-phase NbTe, whose electron affinity and work function almost exactly align. Electrical characterization verifies exceptional diode-like rectification ratio of >10 for the InSe/NbTe heterostructure device. Further photocurrent mappings reveal the switchable photoresponse mechanisms of this heterostructure or, in other words, the alternative roles that metallic NbTe plays. Specifically, this heterostructure device works in a photovoltaic manner under reverse bias, whereas it turns to phototransistor with InSe channel and NbTe electrode under high forward bias. The switchable photoresponse mechanisms originate from the band alignment at the interface, where the band bending could be readily adjusted by the bias voltage. In addition, a conceptual optoelectronic logic gate is proposed based on the exclusive working mechanisms. Finally, the photodetection performance of this heterostructure is represented by an ultrahigh responsivity of ∼84 A/W to 532 nm laser. Our results demonstrate the valuable application of 2D metals in functional devices, as well as the potential of implementing photovoltaic device and phototransistor with single vdW heterostructure.
基于二维(2D)半导体材料的范德华(vdW)异质结构已被广泛研究用于功能应用,并且大多数报道的器件都以单一机制工作。新兴的金属二维材料为通过合理的能带工程设计构建功能化的范德华异质结构提供了新的选择。在此,我们研究了由二维半导体InSe和金属1T相NbTe构建的范德华半导体/金属异质结构,其电子亲和势和功函数几乎完全匹配。电学表征验证了InSe/NbTe异质结构器件具有大于10的异常二极管状整流比。进一步的光电流映射揭示了这种异质结构的可切换光响应机制,或者换句话说,金属NbTe所起的替代作用。具体而言,这种异质结构器件在反向偏压下以光伏方式工作,而在高正向偏压下它转变为具有InSe沟道和NbTe电极的光电晶体管。可切换光响应机制源于界面处的能带排列,其中能带弯曲可以通过偏置电压轻松调节。此外,基于独特的工作机制提出了一种概念性的光电逻辑门。最后,这种异质结构的光探测性能表现为对532nm激光具有约84A/W的超高响应率。我们的结果证明了二维金属在功能器件中的宝贵应用,以及用单个范德华异质结构实现光伏器件和光电晶体管的潜力。
