Masri Syafira, Maarof Manira, Mohd Nor Fatimah, Hiraoka Yosuke, Tabata Yasuhiko, Fauzi Mh Busra
Centre for Tissue Engineering Centre and Regenerative Medicine, Faculty of Medicine, Universiti Kebangsaan Malaysia, Kuala Lumpur 56000, Malaysia.
Kumpulan Perubatan Johor Ampang Puteri Specialist Hospital, Kuala Lumpur 68000, Malaysia.
Biomedicines. 2022 Oct 20;10(10):2651. doi: 10.3390/biomedicines10102651.

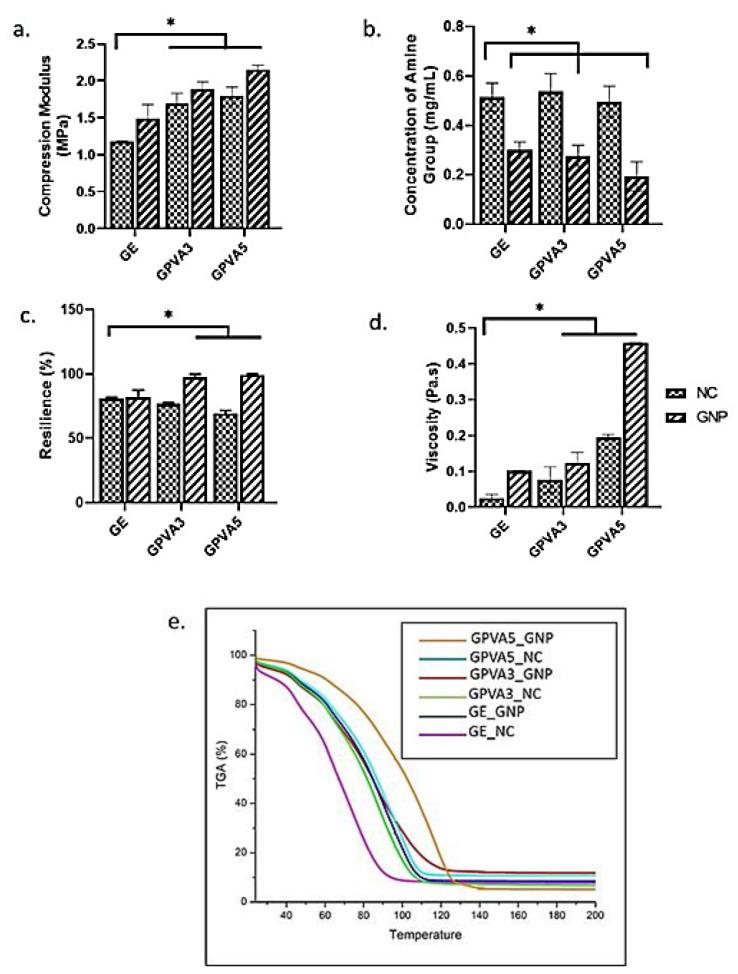

The irregular shape and depth of wounds could be the major hurdles in wound healing for the common three-dimensional foam, sheet, or film treatment design. The injectable hydrogel is a splendid alternate technique to enhance healing efficiency post-implantation via injectable or 3D-bioprinting technologies. The authentic combination of natural and synthetic polymers could potentially enhance the injectability and biocompatibility properties. Thus, the purpose of this study was to characterise a hybrid gelatin−PVA hydrogel crosslinked with genipin (GNP; natural crosslinker). In brief, gelatin (GE) and PVA were prepared in various concentrations (w/v): GE, GPVA3 (3% PVA), and GPVA5 (5% PVA), followed by a 0.1% (w/v) genipin (GNP) crosslink, to achieve polymerisation in three minutes. The physicochemical and biocompatibility properties were further evaluated. GPVA3_GNP and GPVA5_GNP with GNP demonstrated excellent physicochemical properties compared to GE_GNP and non-crosslinked hydrogels. GPVA5_GNP significantly displayed the optimum swelling ratio (621.1 ± 93.18%) and excellent hydrophilicity (38.51 ± 2.58°). In addition, GPVA5_GNP showed an optimum biodegradation rate (0.02 ± 0.005 mg/h) and the highest mechanical strength with the highest compression modulus (2.14 ± 0.06 MPa). In addition, the surface and cross-sectional view for scanning electron microscopy (SEM) displayed that all of the GPVA hydrogels have optimum average pore sizes (100−199 μm) with interconnected pores. There were no substantial changes in chemical analysis, including FTIR, XRD, and EDX, after PVA and GNP intervention. Furthermore, GPVA hydrogels influenced the cell biocompatibility, which successfully indicated >85% of cell viability. In conclusion, gelatin−PVA hydrogels crosslinked with GNP were proven to have excellent physicochemical, mechanical, and biocompatibility properties, as required for potential bioinks for chronic wound healing.

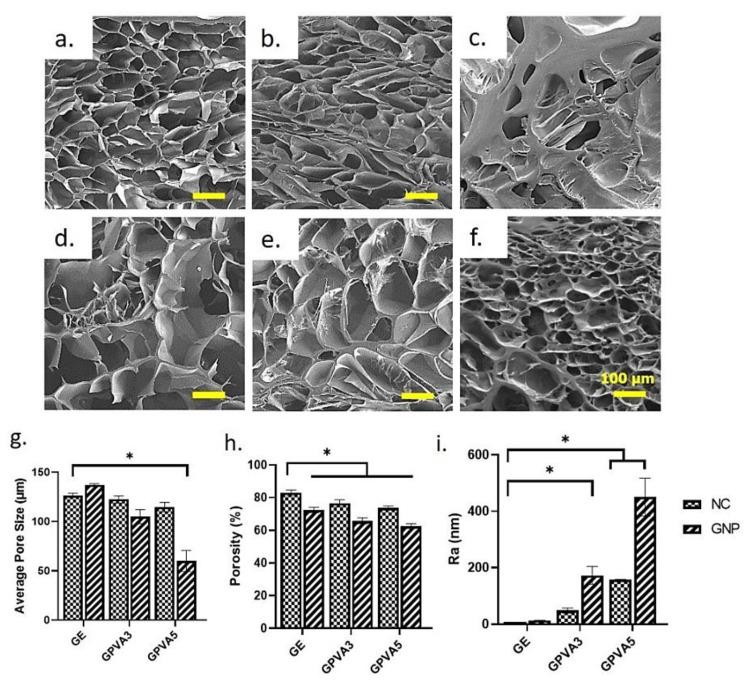

对于常见的三维泡沫、薄片或薄膜治疗设计而言,伤口形状不规则和深度各异可能是伤口愈合的主要障碍。可注射水凝胶是一种出色的替代技术,可通过注射或3D生物打印技术提高植入后的愈合效率。天然聚合物与合成聚合物的真正结合可能会增强可注射性和生物相容性。因此,本研究的目的是表征一种与京尼平(GNP;天然交联剂)交联的明胶-PVA混合水凝胶。简而言之,制备了不同浓度(w/v)的明胶(GE)和PVA:GE、GPVA3(3% PVA)和GPVA5(5% PVA),然后用0.1%(w/v)的京尼平(GNP)进行交联,在三分钟内实现聚合。进一步评估了其物理化学和生物相容性。与GE_GNP和未交联的水凝胶相比,含有GNP的GPVA3_GNP和GPVA5_GNP表现出优异的物理化学性质。GPVA5_GNP显著显示出最佳溶胀率(621.1±93.18%)和优异的亲水性(38.51±2.58°)。此外,GPVA5_GNP显示出最佳的生物降解率(0.02±0.005 mg/h)和最高的机械强度以及最高的压缩模量(2.14±0.06 MPa)。此外,扫描电子显微镜(SEM)的表面和横截面视图显示,所有GPVA水凝胶均具有最佳平均孔径(100-199μm)且孔隙相互连通。PVA和GNP干预后,包括FTIR、XRD和EDX在内的化学分析没有实质性变化。此外,GPVA水凝胶影响细胞生物相容性,成功表明细胞活力>85%。总之,与GNP交联的明胶-PVA水凝胶被证明具有优异的物理化学、机械和生物相容性,是慢性伤口愈合潜在生物墨水所必需的。
