用于高效多功能光(电子)和太阳能电池应用的潜在光学吸收体——环保薄膜的制备与表征

Fabrication and Characterization of Eco-Friendly Thin Films as Potential Optical Absorbers for Efficient Multi-Functional Opto-(Electronic) and Solar Cell Applications.

作者信息

El-Newehy Mohamed H, El-Mahalawy Ahmed M, Thamer Badr M, Moydeen Abdul Hameed Meera

机构信息

Department of Chemistry, College of Science, King Saud University, Riyadh 11451, Saudi Arabia.

Department of Chemistry, Faculty of Science, Tanta University, Tanta 31527, Egypt.

出版信息

Materials (Basel). 2023 Apr 29;16(9):3475. doi: 10.3390/ma16093475.

Abstract

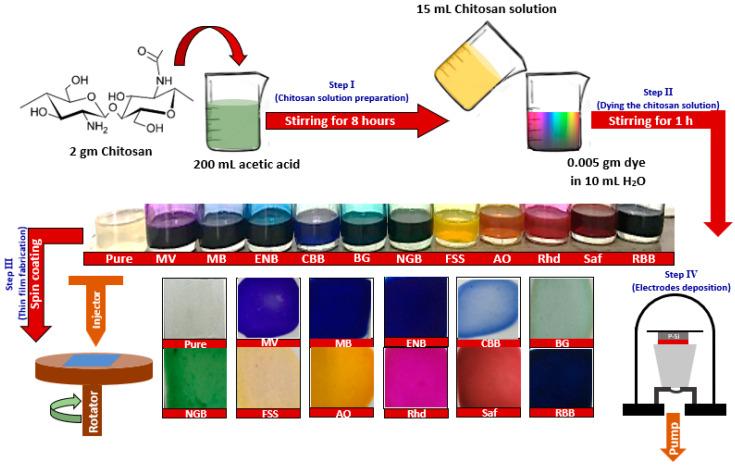

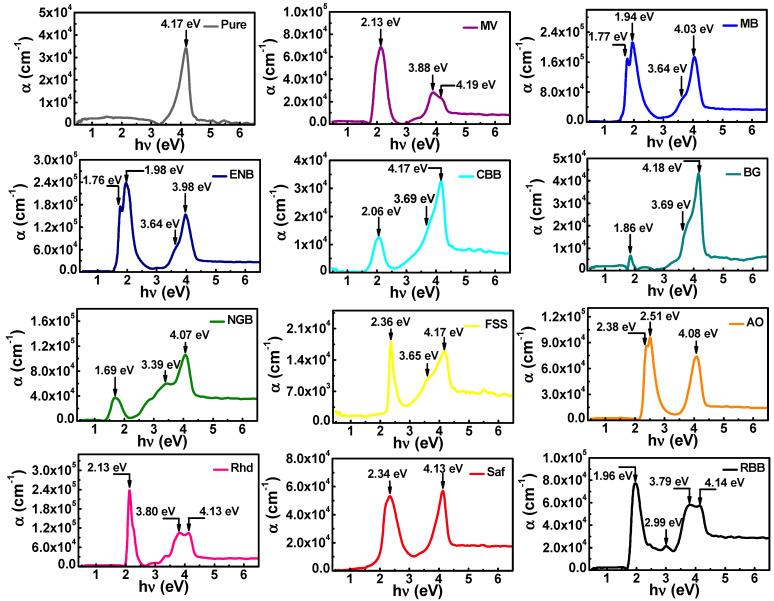

The necessity for reliable and efficient multifunctional optical and optoelectronic devices is always calling for the exploration of new fertile materials for this purpose. This study leverages the exploitation of dyed environmentally friendly biopolymeric thin films as a potential optical absorber in the development of multifunctional opto-(electronic) and solar cell applications. Uniform, stable thin films of dyed chitosan were prepared using a spin-coating approach. The molecular interactivity between the chitosan matrix and all the additive organic dyes was evaluated using FTIR measurements. The color variations were assessed using chromaticity (CIE) measurements. The optical properties of films were inspected using the measured UV-vis-NIR transmission and reflection spectra. The values of the energy gap and Urbach energy as well as the electronic parameters and nonlinear optical parameters of films were estimated. The prepared films were exploited for laser shielding as an attenuated laser cut-off material. In addition, the performance of the prepared thin films as an absorbing organic layer with silicon in an organic/inorganic heterojunction architecture for photosensing and solar energy conversion applicability was studied. The current-voltage relation under dark and illumination declared the suitability of this architecture in terms of responsivity and specific detectivity values for efficient light sensing applications. The suitability of such films for solar cell fabrications is due to some dyed films achieving open-circuit voltage and short-circuit current values, where Saf-dyed films achieved the highest (302 mV) while MV-dyed films achieved the highest (0.005 mA/cm). Finally, based on all the obtained characterization results, the engineered natural cost-effective dyed films are considered potential active materials for a wide range of optical and optoelectronic applications.

摘要

对可靠且高效的多功能光学和光电器件的需求一直促使人们为此探索新的优质材料。本研究利用对环境友好的染色生物聚合物薄膜作为潜在的光吸收剂,用于开发多功能光(电子)和太阳能电池应用。采用旋涂法制备了均匀、稳定的染色壳聚糖薄膜。利用傅里叶变换红外光谱(FTIR)测量评估壳聚糖基质与所有添加有机染料之间的分子相互作用。使用色度(CIE)测量评估颜色变化。通过测量紫外 - 可见 - 近红外透射和反射光谱来检查薄膜的光学性质。估算了薄膜的能隙和乌尔巴赫能量值以及电子参数和非线性光学参数。将制备的薄膜用作激光屏蔽材料,即作为衰减激光截止材料。此外,研究了制备的薄膜在有机/无机异质结结构中作为与硅结合的吸收有机层用于光传感和太阳能转换应用的性能。黑暗和光照条件下的电流 - 电压关系表明,就响应度和比探测率值而言,这种结构适用于高效光传感应用。此类薄膜适用于太阳能电池制造,是因为一些染色薄膜实现了开路电压和短路电流值,其中Saf染色的薄膜开路电压最高(302 mV),而MV染色的薄膜短路电流最高(0.005 mA/cm²)。最后,基于所有获得的表征结果,经设计的天然且具有成本效益的染色薄膜被认为是广泛光学和光电子应用的潜在活性材料。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f9e1/10180174/0e471ea59a32/materials-16-03475-g001.jpg
