Britton Chance Center for Biomedical Photonics, Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology, Wuhan 430074, China.
MoE Key Laboratory for Biomedical Photonics, School of Engineering Sciences, Innovation Institute, Huazhong University of Science and Technology, Wuhan 430074, China.
Cells. 2023 Nov 30;12(23):2753. doi: 10.3390/cells12232753.

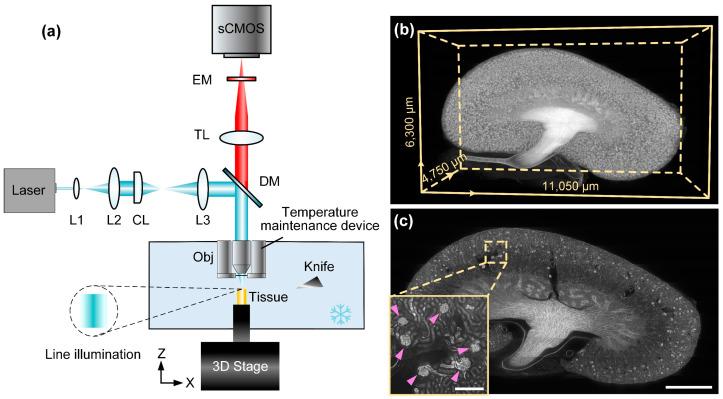

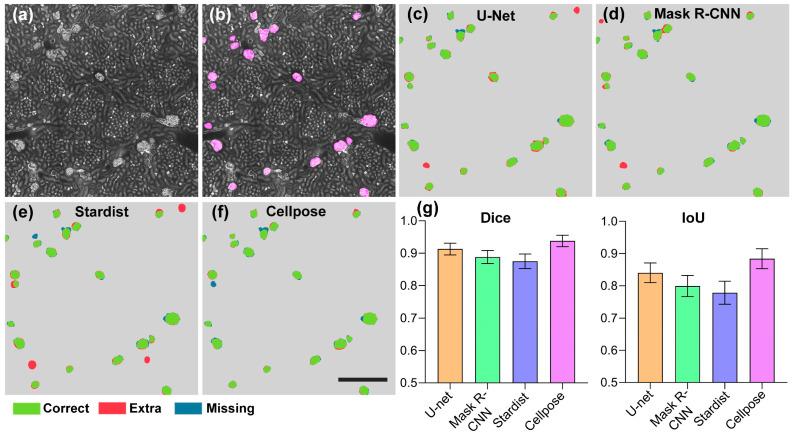

Automated evaluation of all glomeruli throughout the whole kidney is essential for the comprehensive study of kidney function as well as understanding the mechanisms of kidney disease and development. The emerging large-volume microscopic optical imaging techniques allow for the acquisition of mouse whole-kidney 3D datasets at a high resolution. However, fast and accurate analysis of massive imaging data remains a challenge. Here, we propose a deep learning-based segmentation method called FastCellpose to efficiently segment all glomeruli in whole mouse kidneys. Our framework is based on Cellpose, with comprehensive optimization in network architecture and the mask reconstruction process. By means of visual and quantitative analysis, we demonstrate that FastCellpose can achieve superior segmentation performance compared to other state-of-the-art cellular segmentation methods, and the processing speed was 12-fold higher than before. Based on this high-performance framework, we quantitatively analyzed the development changes of mouse glomeruli from birth to maturity, which is promising in terms of providing new insights for research on kidney development and function.
自动评估整个肾脏的所有肾小球对于全面研究肾脏功能以及理解肾脏疾病和发展的机制至关重要。新兴的大容量微观光学成像技术允许以高分辨率获取小鼠全肾 3D 数据集。然而,快速准确地分析大量成像数据仍然是一个挑战。在这里,我们提出了一种基于深度学习的分割方法,称为 FastCellpose,可有效地分割整个小鼠肾脏中的所有肾小球。我们的框架基于 Cellpose,并在网络架构和掩模重建过程中进行了全面优化。通过视觉和定量分析,我们证明 FastCellpose 与其他最先进的细胞分割方法相比,可以实现卓越的分割性能,处理速度比以前提高了 12 倍。基于这个高性能框架,我们定量分析了从出生到成熟过程中小鼠肾小球的发育变化,这有望为肾脏发育和功能的研究提供新的见解。
