Prosolov Konstantin A, Komarova Ekaterina G, Kazantseva Ekaterina A, Luginin Nikita A, Kashin Alexander D, Uvarkin Pavel V, Sharkeev Yurii P
Laboratory of Physics of Nanostructured Biocomposites, Institute of Strength Physics and Materials Science, Siberian Branch of Russian Academy of Sciences, 634055 Tomsk, Russia.
Polymers (Basel). 2024 Mar 15;16(6):826. doi: 10.3390/polym16060826.

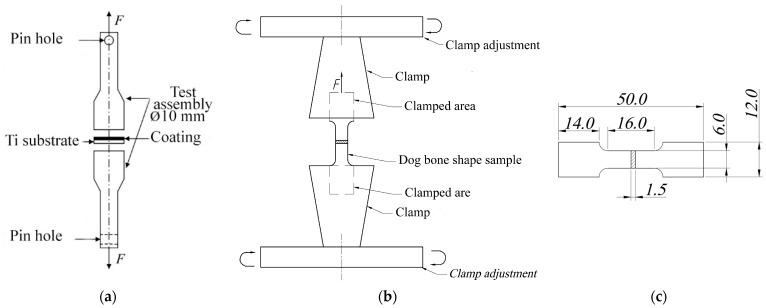

In addressing the challenge of enhancing orthopedic implants, 3D porous calcium phosphate (CaP) coatings on titanium (Ti) substrates modified with poly(lactic-co-glycolic acid) (PLGA) were proposed. CaP coatings on Ti were deposited using the ultrasonic-assisted micro-arc oxidation (UMAO) method, followed by modification with PLGA through a dip coating process at concentrations of 5%, 8%, and 10%. The addition of PLGA significantly improved adhesive-cohesive strength according to the scratch test, while PLGA to CaP adhesion was found to be not less than 8.1 ± 2.2 MPa according to the peel test. Tensile testing showed a typical fracture of CaP coatings and mechanisms of brittle fracture. Corrosion resistance, assessed via gravimetric and electrochemical methods in 0.9% NaCl and PBS solutions, revealed PLGA's substantial reduction in corrosion rates, with the corrosion current decreasing by two orders of magnitude even for the 5% PLGA/CaP/Ti sample. Also, the PLGA layer significantly enhanced the impedance modulus by two orders of magnitude, indicating a robust barrier against corrosion at all PLGA concentrations. Higher PLGA concentrations offered even greater corrosion resistance and improved mechanical properties. This research underscores the potential of using CaP- and PLGA-modified coatings to extend the life and functionality of orthopedic implants, addressing a significant challenge in biomedical engineering.
为应对增强骨科植入物的挑战,提出了在经聚乳酸 - 乙醇酸共聚物(PLGA)改性的钛(Ti)基体上制备三维多孔磷酸钙(CaP)涂层的方法。采用超声辅助微弧氧化(UMAO)法在Ti上沉积CaP涂层,随后通过浸涂工艺在5%、8%和10%的浓度下用PLGA进行改性。划痕试验表明,PLGA的添加显著提高了粘附 - 内聚强度,而剥离试验表明PLGA与CaP的粘附力不低于8.1±2.2MPa。拉伸试验显示了CaP涂层的典型断裂和脆性断裂机制。通过重量法和电化学方法在0.9%NaCl和PBS溶液中评估耐腐蚀性,结果表明PLGA显著降低了腐蚀速率,即使对于5%PLGA/CaP/Ti样品,腐蚀电流也降低了两个数量级。此外,PLGA层使阻抗模量显著提高了两个数量级,表明在所有PLGA浓度下都具有强大的耐腐蚀屏障。较高的PLGA浓度提供了更高的耐腐蚀性和更好的机械性能。这项研究强调了使用CaP和PLGA改性涂层来延长骨科植入物的寿命和功能的潜力,解决了生物医学工程中的一个重大挑战。
