Accuracy of an Electronic Apex Locator (EAL) in Measuring the Working Length of Root Canals in Comparison With Radiographs: An In Vivo Study.

INTRODUCTION

Traditionally, radiographs were used to assess the working length of root canals. However, the use of Electronic Apex Locators (EAL) may be a non-invasive alternative. This study aimed to evaluate the accuracy of the electronic apex locator (EAL) compared to radiographic measurements in determining the working length of root canals.

METHOD

The study assessed the performance of EALs in different scenarios, including the presence of blood and pulp tissue, the use of ethylenediaminetetraacetic acid (EDTA), sodium hypochlorite (NaOCl) as an irrigant, and post-instrumentation with normal saline. An electronic apex locator (DTE DPEX-V; Woodpecker, China) was used alongside traditional radiographs to measure the working length in 144 root canal treatments. Bland-Altman analysis was used to compare the measurements between EAL and radiographs using Jamovi software, v2.4.8 (https://www.jamovi.org/).

RESULT

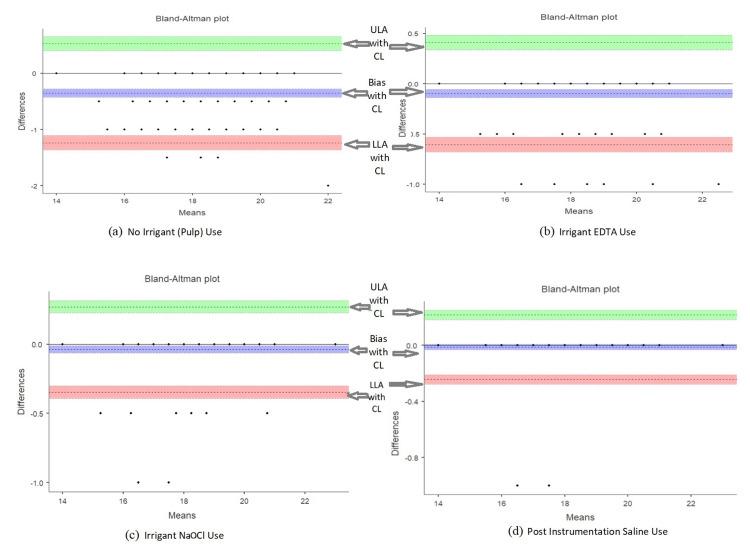

The findings revealed strong correlations between EAL and radiographic measurements across all testing environments, with Pearson's correlation coefficients ranging from 0.944 to 0.998. The Bland-Altman analysis suggests bias; the average difference was negative and close to zero (Pulp: -0.354, EDTA: -0.0972, NaOCl: -0.0382, Saline: -0.0139) when EAL measurements were compared to radiographic measurements.

CONCLUSION

The working length measurement of root canals using an electronic apex locator such as DTE DPEX-V is comparable to traditional radiographic measurements. The use of irrigants improves the measurement. The EAL has the potential to be an alternative to the invasive radiograph for root canal length measurement.
