Dual Attention-Based 3D U-Net Liver Segmentation Algorithm on CT Images.

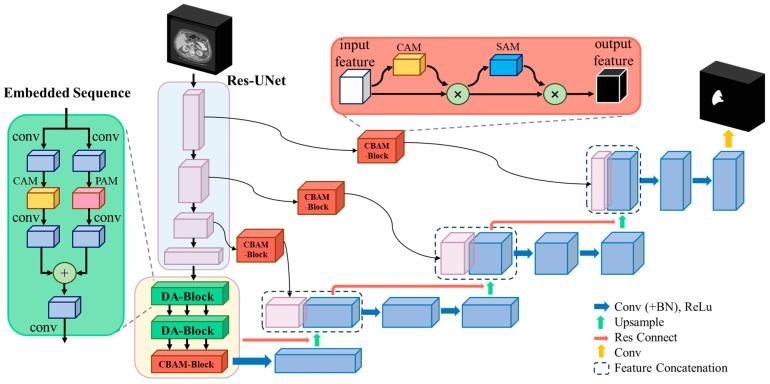

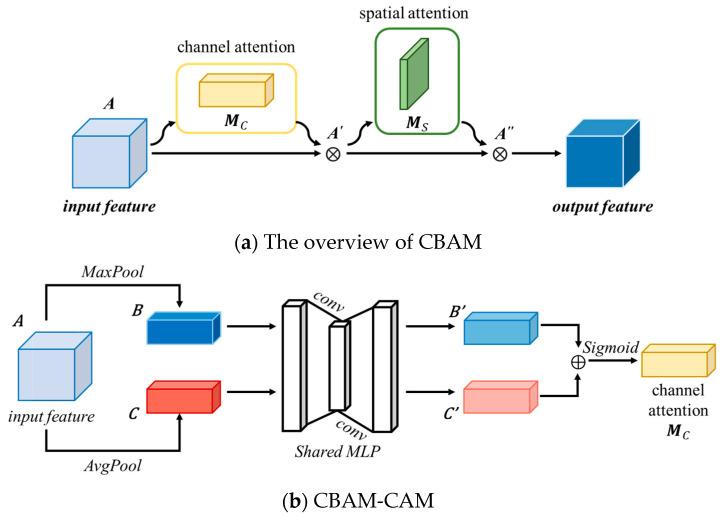

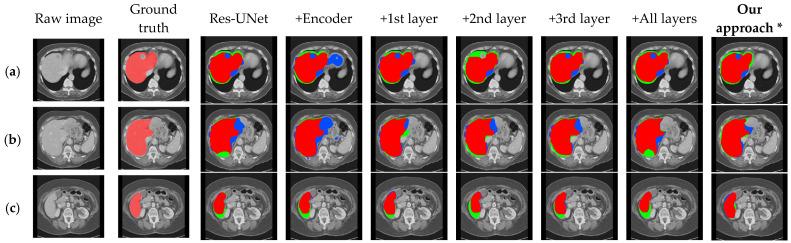

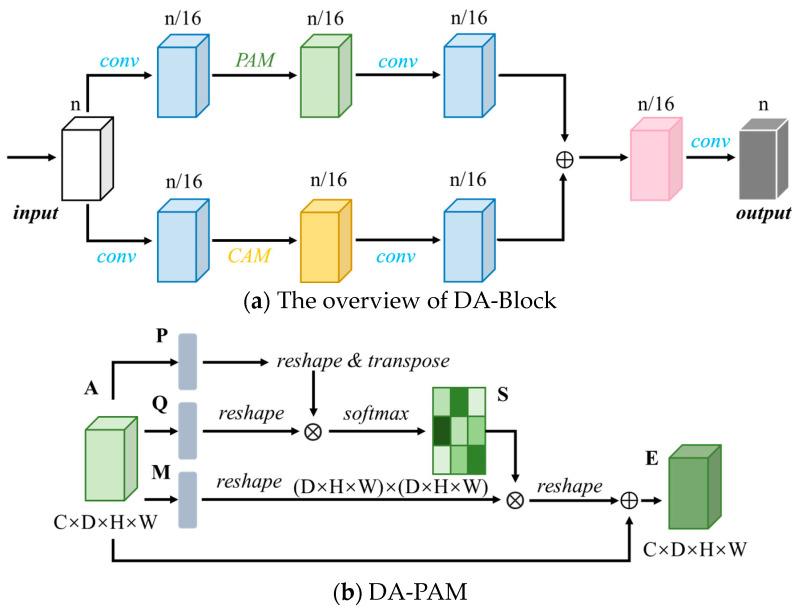

The liver is a vital organ in the human body, and CT images can intuitively display its morphology. Physicians rely on liver CT images to observe its anatomical structure and areas of pathology, providing evidence for clinical diagnosis and treatment planning. To assist physicians in making accurate judgments, artificial intelligence techniques are adopted. Addressing the limitations of existing methods in liver CT image segmentation, such as weak contextual analysis and semantic information loss, we propose a novel Dual Attention-Based 3D U-Net liver segmentation algorithm on CT images. The innovations of our approach are summarized as follows: (1) We improve the 3D U-Net network by introducing residual connections to better capture multi-scale information and alleviate semantic information loss. (2) We propose the DA-Block encoder structure to enhance feature extraction capability. (3) We introduce the CBAM module into skip connections to optimize feature transmission in the encoder, reducing semantic gaps and achieving accurate liver segmentation. To validate the effectiveness of the algorithm, experiments were conducted on the LiTS dataset. The results showed that the Dice coefficient and HD95 index for liver images were 92.56% and 28.09 mm, respectively, representing an improvement of 0.84% and a reduction of 2.45 mm compared to 3D Res-UNet.
