用于诊疗应用的酪蛋白包被且负载药物的磁性纳米颗粒的设计与表征
Design and characterisation of casein coated and drug loaded magnetic nanoparticles for theranostic applications.
作者信息
Wenck Christina, Meier Nils, Heinrich Eilien, Grützner Verena, Wiekhorst Frank, Bleul Regina
机构信息
Fraunhofer Institute for Microengineering and Microsystems IMM Carl-Zeiss-Str. 18-20 55129 Mainz Germany
Metrology for Magnetic Nanoparticles, Physikalisch-Technische Bundesanstalt Abbestr. 2-12 10587 Berlin Germany.
出版信息
RSC Adv. 2024 Aug 20;14(36):26388-26399. doi: 10.1039/d4ra02626h. eCollection 2024 Aug 16.

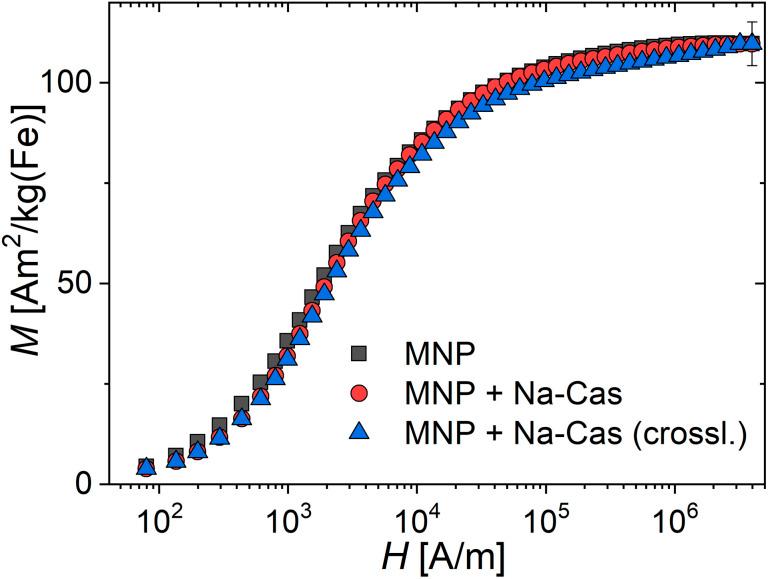

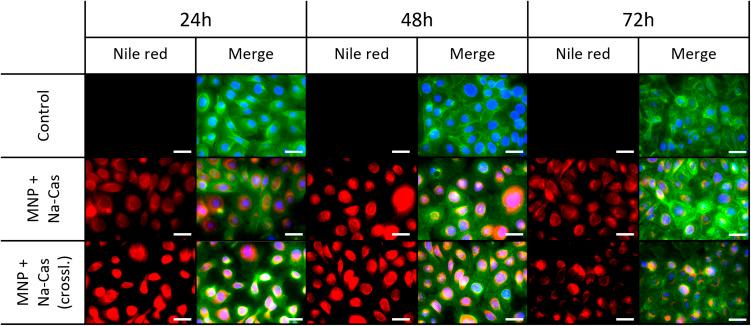

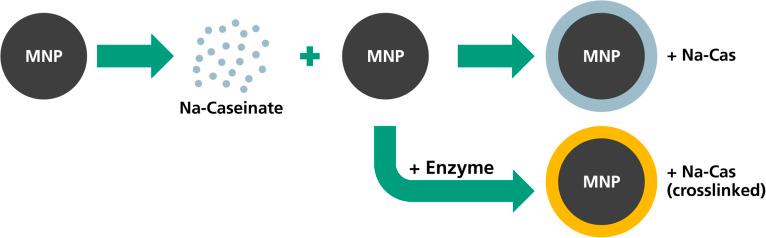

Theranostic systems enable early cancer diagnostic and treatment. In this work, we prepared Na-caseinate coated magnetic nanoparticles (MNP) to assess their capability as a theranostic system. This system enables monitoring by magnetic particle imaging (MPI), drug delivery and magnetic hyperthermia. MNP were synthesized in a continuous flow, coated with Na-caseinate and enzymatically crosslinked with transglutaminase to increase their colloidal stability and enable drug loading. They were investigated concerning their magnetic behaviour by DC magnetization measurements (DCM), magnetic particle spectroscopy (MPS) and AC-magnetometry to evaluate their suitability for MPI and hyperthermia. Further, their stability in different salt solutions as well as their encapsulation efficiency with a hydrophobic model drug (nile red), cell viability and uptake were investigated. Our results show that the Na-caseinate coating of MNP marginally effects the magnetic behaviour of the MNP with a consistent magnetization saturation of 109(5) A m per kg(Fe) for uncoated and casein coated MNP and with a decrease of <15% of *, but only a slight decrease of 2% of / for Na-caseinate coated MNP. Furthermore, the Na-caseinate coating of MNP increased their salt stability, under unchanged magnetic behaviour. Drug loading (up to ∼75%) and release kinetics such as the delivery into cutaneous squamous cell carcinoma cells (SCL-1) was shown. Our results demonstrate that casein coated MNP are highly promising candidates for theranostic applications in drug delivery, magnetic hyperthermia and magnetic particle imaging.
诊疗系统能够实现癌症的早期诊断和治疗。在本研究中,我们制备了酪蛋白酸钠包被的磁性纳米颗粒(MNP),以评估其作为诊疗系统的能力。该系统能够通过磁粒子成像(MPI)进行监测、实现药物递送和磁热疗。MNP采用连续流动法合成,用酪蛋白酸钠包被,并通过转谷氨酰胺酶进行酶交联,以提高其胶体稳定性并实现药物负载。通过直流磁化测量(DCM)、磁粒子光谱(MPS)和交流磁强计研究了它们的磁行为,以评估其在MPI和热疗方面的适用性。此外,还研究了它们在不同盐溶液中的稳定性以及对疏水性模型药物(尼罗红)的包封效率、细胞活力和摄取情况。我们的结果表明,MNP的酪蛋白酸钠包被对MNP的磁行为影响较小,未包被和酪蛋白包被的MNP的饱和磁化强度均为109(5) A m/kg(Fe),*降低了<15%,但酪蛋白酸钠包被的MNP的/仅略有降低2%。此外,MNP的酪蛋白酸钠包被在磁行为不变的情况下提高了其盐稳定性。展示了药物负载(高达约75%)和释放动力学,如向皮肤鳞状细胞癌细胞(SCL-1)的递送。我们的结果表明,酪蛋白包被的MNP是药物递送、磁热疗和磁粒子成像等诊疗应用中极具潜力的候选材料。
