Laminin 332 functionalized surface improve implant roughness and oral keratinocyte bioactivity.

OBJECTIVE

The biological seal (BS) at the implant-tissue interface is essential for the success of dental implants (DIs), and the absence of a proper BS can lead to peri-implantitis. The basement membrane (BM) and junctional epithelium are critical for sealing the peri-implant mucosa, and laminin 332 is an important protein in binding the epithelium to the implant surface. The aim of this study was to evaluate the response of oral keratinocytes to titanium dental implant surfaces biofunctionalized with laminin 332.

DESIGN

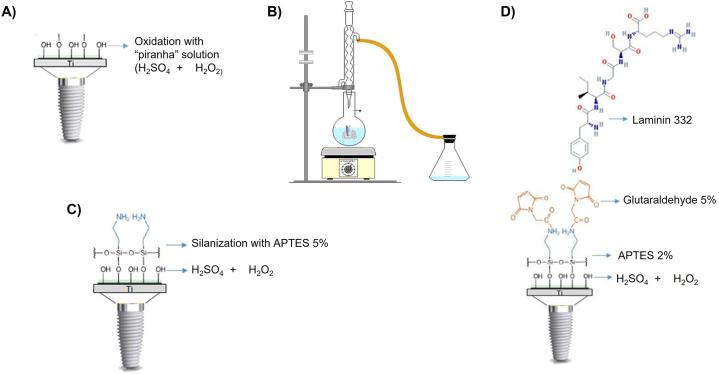

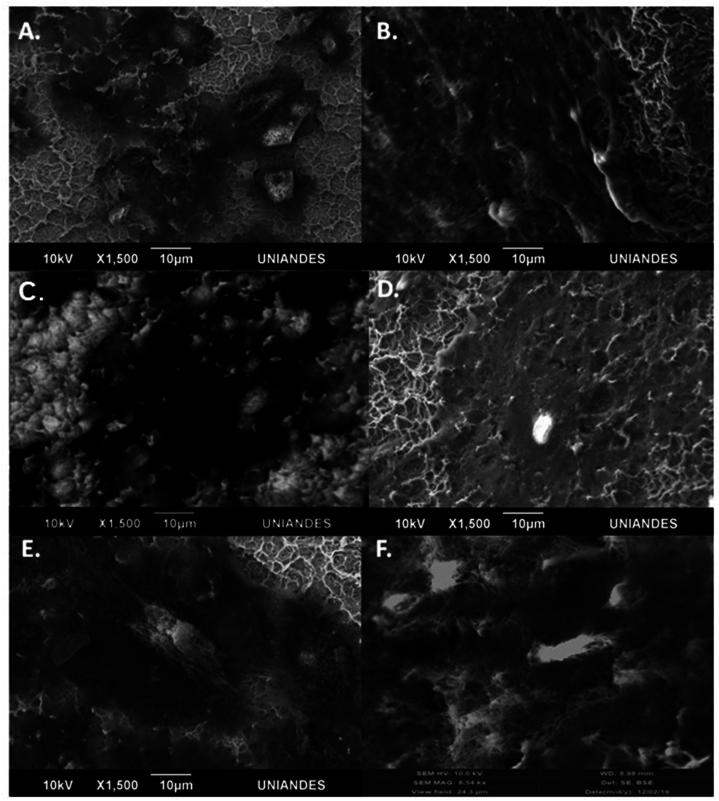

The dental implant surface was treated with a piranha solution to create hydroxyl (OH) groups, facilitating biofunctionalization with laminin 332. The modified surface underwent scanning electron microscopy, surface roughness evaluation, and chemical composition analysis. Human keratinocytes from the Cal-27 line were then cultured on the modified implants for 24 and 48 h to assess viability, morphology, cytokine secretion, and mRNA expression of tissue repair-associated genes.

RESULTS

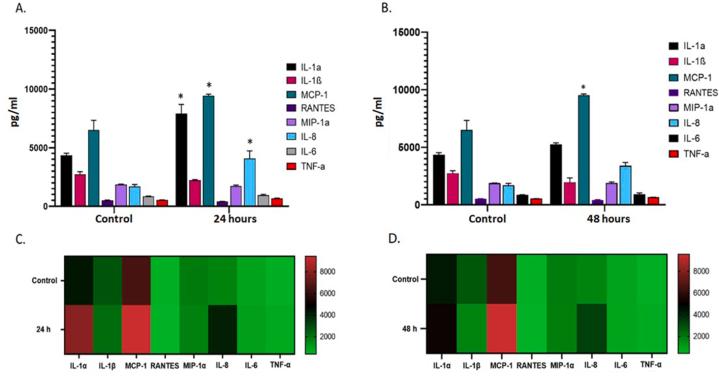

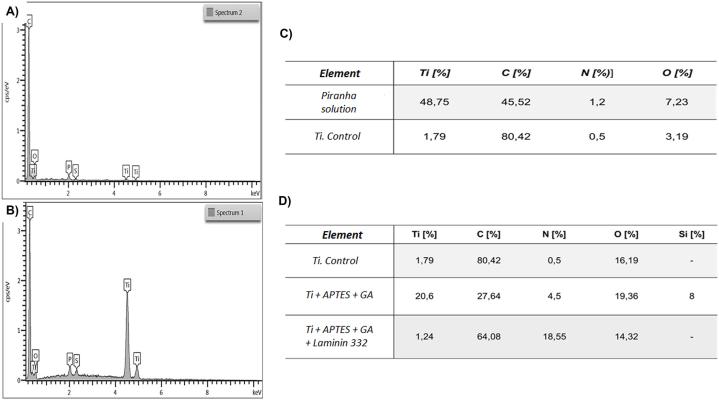

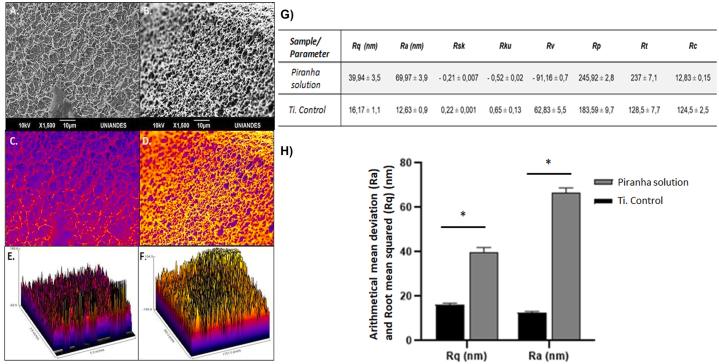

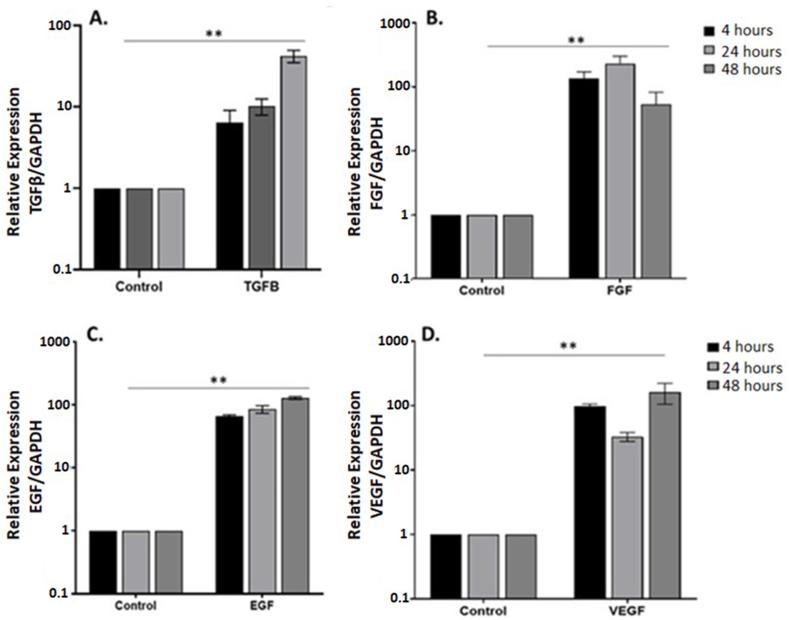

The results showed that laminin 332 biofunctionalization of the implant surface resulted in lower values of Ra, Rq and positive surface roughness parameters Rsk, Rku and Rv. The elemental composition showed an increase in nitrogen and carbon content corresponding to protein binding. The biofunctionalized surfaces did not affect cell viability and promoted cytokine secretion (IL-1a and IL-8) and a significant increase (p < 0.05) in MCP-1, EGF, FGF, TGF and VEGF gene expression compared to the control.

CONCLUSION

In conclusion, laminin 332 coating Ti implants was shown to be effective in promoting keratinocyte adhesion, spreading, and viability. This approach could be an alternative way to improve biocompatibility.
