一种用于在3D打印表面固定抗体的简便表面修饰策略。

A Facile Surface Modification Strategy for Antibody Immobilization on 3D-Printed Surfaces.

作者信息

Binkley Brandi, Li Peng

机构信息

Department of Chemistry, West Virginia University, Morgantown, WV 26506, USA.

出版信息

Biosensors (Basel). 2025 Mar 25;15(4):211. doi: 10.3390/bios15040211.


DOI:10.3390/bios15040211
PMID:40277525
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC12024930/
Abstract

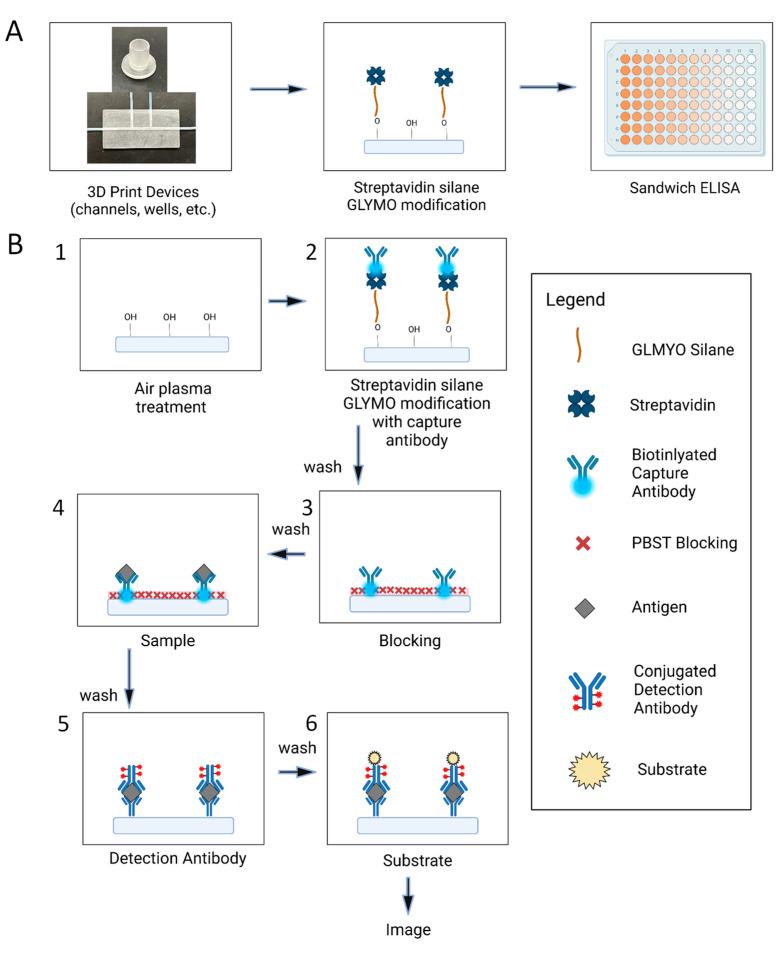

3D-printed microdevices have become increasingly important to the advancement of point-of-care (POC) immunoassays. Despite its great potential, using 3D-printed surfaces on the solid support for immunorecognition has been limited due to the non-ideal adsorption properties for many photocurable resins. In this work, we report a simple surface modification protocol that works for diverse commercial photocurable resins, improving ELISAs performed directly on 3D-printed devices. This surface modification strategy involves surface activation via air plasma followed by the one-step incubation of GLYMO-labeled streptavidin. We successfully immobilized biotinylated anti-activin A antibodies on the 3D-printed surfaces and performed the complete ELISA protocol on the 3D-printed surfaces. We demonstrated that this protocol achieved an improved performance over passive adsorption for ELISAs. The present method is also compatible with diverse commercial resins and works with both microwells and microchannels. Finally, this method demonstrated a comparable limit of detection to the ELISA performed using commercial microwells. We believe the simplicity and broad compatibility of the present surface modification strategy will facilitate the development of 3D-printed POC ELISA devices.

摘要

3D打印微器件对于即时检测(POC)免疫分析的发展变得越来越重要。尽管具有巨大潜力,但由于许多光固化树脂的吸附性能不理想,在用于免疫识别的固体支持物上使用3D打印表面受到了限制。在这项工作中,我们报告了一种简单的表面修饰方案,该方案适用于多种商用光固化树脂,可改善直接在3D打印器件上进行的酶联免疫吸附测定(ELISA)。这种表面修饰策略包括通过空气等离子体进行表面活化,然后一步孵育GLYMO标记的链霉亲和素。我们成功地将生物素化的抗激活素A抗体固定在3D打印表面上,并在3D打印表面上完成了完整的ELISA方案。我们证明,该方案在ELISA中比被动吸附具有更好的性能。本方法还与多种商用树脂兼容,适用于微孔和微通道。最后,该方法的检测限与使用商用微孔进行的ELISA相当。我们相信,本表面修饰策略的简单性和广泛兼容性将促进3D打印POC ELISA器件的开发。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/140a416afceb/biosensors-15-00211-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/fb11804a20e5/biosensors-15-00211-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/2933d5e9a6e9/biosensors-15-00211-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/0a7ab44666c8/biosensors-15-00211-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/5a806f2f58d5/biosensors-15-00211-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/c4d13e75ed6e/biosensors-15-00211-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/140a416afceb/biosensors-15-00211-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/fb11804a20e5/biosensors-15-00211-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/2933d5e9a6e9/biosensors-15-00211-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/0a7ab44666c8/biosensors-15-00211-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/5a806f2f58d5/biosensors-15-00211-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/c4d13e75ed6e/biosensors-15-00211-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/2e2e/12024930/140a416afceb/biosensors-15-00211-g006.jpg
