Predoi Daniela, Iconaru Simona Liliana, Deniaud Aurélien, Chevallet Mireille, Michaud-Soret Isabelle, Buton Nicolas, Prodan Alina Mihaela
National Institute of Materials Physics, P.O. Box MG 07, 07725 Magurele, Romania.
CNRS, Laboratoire de Chimie et Biologie des Métaux (LCBM) UMR 5249 CNRS-CEA-UJF, F-38054 Grenoble, France.
Materials (Basel). 2017 Feb 25;10(3):229. doi: 10.3390/ma10030229.

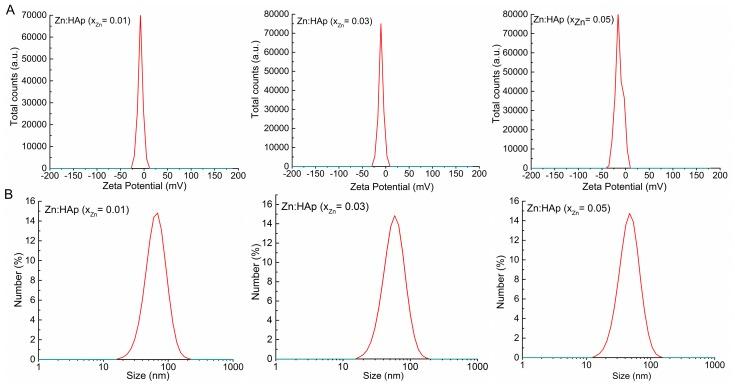

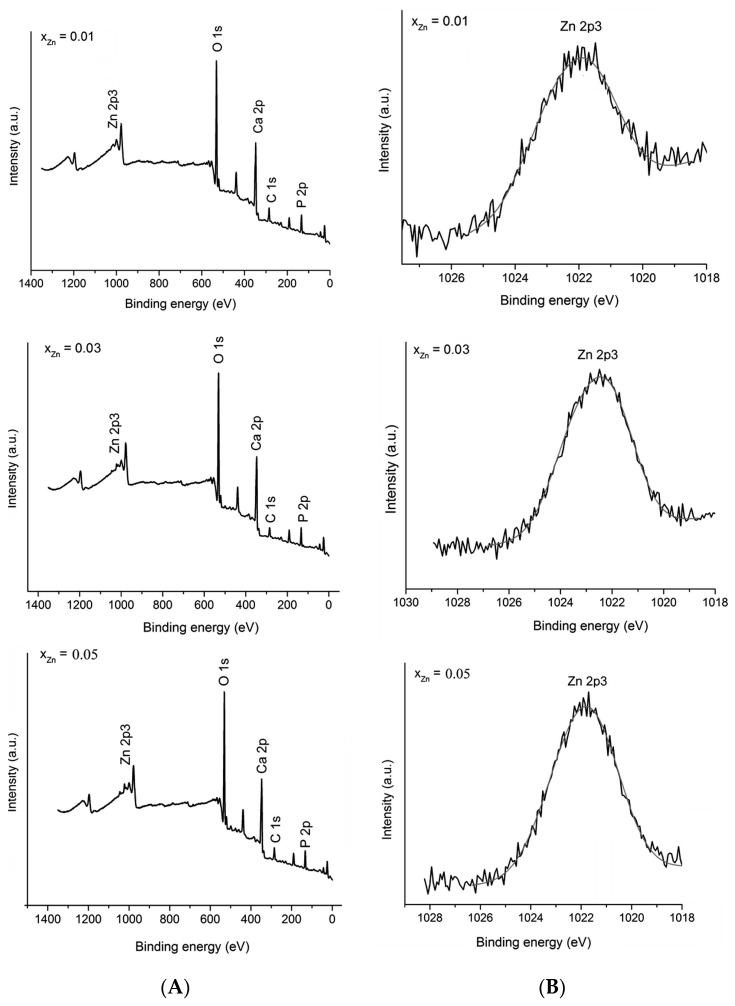

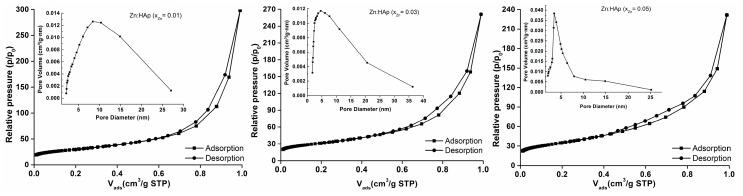

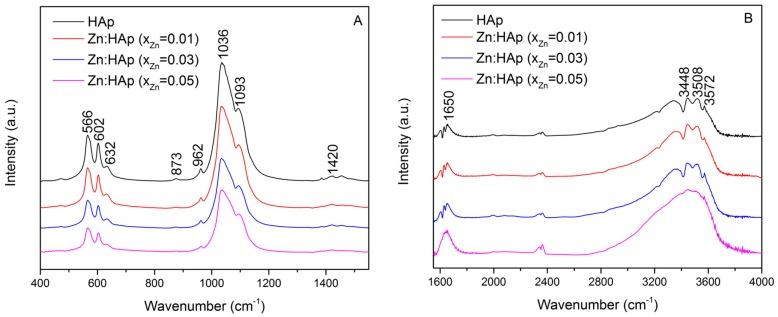

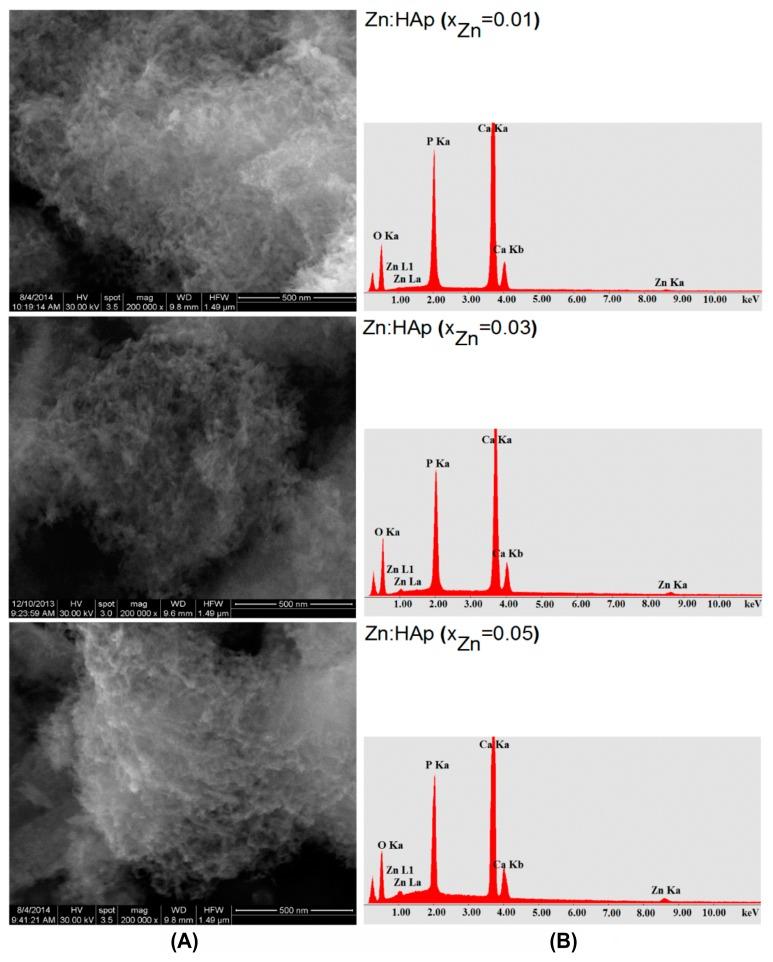

The present work was focused on the synthesis and characterization of hydroxyapatite doped with low concentrations of zinc (Zn:HAp) (0.01 < < 0.05). The incorporation of low concentrations of Zn ions in the hydroxyapatite (HAp) structure was achieved by co-precipitation method. The physico-chemical properties of the samples were characterized by X-ray Diffraction (XRD), Fourier Transform Infrared Spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS), Scanning Electron Microscopy (SEM), zeta-potential, and DLS and N₂-BET measurements. The results obtained by XRD and FTIR studies demonstrated that doping hydroxyapatite with low concentrations of zinc leads to the formation of a hexagonal structure with lattice parameters characteristic to hydroxyapatite. The XRD studies have also shown that the crystallite size and lattice parameters of the unit cell depend on the substitutions of Ca with Zn in the apatitic structure. Moreover, the FTIR analysis revealed that the water content increases with the increase of zinc concentration. Furthermore, the Energy Dispersive X-ray Analysis (EDAX) and XPS analyses showed that the elements Ca, P, O, and Zn were found in all the Zn:HAp samples suggesting that the synthesized materials were zinc doped hydroxyapatite, CaZn(PO₄)₆(OH), with 0.01 ≤ ≤ 0.05. Antimicrobial assays on and bacterial strains and HepG2 cell viability assay were carried out.
本工作聚焦于低浓度锌掺杂羟基磷灰石(Zn:HAp)(0.01< <0.05)的合成与表征。通过共沉淀法实现了在羟基磷灰石(HAp)结构中掺入低浓度的锌离子。采用X射线衍射(XRD)、傅里叶变换红外光谱(FTIR)、X射线光电子能谱(XPS)、扫描电子显微镜(SEM)、zeta电位、动态光散射(DLS)以及N₂-BET测量对样品的物理化学性质进行了表征。XRD和FTIR研究所得结果表明,低浓度锌掺杂羟基磷灰石会形成具有羟基磷灰石特征晶格参数的六方结构。XRD研究还表明,晶胞的微晶尺寸和晶格参数取决于磷灰石结构中钙被锌的取代情况。此外,FTIR分析显示,含水量随锌浓度的增加而增加。再者,能量色散X射线分析(EDAX)和XPS分析表明,在所有Zn:HAp样品中均发现了钙、磷、氧和锌元素,这表明合成材料为锌掺杂羟基磷灰石CaZn(PO₄)₆(OH),其中0.01≤ ≤0.05。对 和 细菌菌株进行了抗菌试验,并开展了HepG2细胞活力测定。
