Johns Hopkins University School of Medicine, Department of Radiation Oncology and Molecular Radiation Sciences, 1550 Orleans Street, CRB II, Baltimore, MD, 21231, USA.
Johns Hopkins Bloomberg School of Public Health, Department of Environmental Health Sciences, Baltimore, MD, 21205, USA.
Sci Rep. 2018 Mar 20;8(1):4916. doi: 10.1038/s41598-018-23317-2.

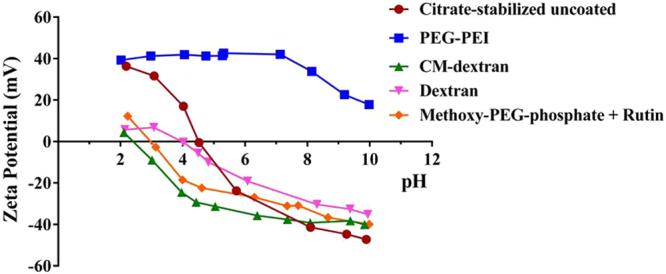

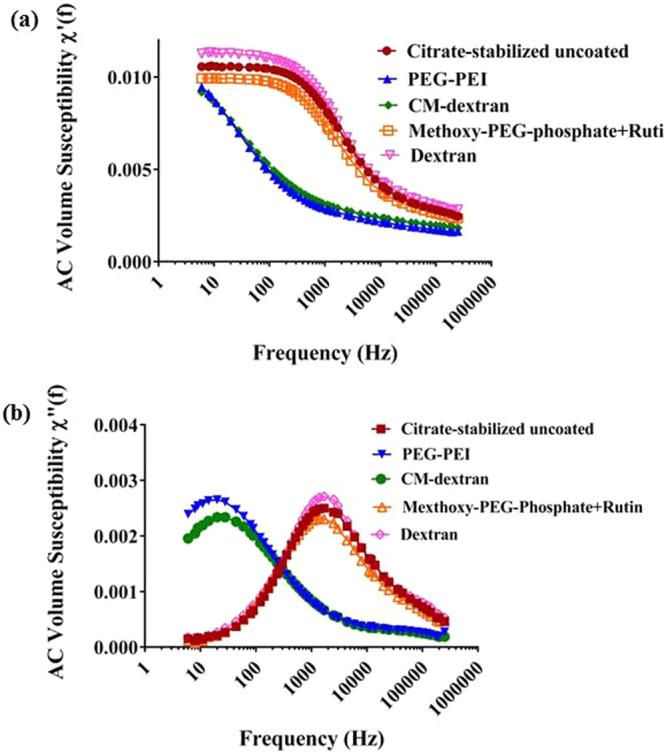

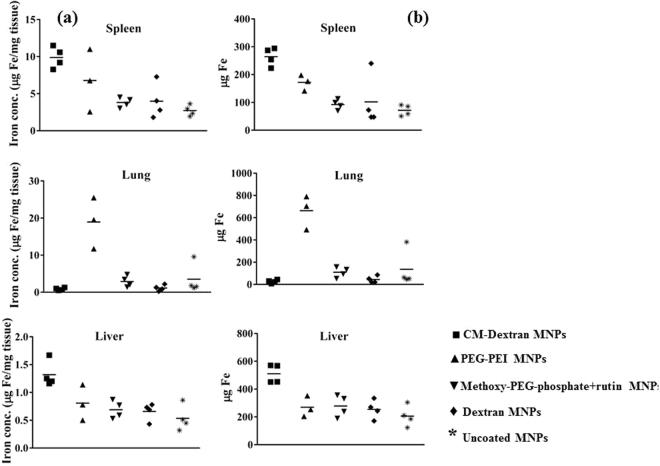

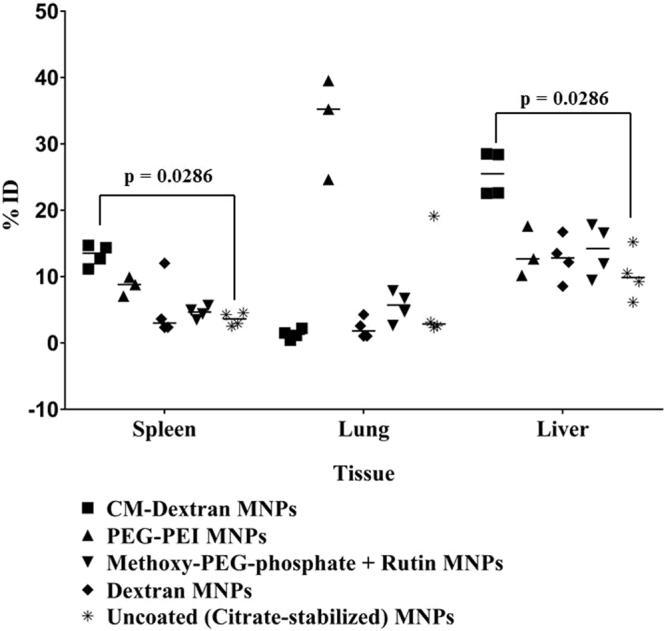

Citrate-stabilized iron oxide magnetic nanoparticles (MNPs) were coated with one of carboxymethyl dextran (CM-dextran), polyethylene glycol-polyethylene imine (PEG-PEI), methoxy-PEG-phosphate+rutin, or dextran. They were characterized for size, zeta potential, hysteresis heating in an alternating magnetic field, dynamic magnetic susceptibility, and examined for their distribution in mouse organs following intravenous delivery. Except for PEG-PEI-coated nanoparticles, all coated nanoparticles had a negative zeta potential at physiological pH. Nanoparticle sizing by dynamic light scattering revealed an increased nanoparticle hydrodynamic diameter upon coating. Magnetic hysteresis heating changed little with coating; however, the larger particles demonstrated significant shifts of the peak of complex magnetic susceptibility to lower frequency. 48 hours following intravenous injection of nanoparticles, mice were sacrificed and tissues were collected to measure iron concentration. Iron deposition from nanoparticles possessing a negative surface potential was observed to have highest accumulation in livers and spleens. In contrast, iron deposition from positively charged PEG-PEI-coated nanoparticles was observed to have highest concentration in lungs. These preliminary results suggest a complex interplay between nanoparticle size and charge determines organ distribution of systemically-delivered iron oxide magnetic nanoparticles.
柠檬酸稳定的氧化铁磁性纳米颗粒(MNPs)被包被上羧甲基葡聚糖(CM-葡聚糖)、聚乙二醇-聚亚乙基亚胺(PEG-PEI)、甲氧基-PEG-磷酸+芦丁或葡聚糖中的一种。对其大小、Zeta 电位、交变磁场中的磁滞加热、动态磁化率进行了表征,并在静脉给药后研究了其在小鼠器官中的分布。除了 PEG-PEI 包被的纳米颗粒外,所有包被的纳米颗粒在生理 pH 值下均具有负 Zeta 电位。动态光散射法测定纳米颗粒粒径显示包被后纳米颗粒水动力直径增大。磁滞加热变化不大,但较大的颗粒表现出复杂磁导率峰值向较低频率的显著偏移。静脉注射纳米颗粒 48 小时后,处死小鼠并收集组织以测量铁浓度。具有负表面电位的纳米颗粒中铁的沉积在肝脏和脾脏中的积累最高。相比之下,带正电荷的 PEG-PEI 包被的纳米颗粒中铁的沉积在肺部的浓度最高。这些初步结果表明,纳米颗粒大小和电荷之间的复杂相互作用决定了系统给药的氧化铁磁性纳米颗粒的器官分布。
