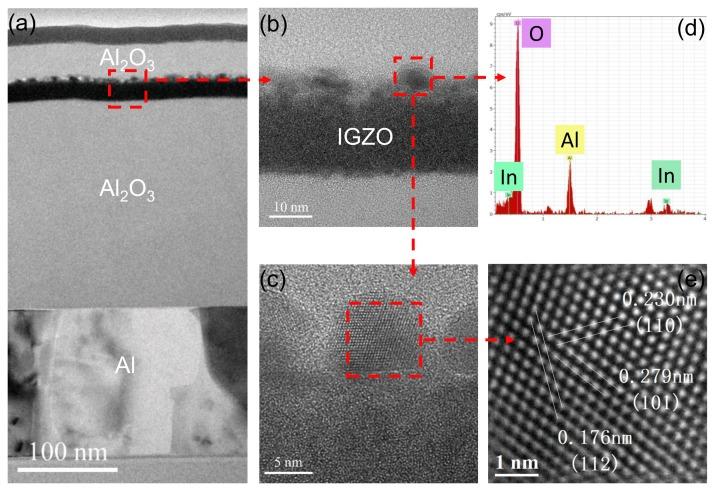

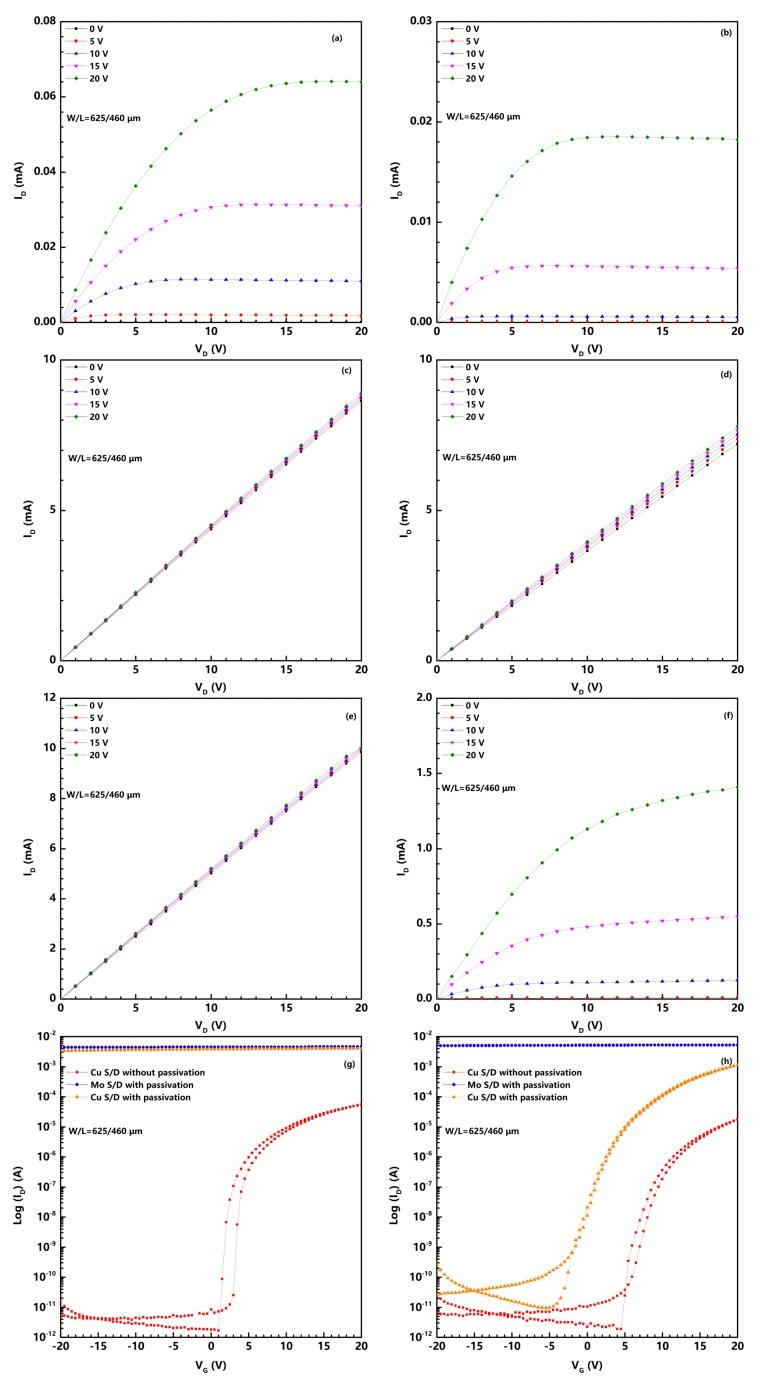

In this work, we fabricated a high-mobility amorphous indium-gallium-zinc-oxide (a-IGZO) thin-film transistor (TFT) based on alumina oxide (Al 2 O 3 ) passivation layer (PVL) and copper (Cu) source/drain electrodes (S/D). The mechanism of the high mobility for a-IGZO TFT was proposed and experimentally demonstrated. The conductivity of the channel layer was significantly improved due to the formation of metallic In nanoparticles on the back channel during Al 2 O 3 PVL sputtering. In addition, Ar atmosphere annealing induced the Schottky contact formation between the Cu S/D and the channel layer caused by Cu diffusion. In conjunction with high conductivity channel and Schottky contact, the a-IGZO TFT based on Cu S/D and Al 2 O 3 PVL exhibited remarkable mobility of 33.5-220.1 cm 2 /Vs when channel length varies from 60 to 560 μ m. This work presents a feasible way to implement high mobility and Cu electrodes in a-IGZO TFT, simultaneously.
在本工作中，我们基于氧化铝（Al₂O₃）钝化层（PVL）和铜（Cu）源极/漏极电极（S/D）制备了一种高迁移率非晶铟镓锌氧化物（a-IGZO）薄膜晶体管（TFT）。提出并通过实验证明了a-IGZO TFT具有高迁移率的机制。在Al₂O₃ PVL溅射过程中，由于在背沟道上形成了金属铟纳米颗粒，沟道层的电导率得到了显著提高。此外，氩气气氛退火导致Cu扩散，从而在Cu S/D与沟道层之间形成了肖特基接触。结合高导电沟道和肖特基接触，当沟道长度从60μm变化到560μm时，基于Cu S/D和Al₂O₃ PVL的a-IGZO TFT表现出33.5 - 220.1 cm²/Vs的显著迁移率。这项工作提出了一种在a-IGZO TFT中同时实现高迁移率和铜电极的可行方法。
