Magnetic particle imaging in vascular medicine.

作者信息

Bakenecker Anna C, Ahlborg Mandy, Debbeler Christina, Kaethner Christian, Buzug Thorsten M, Lüdtke-Buzug Kerstin

机构信息

Institute of Medical Engineering, University of Luebeck, Luebeck, Germany.

出版信息

Innov Surg Sci. 2018 Oct 9;3(3):179-192. doi: 10.1515/iss-2018-2026. eCollection 2018 Sep.


DOI:10.1515/iss-2018-2026
PMID:31579782
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC6604583/
Abstract

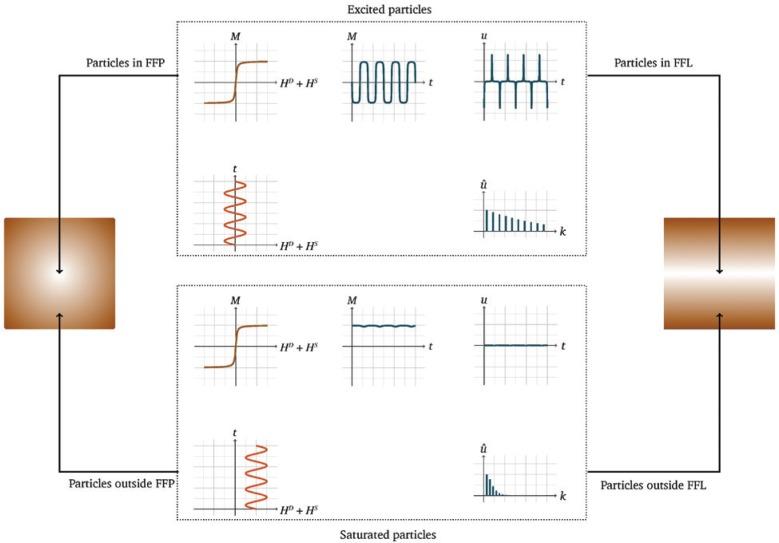

Magnetic particle imaging (MPI) is a new medical imaging technique that enables three-dimensional real-time imaging of a magnetic tracer material. Although it is not yet in clinical use, it is highly promising, especially for vascular and interventional imaging. The advantages of MPI are that no ionizing radiation is necessary, its high sensitivity enables the detection of very small amounts of the tracer material, and its high temporal resolution enables real-time imaging, which makes MPI suitable as an interventional imaging technique. As MPI is a tracer-based imaging technique, functional imaging is possible by attaching specific molecules to the tracer material. In the first part of this article, the basic principle of MPI will be explained and a short overview of the principles of the generation and spatial encoding of the tracer signal will be given. After this, the used tracer materials as well as their behavior in MPI will be introduced. A subsequent presentation of selected scanner topologies will show the current state of research and the limitations researchers are facing on the way from preclinical toward human-sized scanners. Furthermore, it will be briefly shown how to reconstruct an image from the tracer materials' signal. In the last part, a variety of possible future clinical applications will be presented with an emphasis on vascular imaging, such as the use of MPI during cardiovascular interventions by visualizing the instruments. Investigations will be discussed, which show the feasibility to quantify the degree of stenosis and diagnose strokes and traumatic brain injuries as well as cerebral or gastrointestinal bleeding with MPI. As MPI is not only suitable for vascular medicine but also offers a broad range of other possible applications, a selection of those will be briefly presented at the end of the article.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/b65fefe8cafc/iss-3-20182026-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/860a2c8e011f/iss-3-20182026-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/b2e794553dc2/iss-3-20182026-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/e801a606ace8/iss-3-20182026-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/161e77ecbeee/iss-3-20182026-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/cccaa5daae54/iss-3-20182026-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/0e5734fec5fc/iss-3-20182026-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/4ac45a464c37/iss-3-20182026-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/b65fefe8cafc/iss-3-20182026-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/860a2c8e011f/iss-3-20182026-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/b2e794553dc2/iss-3-20182026-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/e801a606ace8/iss-3-20182026-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/161e77ecbeee/iss-3-20182026-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/cccaa5daae54/iss-3-20182026-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/0e5734fec5fc/iss-3-20182026-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/4ac45a464c37/iss-3-20182026-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d9f8/6604583/b65fefe8cafc/iss-3-20182026-g008.jpg
