Kim Seung-Geun, Kim Seung-Hwan, Kim Gwang-Sik, Jeon Hyeok, Kim Taehyun, Yu Hyun-Yong
Department of Semiconductor Systems Engineering Korea University 145, Anam-ro, Seongbuk-gu Seoul 02841 Korea.
School of Electrical Engineering Korea University 145, Anam-ro, Seongbuk-gu Seoul 02841 Korea.
Adv Sci (Weinh). 2021 May 3;8(12):2100208. doi: 10.1002/advs.202100208. eCollection 2021 Jun.

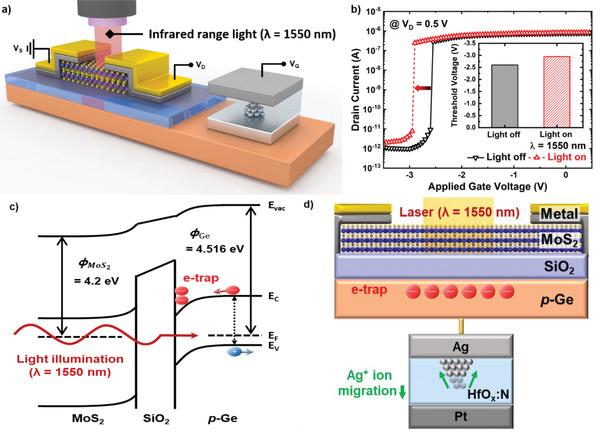

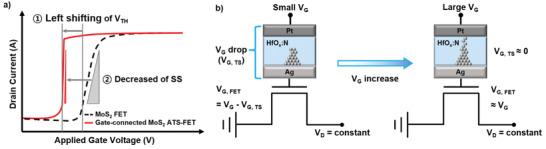

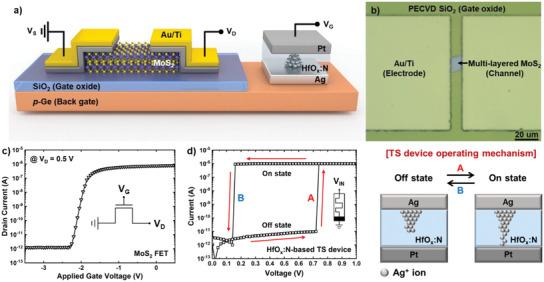

For next-generation electronics and optoelectronics, 2D-layered nanomaterial-based field effect transistors (FETs) have garnered attention as promising candidates owing to their remarkable properties. However, their subthreshold swings () cannot be lower than 60 mV/decade owing to the limitation of the thermionic carrier injection mechanism, and it remains a major challenge in 2D-layered nanomaterial-based transistors. Here, a gate-connected MoS atomic threshold switching FET using a nitrogen-doped HfO-based threshold switching (TS) device is developed. The proposed device achieves an extremely low of 11 mV/decade and a high on-off ratio of ≈10 by maintaining a high on-state drive current due to the steep switching of the TS device at the gate region. In particular, the proposed device can function as an infrared detectable phototransistor with excellent optical properties. The proposed device is expected to pave the way for the development of future 2D channel-based electrical and optical transistors.
对于下一代电子和光电子器件,基于二维层状纳米材料的场效应晶体管(FET)因其卓越的性能而备受关注,有望成为极具潜力的候选者。然而,由于热电子载流子注入机制的限制,其亚阈值摆幅()不能低于60 mV/十倍频程,这仍然是基于二维层状纳米材料的晶体管面临的一个主要挑战。在此,开发了一种使用氮掺杂氧化铪基阈值开关(TS)器件的栅极连接MoS原子阈值开关FET。所提出的器件通过在栅极区域的TS器件的陡峭开关,保持高导通状态驱动电流,实现了11 mV/十倍频程的极低亚阈值摆幅和≈10的高开/关比。特别是,所提出的器件可以作为具有优异光学性能的红外可检测光电晶体管发挥作用。所提出的器件有望为未来基于二维沟道的电气和光学晶体管的发展铺平道路。
