Rabai Selma, Teniou Ahlem, Catanante Gaëlle, Benounis Messaoud, Marty Jean-Louis, Rhouati Amina
Laboratory of Sensors, Instrumentations and Process (LCIP), University of Khenchela, Khenchela 40000, Algeria.
Bioengineering Laboratory, Higher National School of Biotechnology, Constantine 25100, Algeria.
Sensors (Basel). 2021 Dec 24;22(1):105. doi: 10.3390/s22010105.

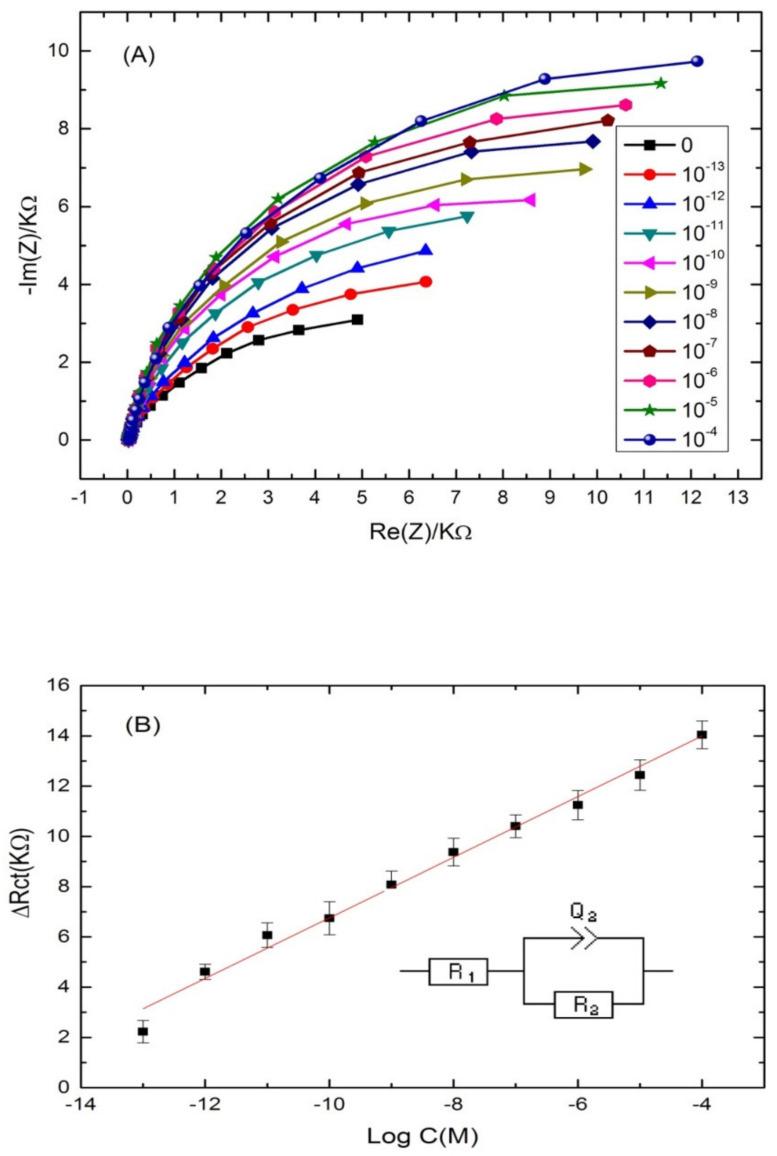

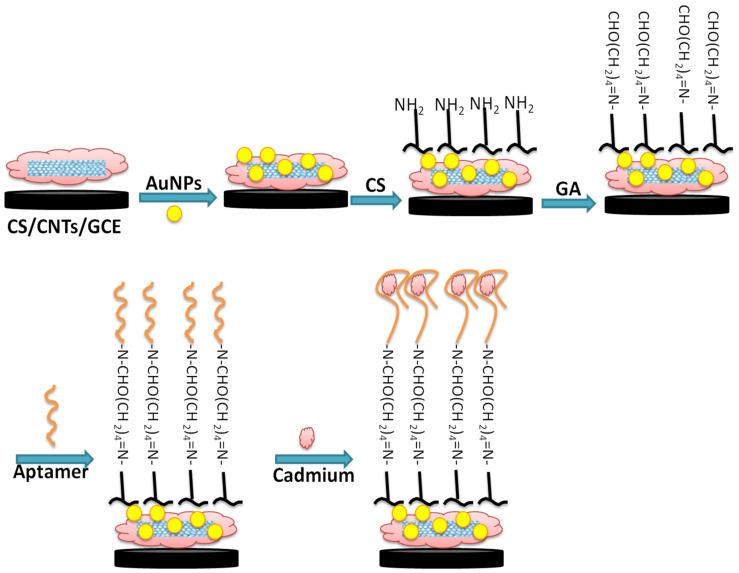

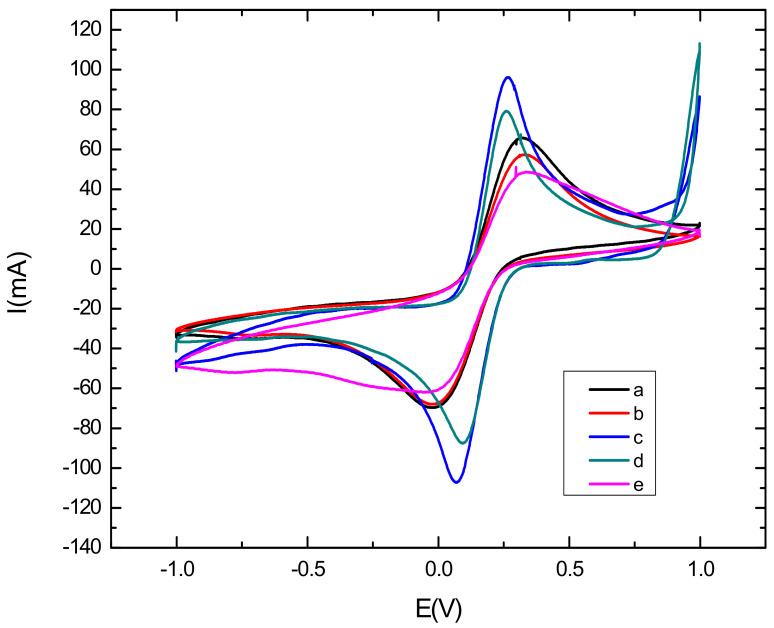

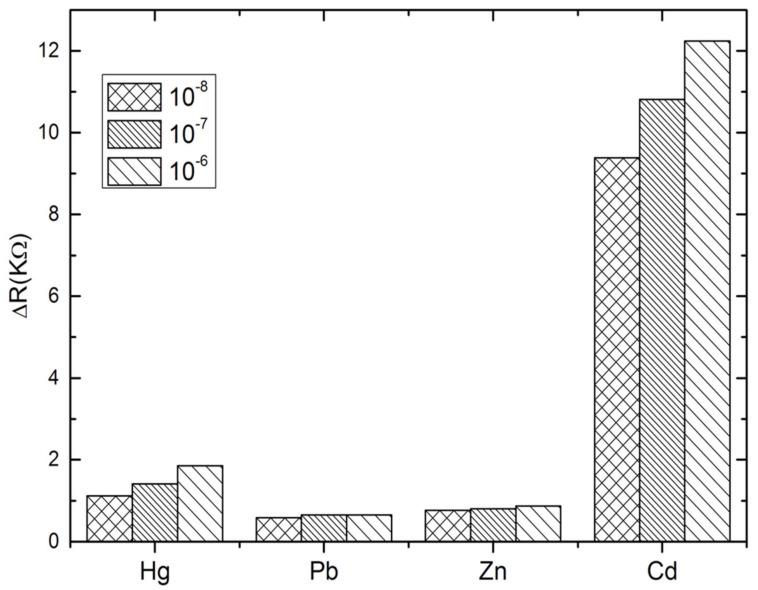

Cadmium (Cd) is one of the most toxic heavy metals causing serious health problems; thus, designing accurate analytical methods for monitoring such pollutants is highly urgent. Herein, we report a label-free electrochemical aptasensor for cadmium detection in water. For this, a nanocomposite combining the advantages of gold nanoparticles (AuNPs), carbon nanotubes (CNTs) and chitosan (Cs) was constructed and used as immobilization support for the cadmium aptamer. First, the surface of a glassy carbon electrode (GCE) was modified with CNTs-CS. Then, AuNPs were deposited on CNTs-CS/GCE using chrono-amperometry. Finally, the immobilization of the amino-modified Cd-aptamer was achieved via glutaraldehyde cross-linking. The different synthesis steps of the AuNPs/CNTs/CS nano assembly were characterized by cyclic voltammetry (CV). Electrochemical impedance spectroscopy (EIS) was employed for cadmium determination. The proposed biosensor exhibited excellent performances for cadmium detection at a low applied potential (-0.5 V) with a high sensitivity (1.2 KΩ·M), a detection limit of 0.02 pM and a wide linear range (10-10 M). Moreover, the aptasensor showed a good selectivity against the interfering ions: Pb; Hg and Zn. Our electrochemical biosensor provides a simple and sensitive approach for Cd detection in aqueous solutions, with promising applications in the monitoring of trace amounts of heavy metals in real samples.
镉(Cd)是毒性最强的重金属之一,会引发严重的健康问题;因此,设计精确的分析方法来监测此类污染物迫在眉睫。在此,我们报告一种用于检测水中镉的无标记电化学适体传感器。为此,构建了一种结合金纳米颗粒(AuNPs)、碳纳米管(CNTs)和壳聚糖(Cs)优点的纳米复合材料,并将其用作镉适体的固定支持物。首先,用碳纳米管-壳聚糖修饰玻碳电极(GCE)表面。然后,采用计时电流法将金纳米颗粒沉积在碳纳米管-壳聚糖/玻碳电极上。最后,通过戊二醛交联实现氨基修饰的镉适体的固定。通过循环伏安法(CV)对金纳米颗粒/碳纳米管/壳聚糖纳米组装体的不同合成步骤进行了表征。采用电化学阻抗谱(EIS)测定镉。所提出的生物传感器在低施加电位(-0.5 V)下对镉检测表现出优异性能,具有高灵敏度(1.2 KΩ·M)、0.02 pM的检测限和宽线性范围(10-10 M)。此外,该适体传感器对干扰离子Pb、Hg和Zn表现出良好的选择性。我们的电化学生物传感器为水溶液中镉的检测提供了一种简单且灵敏的方法,在实际样品中痕量重金属监测方面具有广阔应用前景。
