Veiko Vadim, Karlagina Yuliya, Zernitckaia Ekaterina, Egorova Elena, Radaev Maxim, Yaremenko Andrey, Chernenko Gennadiy, Romanov Valery, Shchedrina Nadezhda, Ivanova Elena, Chichkov Boris, Odintsova Galina
Institute of Laser Technologies, ITMO University, Saint-Petersburg 197101, Russia.
Department of Dental Surgery and Maxillofacial Surgery, Pavlov First Saint-Petersburg State Medical University, Saint-Petersburg 197022, Russia.
Nanomaterials (Basel). 2022 Nov 28;12(23):4229. doi: 10.3390/nano12234229.

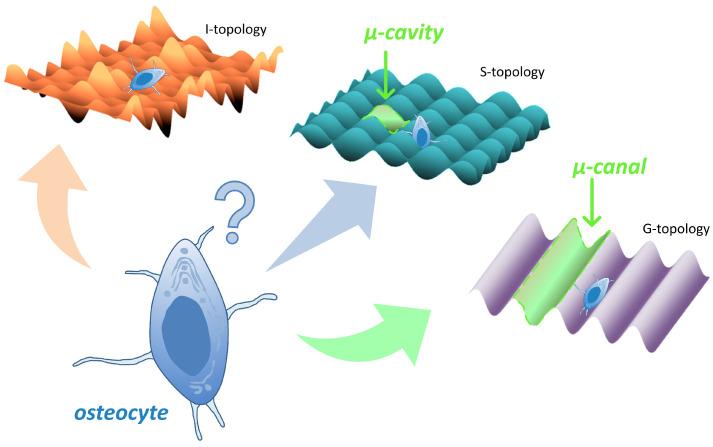

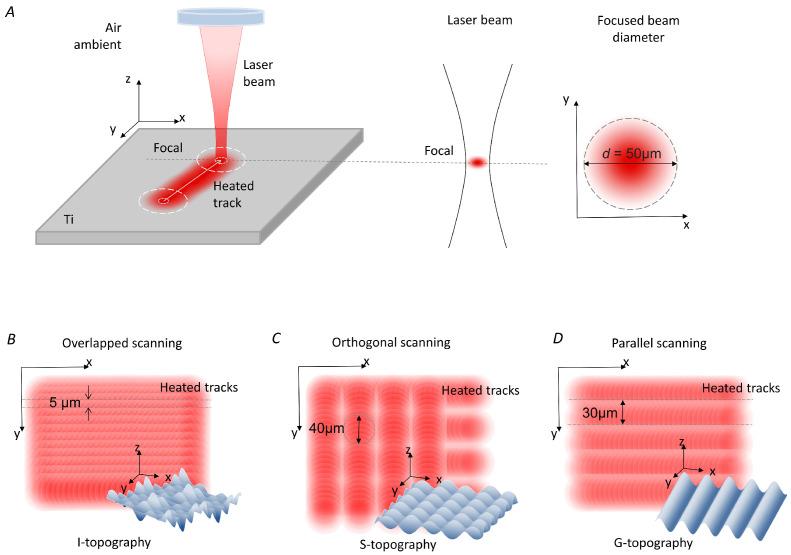

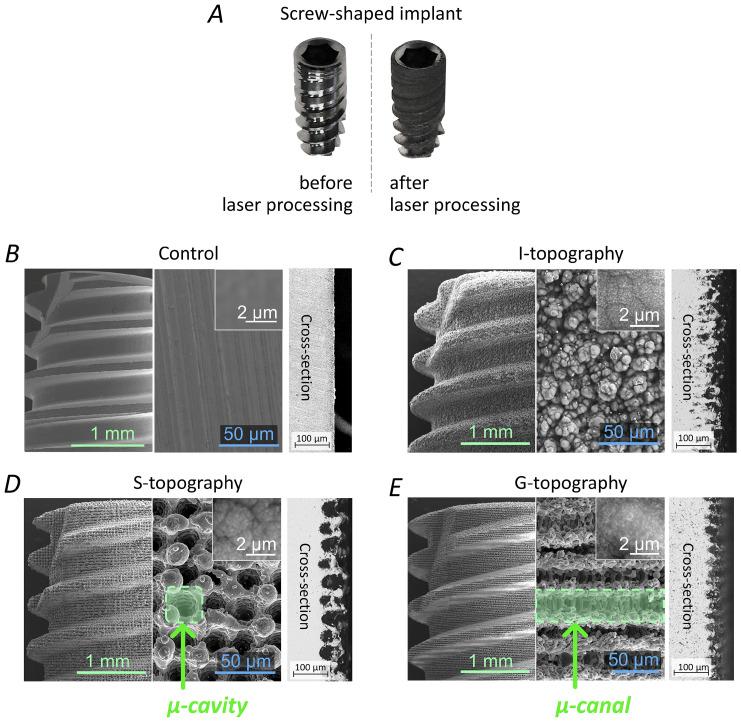

Laser processing of dental implant surfaces is becoming a more widespread replacement for classical techniques due to its undeniable advantages, including control of oxide formation and structure and surface relief at the microscale. Thus, using a laser, we created several biomimetic topographies of various shapes on the surface of titanium screw-shaped implants to research their success and survival rates. A distinctive feature of the topographies is the presence of "µ-rooms", which are special spaces created by the depressions and elevations and are analogous to the µ-sized room in which the osteocyte will potentially live. We conducted the comparable in vivo study using dental implants with continuous (G-topography with µ-canals), discrete (S-topography with μ-cavities), and irregular (I-topography) laser-induced topographies. A histological analysis performed with the statistical method (with p-value less than 0.05) was conducted, which showed that G-topography had the highest BIC parameter and contained the highest number of mature osteocytes, indicating the best secondary stability and osseointegration.
由于具有不可否认的优势,包括对氧化物形成、结构以及微观尺度表面起伏的控制,牙科植入物表面的激光加工正逐渐成为传统技术的一种更广泛的替代方法。因此,我们使用激光在钛制螺旋形植入物表面创建了几种不同形状的仿生形貌,以研究它们的成功率和存活率。这些形貌的一个显著特征是存在“µ室”,它们是由凹陷和凸起形成的特殊空间,类似于骨细胞可能居住的µ大小的空间。我们使用具有连续(带µ管的G形貌)、离散(带µ腔的S形貌)和不规则(I形貌)激光诱导形貌的牙科植入物进行了可比的体内研究。采用统计学方法(p值小于0.05)进行了组织学分析,结果表明G形貌具有最高的骨结合(BIC)参数,并且含有最多数量的成熟骨细胞,表明其具有最佳的二级稳定性和骨整合。
