Andrade Raquel G D, Ferreira Débora, Veloso Sérgio R S, Santos-Pereira Cátia, Castanheira Elisabete M S, Côrte-Real Manuela, Rodrigues Ligia R
Physics Centre of Minho and Porto Universities (CF-UM-UP), University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal.
LaPMET (Laboratory of Physics for Materials and Emergent Technologies), Associate Laboratory, 4710-057 Braga, Portugal.
Pharmaceutics. 2022 Dec 1;14(12):2694. doi: 10.3390/pharmaceutics14122694.

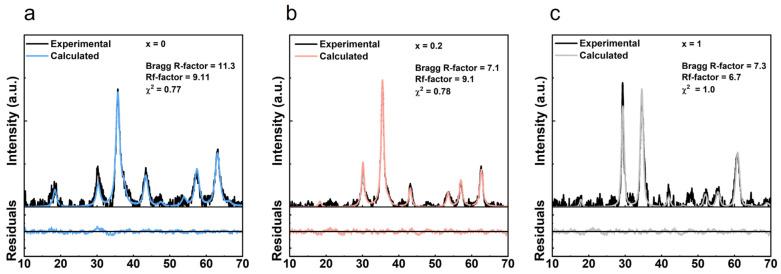

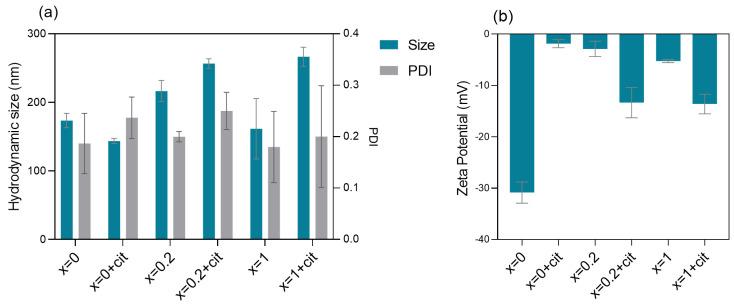

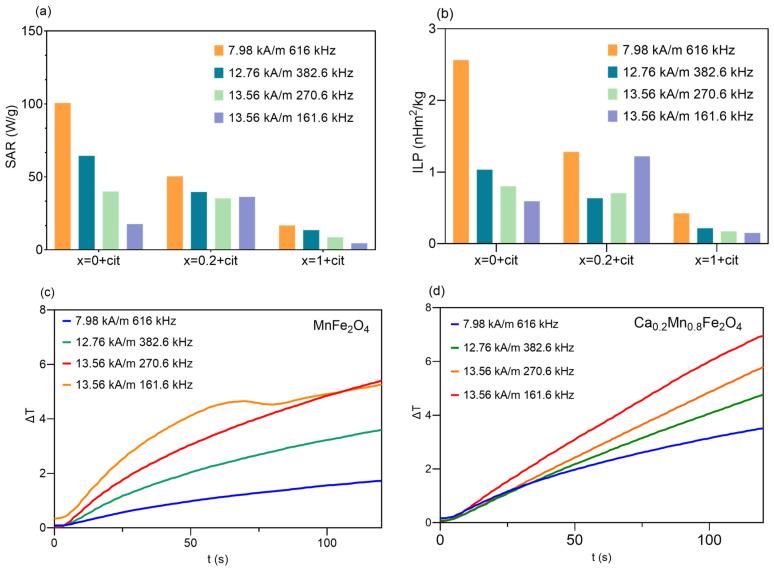

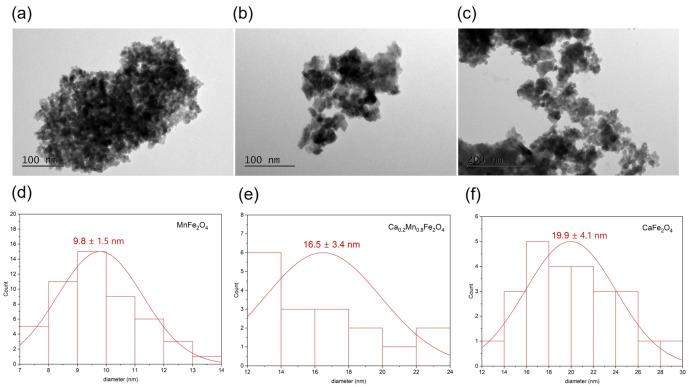

Calcium-doped manganese ferrite nanoparticles (NPs) are gaining special interest in the biomedical field due to their lower cytotoxicity compared with other ferrites, and the fact that they have improved magnetic properties. Magnetic hyperthermia (MH) is an alternative cancer treatment, in which magnetic nanoparticles promote local heating that can lead to the apoptosis of cancer cells. In this work, manganese/calcium ferrite NPs coated with citrate (CaMnFeO ( = 0, 0.2, 1), were synthesized by the sol-gel method, followed by calcination, and then characterized regarding their crystalline structure (by X-ray diffraction, XRD), size and shape (by Transmission Electron Microscopy, TEM), hydrodynamic size and zeta potential (by Dynamic Light Scattering, DLS), and heating efficiency (measuring the Specific Absorption Rate, SAR, and Intrinsic Loss Power, ILP) under an alternating magnetic field. The obtained NPs showed a particle size within the range of 10 nm to 20 nm (by TEM) with a spherical or cubic shape. CaMnFeO NPs exhibited the highest SAR value of 36.3 W/g at the lowest field frequency tested, and achieved a temperature variation of ~7 °C in 120 s, meaning that these NPs are suitable magnetic hyperthermia agents. In vitro cellular internalization and cytotoxicity experiments, performed using the human cell line HEK 293T, confirmed cytocompatibility over 0-250 µg/mL range and successful internalization after 24 h. Based on these studies, our data suggest that these manganese-calcium ferrite NPs have potential for MH application and further use in in vivo systems.

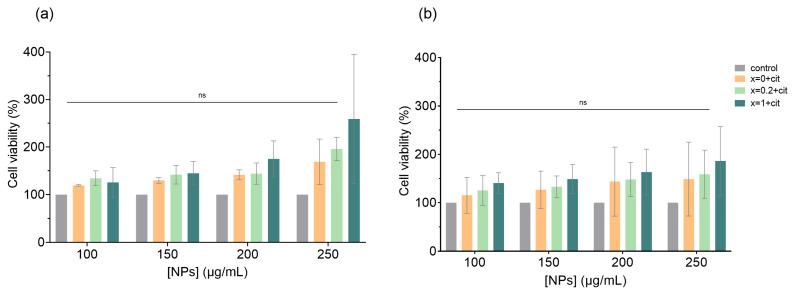

钙掺杂锰铁氧体纳米颗粒(NPs)因其与其他铁氧体相比具有较低的细胞毒性以及具有改善的磁性,在生物医学领域正受到特别关注。磁热疗(MH)是一种替代癌症治疗方法,其中磁性纳米颗粒促进局部加热,可导致癌细胞凋亡。在这项工作中,通过溶胶 - 凝胶法合成了包覆柠檬酸盐的锰/钙铁氧体NPs(CaMnFeO ( = 0, 0.2, 1)),随后进行煅烧,然后通过X射线衍射(XRD)表征其晶体结构,通过透射电子显微镜(TEM)表征其尺寸和形状,通过动态光散射(DLS)表征其流体动力学尺寸和zeta电位,并在交变磁场下测量比吸收率(SAR)和固有损耗功率(ILP)以表征其加热效率。所获得的NPs通过TEM显示粒径在10nm至20nm范围内,形状为球形或立方体形。CaMnFeO NPs在测试的最低场频率下表现出最高SAR值36.3W/g,并在120s内实现了约7°C的温度变化,这意味着这些NPs是合适的磁热疗剂。使用人细胞系HEK 293T进行的体外细胞内化和细胞毒性实验证实了在0 - 250μg/mL范围内的细胞相容性以及24小时后成功内化。基于这些研究,我们的数据表明这些锰 - 钙铁氧体NPs具有磁热疗应用潜力,并可在体内系统中进一步使用。
