Park Jun-Hyeong, Park Won, Na Jeong-Hyeon, Lee Jinuk, Eun Jun-Su, Feng Junhao, Kim Do-Kyung, Bae Jin-Hyuk
School of Electronic and Electrical Engineering, Kyungpook National University, Daegu 41566, Republic of Korea.
Nanomaterials (Basel). 2023 Sep 16;13(18):2568. doi: 10.3390/nano13182568.

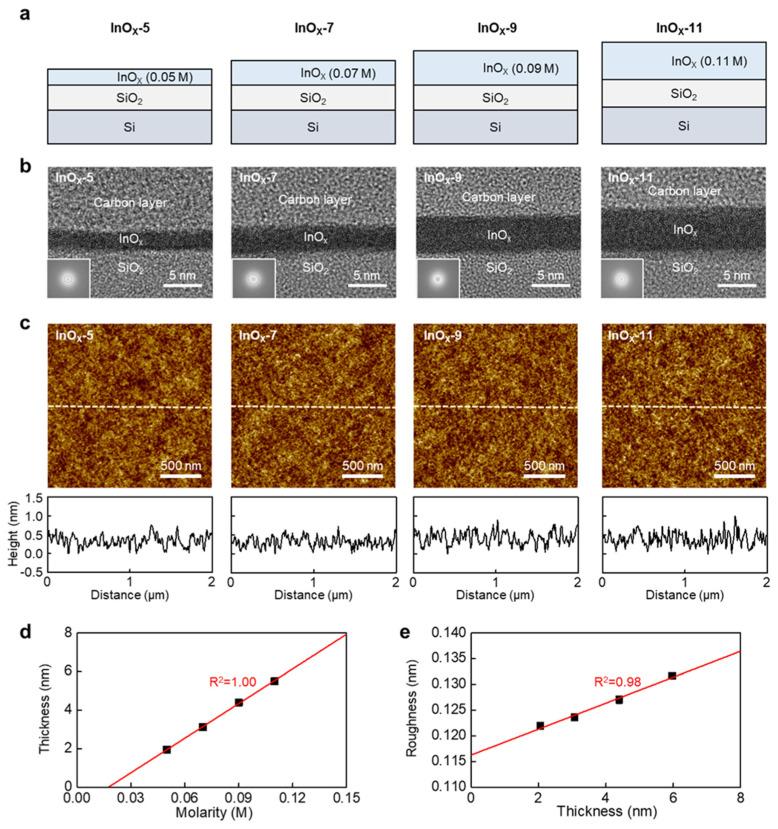

High-performance oxide transistors have recently attracted significant attention for use in various electronic applications, such as displays, sensors, and back-end-of-line transistors. In this study, we demonstrate atomically thin indium-oxide (InO) semiconductors using a solution process for high-performance thin-film transistors (TFTs). To achieve superior field-effect mobility and switching characteristics in TFTs, the bandgap and thickness of the InO were tuned by controlling the InO solution molarity. As a result, a high field-effect mobility and on/off-current ratio of 13.95 cm V s and 1.42 × 10, respectively, were achieved using 3.12-nanometer-thick InO. Our results showed that the charge transport of optimized InO with a thickness of 3.12 nm is dominated by percolation conduction due to its low surface roughness and appropriate carrier concentration. Furthermore, the atomically thin InO TFTs showed superior positive and negative gate bias stress stabilities, which are important in electronic applications. The proposed oxide TFTs could provide an effective means of the fabrication of scalable, high-throughput, and high-performance transistors for next-generation electronic applications.
高性能氧化物晶体管最近在各种电子应用中受到了广泛关注,如显示器、传感器和后端晶体管。在本研究中,我们展示了一种采用溶液法制备的用于高性能薄膜晶体管(TFT)的原子级超薄氧化铟(InO)半导体。为了在TFT中实现卓越的场效应迁移率和开关特性,通过控制InO溶液的摩尔浓度来调节InO的带隙和厚度。结果,使用3.12纳米厚的InO实现了13.95 cm² V⁻¹ s⁻¹的高场效应迁移率和1.42×10⁷的开/关电流比。我们的结果表明,厚度为3.12 nm的优化InO的电荷传输主要由渗流传导主导,这归因于其低表面粗糙度和合适的载流子浓度。此外,原子级超薄InO TFT表现出优异的正、负栅极偏置应力稳定性,这在电子应用中非常重要。所提出的氧化物TFT可为下一代电子应用制造可扩展、高通量和高性能晶体管提供一种有效方法。
