Toward Ideal Low-Frequency Noise in Monolayer CVD MoS FETs: Influence of van der Waals Junctions and Sulfur Vacancy Management.

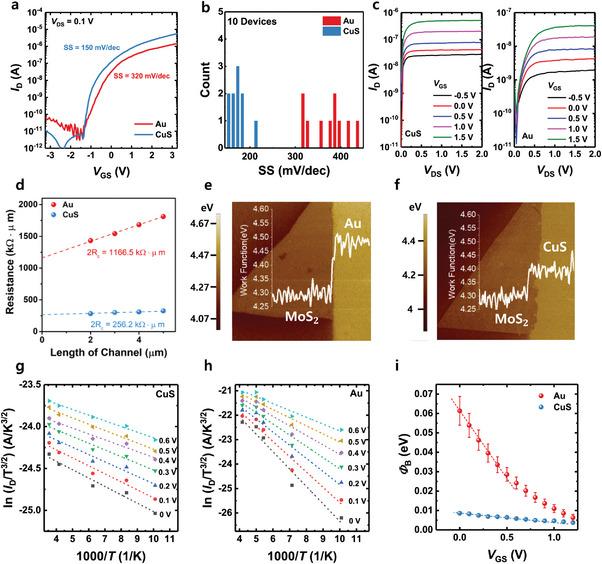

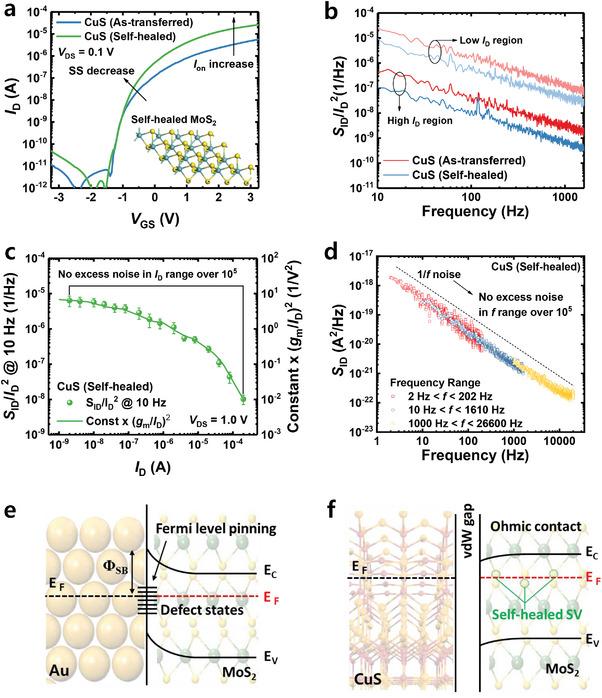

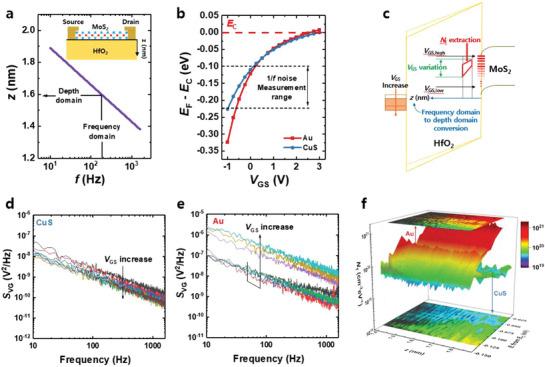

The pursuit of sub-1-nm field-effect transistor (FET) channels within 3D semiconducting crystals faces challenges due to diminished gate electrostatics and increased charge carrier scattering. 2D semiconductors, exemplified by transition metal dichalcogenides, provide a promising alternative. However, the non-idealities, such as excess low-frequency noise (LFN) in 2D FETs, present substantial hurdles to their realization and commercialization. In this study, ideal LFN characteristics in monolayer MoS FETs are attained by engineering the metal-2D semiconductor contact and the subgap density of states (DOS). By probing non-ideal contact resistance effects using CuS and Au electrodes, it is uncovered that excess contact noise in the high drain current (I) region can be substantially reduced by forming a van der Waals junction with CuS electrodes. Furthermore, thermal annealing effectively mitigates sulfur vacancy-induced subgap density of states (DOS), diminishing excess noise in the low I region. Through meticulous optimization of metal-2D semiconductor contacts and subgap DOS, alignment of 1/f noise with the pure carrier number fluctuation model is achieved, ultimately achieving the sought-after ideal LFN behavior in monolayer MoS FETs. This study underscores the necessity of refining excess noise, heralding improved performance and reliability of 2D electronic devices.
