Imaging Research Laboratories, Robarts Research Institute; and.
Department of Medical Biophysics, University of Western Ontario, London, ON, Canada.
Tomography. 2020 Dec;6(4):315-324. doi: 10.18383/j.tom.2020.00043.

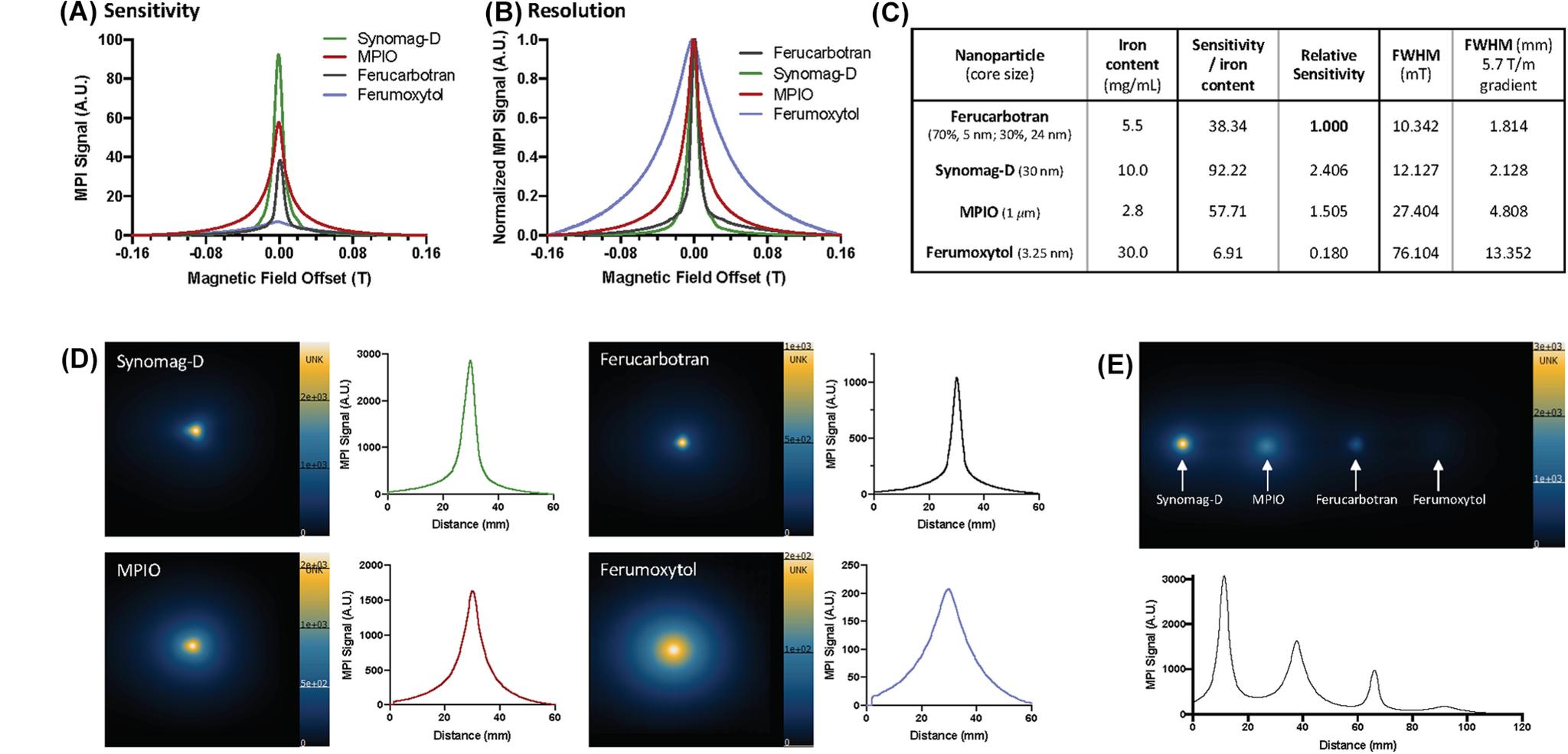

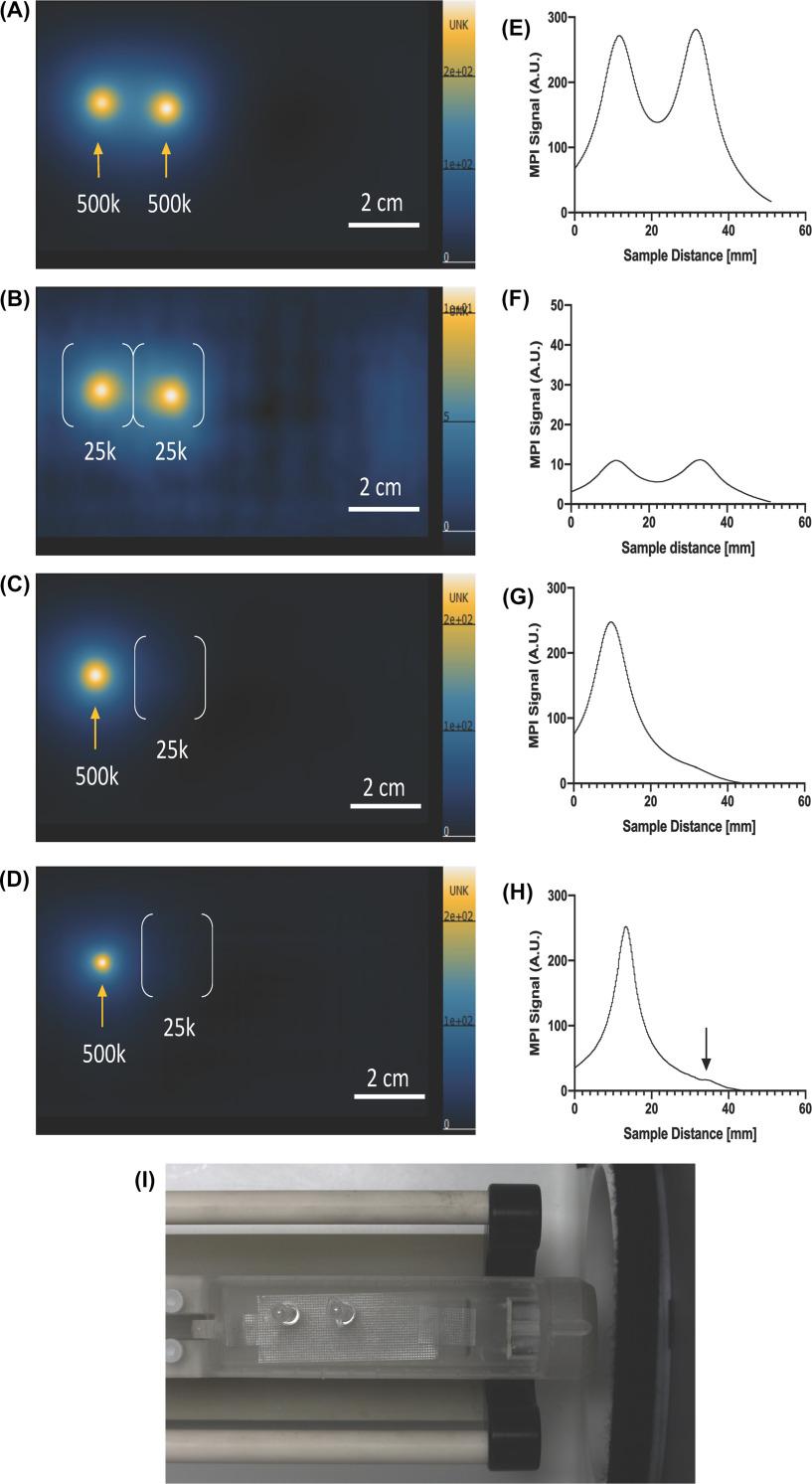

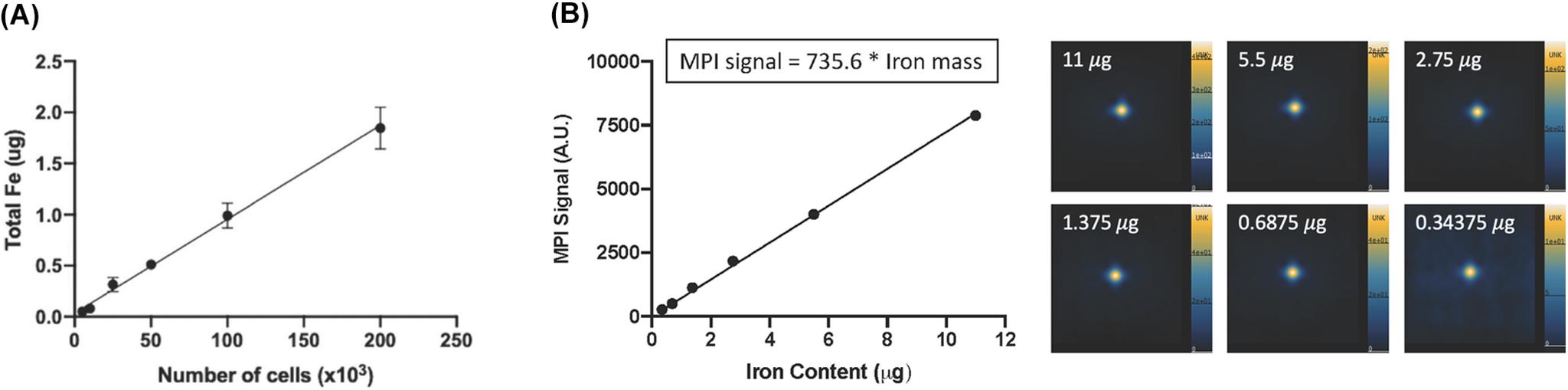

Many labs have been developing cellular magnetic resonance imaging (MRI), using both superparamagnetic iron oxide nanoparticles (SPIONs) and fluorine-19 (F)-based cell labels, to track immune and stem cells used for cellular therapies. Although SPION-based MRI cell tracking has very high sensitivity for cell detection, SPIONs are indirectly detected owing to relaxation effects on protons, producing negative magnetic resonance contrast with low signal specificity. Therefore, it is not possible to reliably quantify the local tissue concentration of SPION particles, and cell number cannot be determined. F-based cell tracking has high specificity for perfluorocarbon-labeled cells, and F signal is directly related to cell number. However, F MRI has low sensitivity. Magnetic particle imaging (MPI) is a new imaging modality that directly detects SPIONs. SPION-based cell tracking using MPI displays great potential for overcoming the challenges of MRI-based cell tracking, allowing for both high cellular sensitivity and specificity, and quantification of SPION-labeled cell number. Here we describe nanoparticle and MPI system factors that influence MPI sensitivity and resolution, quantification methods, and give our perspective on testing and applying MPI for cell tracking.
许多实验室一直在开发细胞磁共振成像(MRI),使用超顺磁氧化铁纳米粒子(SPIONs)和氟-19(F)基细胞标签来跟踪用于细胞治疗的免疫细胞和干细胞。尽管基于 SPION 的 MRI 细胞跟踪对细胞检测具有非常高的灵敏度,但由于质子弛豫效应,SPIONs 是间接检测到的,产生具有低信号特异性的负磁共振对比。因此,无法可靠地量化 SPION 颗粒的局部组织浓度,也无法确定细胞数量。F 基细胞跟踪对全氟碳标记细胞具有高特异性,并且 F 信号与细胞数量直接相关。然而,F MRI 的灵敏度较低。磁性粒子成像(MPI)是一种直接检测 SPION 的新成像方式。基于 MPI 的 SPION 细胞跟踪显示出克服 MRI 细胞跟踪挑战的巨大潜力,允许高细胞灵敏度和特异性,以及量化 SPION 标记的细胞数量。在这里,我们描述了影响 MPI 灵敏度和分辨率的纳米粒子和 MPI 系统因素、量化方法,并对 MPI 用于细胞跟踪的测试和应用提出了我们的看法。
