MRI-based brain tumor detection using convolutional deep learning methods and chosen machine learning techniques.

BACKGROUND

Detecting brain tumors in their early stages is crucial. Brain tumors are classified by biopsy, which can only be performed through definitive brain surgery. Computational intelligence-oriented techniques can help physicians identify and classify brain tumors. Herein, we proposed two deep learning methods and several machine learning approaches for diagnosing three types of tumor, i.e., glioma, meningioma, and pituitary gland tumors, as well as healthy brains without tumors, using magnetic resonance brain images to enable physicians to detect with high accuracy tumors in early stages.

MATERIALS AND METHODS

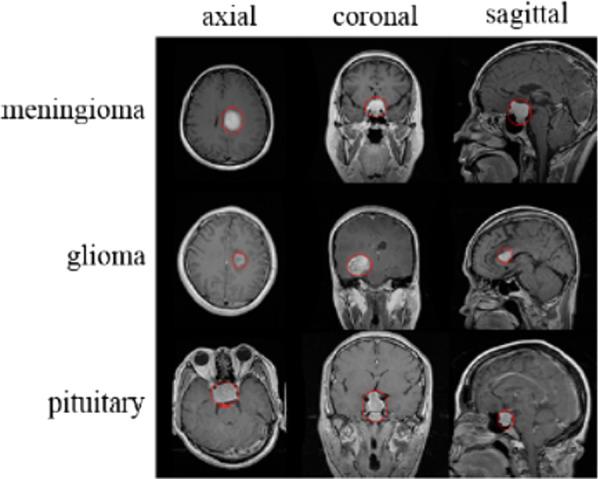

A dataset containing 3264 Magnetic Resonance Imaging (MRI) brain images comprising images of glioma, meningioma, pituitary gland tumors, and healthy brains were used in this study. First, preprocessing and augmentation algorithms were applied to MRI brain images. Next, we developed a new 2D Convolutional Neural Network (CNN) and a convolutional auto-encoder network, both of which were already trained by our assigned hyperparameters. Then 2D CNN includes several convolution layers; all layers in this hierarchical network have a 2*2 kernel function. This network consists of eight convolutional and four pooling layers, and after all convolution layers, batch-normalization layers were applied. The modified auto-encoder network includes a convolutional auto-encoder network and a convolutional network for classification that uses the last output encoder layer of the first part. Furthermore, six machine-learning techniques that were applied to classify brain tumors were also compared in this study.

RESULTS

The training accuracy of the proposed 2D CNN and that of the proposed auto-encoder network were found to be 96.47% and 95.63%, respectively. The average recall values for the 2D CNN and auto-encoder networks were 95% and 94%, respectively. The areas under the ROC curve for both networks were 0.99 or 1. Among applied machine learning methods, Multilayer Perceptron (MLP) (28%) and K-Nearest Neighbors (KNN) (86%) achieved the lowest and highest accuracy rates, respectively. Statistical tests showed a significant difference between the means of the two methods developed in this study and several machine learning methods (p-value < 0.05).

CONCLUSION

The present study shows that the proposed 2D CNN has optimal accuracy in classifying brain tumors. Comparing the performance of various CNNs and machine learning methods in diagnosing three types of brain tumors revealed that the 2D CNN achieved exemplary performance and optimal execution time without latency. This proposed network is less complex than the auto-encoder network and can be employed by radiologists and physicians in clinical systems for brain tumor detection.
