用于诊疗应用的硅铁复合纳米颗粒的激光烧蚀合成

Laser-Ablative Synthesis of Silicon-Iron Composite Nanoparticles for Theranostic Applications.

作者信息

Bubnov Alexander A, Belov Vladimir S, Kargina Yulia V, Tikhonowski Gleb V, Popov Anton A, Kharin Alexander Yu, Shestakov Mikhail V, Perepukhov Alexander M, Syuy Alexander V, Volkov Valentyn S, Khovaylo Vladimir V, Klimentov Sergey M, Kabashin Andrei V, Timoshenko Victor Yu

机构信息

Institute of Engineering Physics for Biomedicine (PhysBio), National Nuclear Research University MEPhI, 115409 Moscow, Russia.

Endocrinology Research Centre, Dmitry Ulyanov Street 11, 292236 Moscow, Russia.

出版信息

Nanomaterials (Basel). 2023 Aug 5;13(15):2256. doi: 10.3390/nano13152256.


DOI:10.3390/nano13152256
PMID:37570573
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC10421319/
Abstract

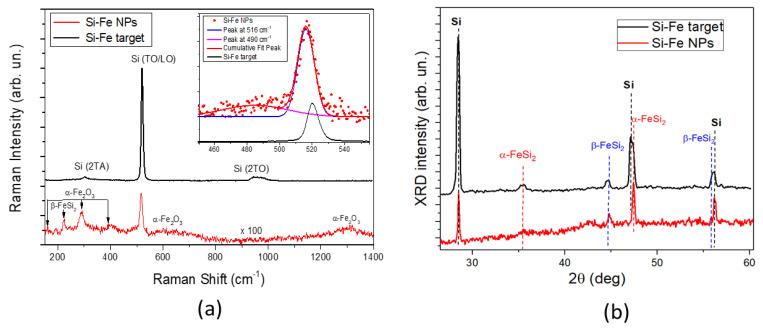

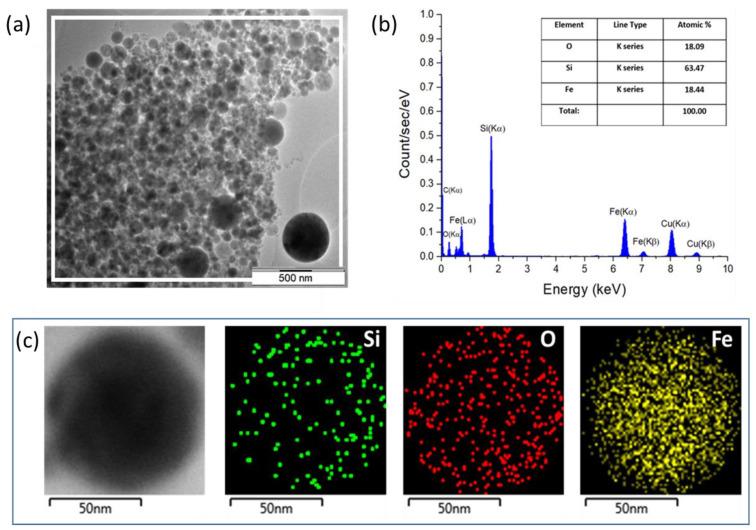

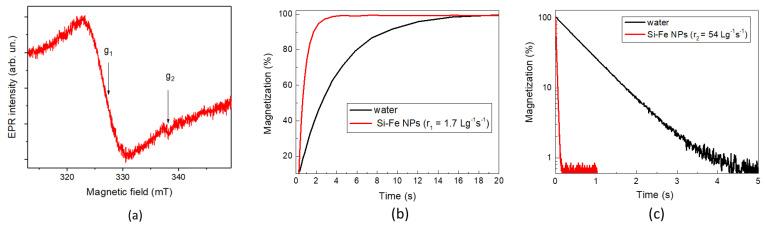

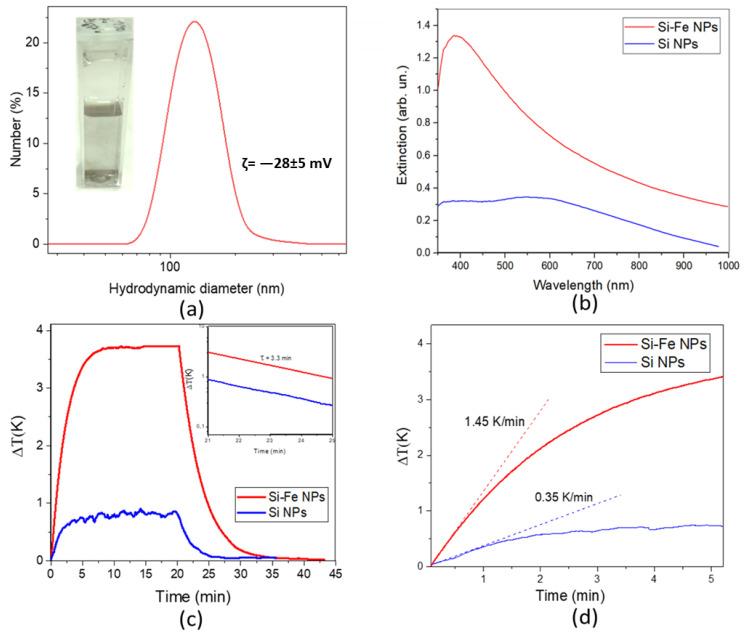

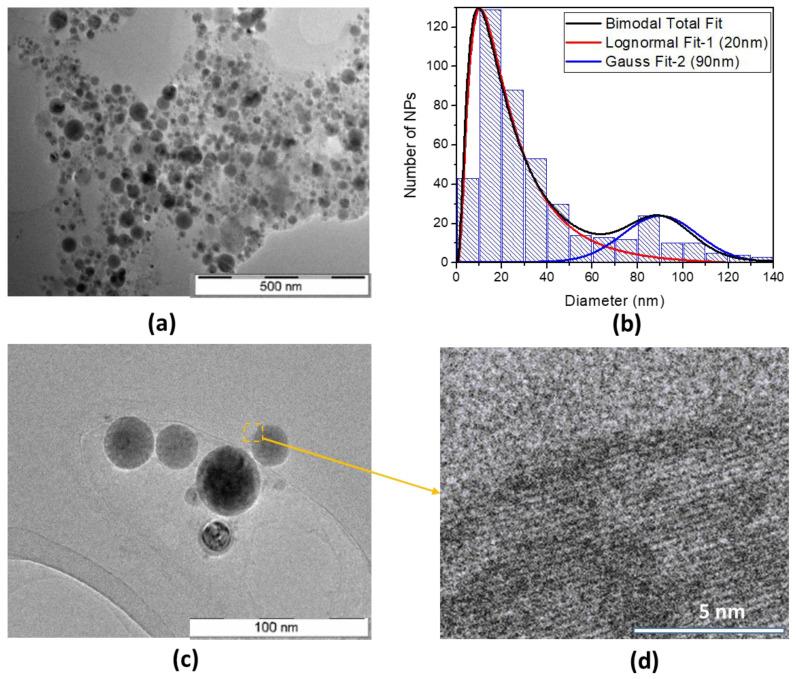

The combination of photothermal and magnetic functionalities in one biocompatible nanoformulation forms an attractive basis for developing multifunctional agents for biomedical theranostics. Here, we report the fabrication of silicon-iron (Si-Fe) composite nanoparticles (NPs) for theranostic applications by using a method of femtosecond laser ablation in acetone from a mixed target combining silicon and iron. The NPs were then transferred to water for subsequent biological use. From structural analyses, it was shown that the formed Si-Fe NPs have a spherical shape and sizes ranging from 5 to 150 nm, with the presence of two characteristic maxima around 20 nm and 90 nm in the size distribution. They are mostly composed of silicon with the presence of a significant iron silicide content and iron oxide inclusions. Our studies also show that the NPs exhibit magnetic properties due to the presence of iron ions in their composition, which makes the formation of contrast in magnetic resonance imaging (MRI) possible, as it is verified by magnetic resonance relaxometry at the proton resonance frequency. In addition, the Si-Fe NPs are characterized by strong optical absorption in the window of relative transparency of bio-tissue (650-950 nm). Benefiting from such absorption, the Si-Fe NPs provide strong photoheating in their aqueous suspensions under continuous wave laser excitation at 808 nm. The NP-induced photoheating is described by a photothermal conversion efficiency of 33-42%, which is approximately 3.0-3.3 times larger than that for pure laser-synthesized Si NPs, and it is explained by the presence of iron silicide in the NP composition. Combining the strong photothermal effect and MRI functionality, the synthesized Si-Fe NPs promise a major advancement of modalities for cancer theranostics, including MRI-guided photothermal therapy and surgery.

摘要

在一种生物相容性纳米制剂中结合光热和磁功能,为开发用于生物医学治疗诊断的多功能试剂奠定了有吸引力的基础。在此,我们报告了通过飞秒激光在丙酮中对由硅和铁组成的混合靶材进行烧蚀的方法,制备用于治疗诊断应用的硅铁(Si-Fe)复合纳米颗粒(NPs)。然后将这些纳米颗粒转移到水中以便后续用于生物学研究。结构分析表明,所形成的Si-Fe纳米颗粒呈球形,尺寸范围为5至150纳米,在尺寸分布中存在两个特征最大值,分别在20纳米和90纳米左右。它们主要由硅组成,含有大量的硅化铁成分和氧化铁夹杂物。我们的研究还表明,由于其组成中存在铁离子,这些纳米颗粒具有磁性,这使得在磁共振成像(MRI)中形成对比度成为可能,质子共振频率下的磁共振弛豫测量证实了这一点。此外,Si-Fe纳米颗粒在生物组织相对透明的窗口(650 - 950纳米)具有强烈的光吸收特性。得益于这种吸收,Si-Fe纳米颗粒在808纳米连续波激光激发下,在其水悬浮液中提供强烈的光热效应。纳米颗粒诱导的光热效应由33% - 42%的光热转换效率来描述,这比纯激光合成的硅纳米颗粒的光热转换效率大约高3.0 - 3.3倍,这可以通过纳米颗粒组成中存在硅化铁来解释。结合强大的光热效应和MRI功能,合成的Si-Fe纳米颗粒有望在癌症治疗诊断方式上取得重大进展,包括MRI引导的光热疗法和手术。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/e2f3be6d6f1e/nanomaterials-13-02256-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/f527e91d4991/nanomaterials-13-02256-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/d024ee9a1249/nanomaterials-13-02256-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/6cfe1e5c618e/nanomaterials-13-02256-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/bde355927dc8/nanomaterials-13-02256-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/e2f3be6d6f1e/nanomaterials-13-02256-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/f527e91d4991/nanomaterials-13-02256-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/d024ee9a1249/nanomaterials-13-02256-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/6cfe1e5c618e/nanomaterials-13-02256-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/bde355927dc8/nanomaterials-13-02256-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e8d7/10421319/e2f3be6d6f1e/nanomaterials-13-02256-g005.jpg
