Institute of Macromolecular Chemistry, Czech Academy of Sciences, Heyrovského nám. 2, 162 06, Prague 6, Czech Republic.
Center of Advanced Preclinical Imaging, First Faculty of Medicine, Charles University, Salmovská 3, 120 00, Prague 2, Czech Republic.
Sci Rep. 2019 Jul 24;9(1):10765. doi: 10.1038/s41598-019-47262-w.

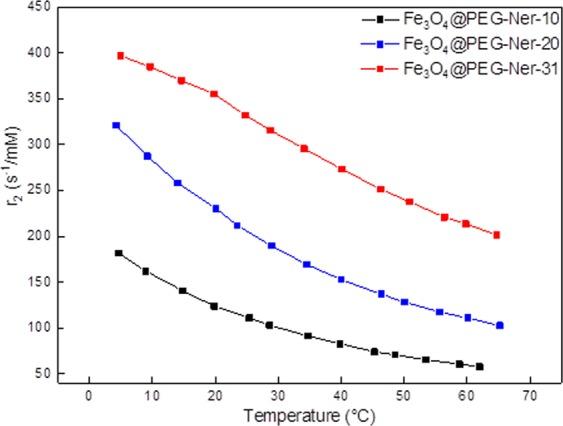

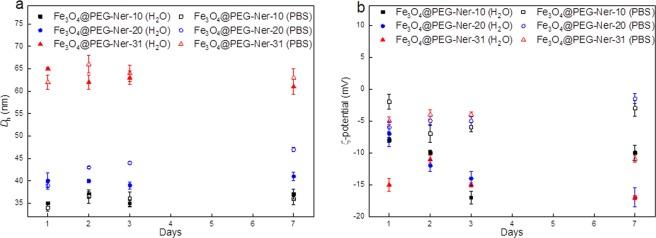

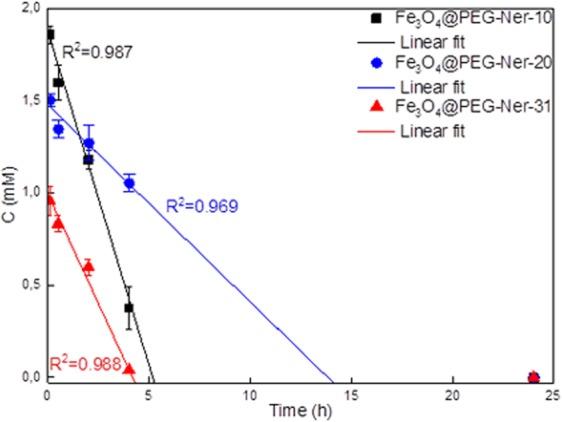

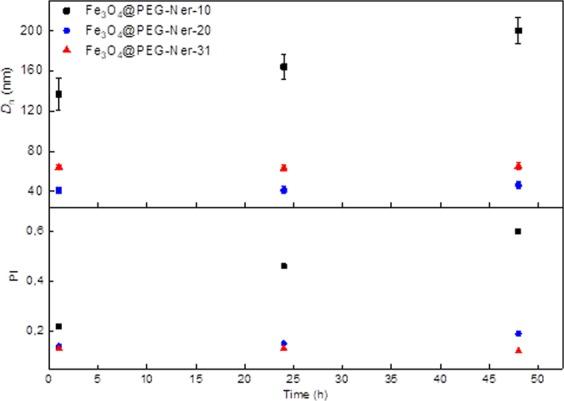

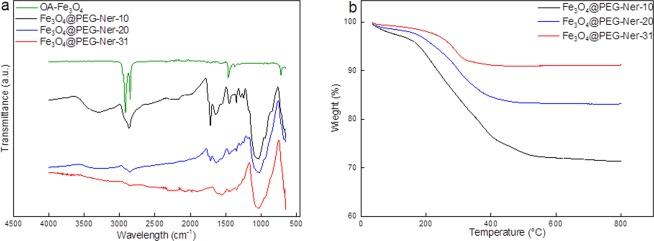

Magnetite (FeO) nanoparticles with uniform sizes of 10, 20, and 31 nm were prepared by thermal decomposition of Fe(III) oleate or mandelate in a high-boiling point solvent (>320 °C). To render the particles with hydrophilic and antifouling properties, their surface was coated with a PEG-containing bisphosphonate anchoring group. The PEGylated particles were characterized by a range of physicochemical methods, including dynamic light scattering, transmission electron microscopy, thermogravimetric analysis, Fourier transform infrared spectroscopy, and magnetization measurements. As the particle size increased from 10 to 31 nm, the amount of PEG coating decreased from 28.5 to 9 wt.%. The PEG formed a dense brush-like shell on the particle surface, which prevented particles from aggregating in water and PBS (pH 7.4) and maximized the circulation time in vivo. Magnetic resonance relaxometry confirmed that the PEG-modified FeO nanoparticles had high relaxivity, which increased with increasing particle size. In the in vivo experiments in a mouse model, the particles provided visible contrast enhancement in the magnetic resonance images. Almost 70% of administrated 20-nm magnetic nanoparticles still circulated in the blood stream after four hours; however, their retention in the tumor was rather low, which was likely due to the antifouling properties of PEG.
通过热分解油酸铁或扁桃酸铁在高沸点溶剂(>320°C)中制备了具有均匀尺寸为 10、20 和 31nm 的磁铁矿(FeO)纳米粒子。为了使颗粒具有亲水性和抗污性,其表面涂覆了含有 PEG 的双膦酸酯锚固基团。通过一系列物理化学方法对 PEG 化颗粒进行了表征,包括动态光散射、透射电子显微镜、热重分析、傅里叶变换红外光谱和磁化测量。随着粒径从 10nm 增加到 31nm,PEG 的涂覆量从 28.5wt%减少到 9wt%。PEG 在颗粒表面形成了致密的刷状壳,防止颗粒在水中和 PBS(pH7.4)中聚集,并使体内循环时间最大化。磁共振弛豫测量证实,PEG 修饰的 FeO 纳米颗粒具有高弛豫率,其随粒径的增加而增加。在小鼠模型的体内实验中,这些颗粒在磁共振图像中提供了可见的对比增强。在四个小时后,给药的 20nm 磁性纳米颗粒中仍有近 70%在血流中循环;然而,它们在肿瘤中的保留率相当低,这可能是由于 PEG 的抗污性。
